Conveyor Belt Food Security Metal Detector , New Design Metal Detectors For Textile Industry​

Accurate And Reliable Metal Detection

Precise Detection, Even At Maximum Throughput

Simple To Install And Use

Accommodates Quick Product Changes

Suitable For Packs Made From Non-Metal Materials And Metal Materials Too (Aluminum Foil)

Easy To Clean And Maintain

SALIENT FEATURES :

Detecting Theory : Balance Coil / Electromagnetic Induction

Aperture/Tunnel Size Options : 150~1500mm (W) x 100~600mm (H)

Conveyor Belt Size Options :80~1450mm (W) x 500~2000mm (L)

MOC Options : SS 316, SS 30 4, MS Powder Coated or Aluminium; Non-metallic Parts made from Polypropylene (Food Grade)

Rejection Options : Belt Stop, Air Jet, Pusher, Falling Drop, Belt Compress, Down Flap

SHANAN is one of the leading manufacturers and exporters of ALL Types of Industrial Metal Detectors extensively used in Varied Manufacturing Industries including the Food, Pharmaceutical, Beverage, Dairy, Spices, Chemical, FMCG, Cement and Textiles Industries worldwide. Our Systems are suitable for All Dry, Wet, Frozen, Hot & High Moisture Content Products.

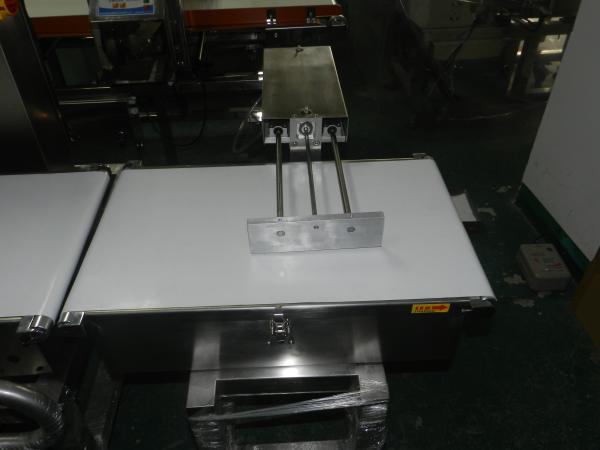

SHANAN Conveyor Metal Detectors (VCB Series) detect metal contaminants accidently present in any product on a Conveyor line and reject the faulty product. Our Metal Detectors detects all Ferrous and Non-Ferrous metals including Stainless Steel. An automatic Phase Angle function cancels out any variation in product effect caused by the product under inspection.

BENEFITS OF vfinderCONVEYOR METAL DETECTORS:

What are the considerations for purchasing a metal detector?

1. Decide what types of metal you need to detect. There are two main categories of metal: ferrous and non-ferrous. Ferrous metals are derived from iron or contain iron. Non-ferrous metals are all others. Take a careful inventory of the types of metal in your operation that could possibly end up in your products.

2. What sizes of metal contaminants do you need to screen for? You need to be practical and realistic with this question because if you specify too much sensitivity, you will get too many false alarms and vice versa.

3. Know the operating environment and the product characteristics – The operating environment includes the temperature and whether water, dust, or chemicals could come in contact with your metal detector, as well as possible electrical fields. Additionally, is the product fresh or frozen, packaged or exposed, scanned individually or in a case? All of these factors will go into the design of a metal detector that will fit your needs the best.

4. Reject System considerations – Most commonly, a pusher or an air blast is used to divert products where metal has been detected. However, you could save space by having the conveyor belt stopped and a warning light activated. Additionally, an optional Lockable Collecting Container prevents unauthorized employees from gaining access to rejected product.

Our Service

24 Hour after- sales service

12 months warranty

Professional technical guidance

Lifelong technical support

Company Introduction

Guangdong Shanan Technology Co., Ltd. ls speciaizing in metal testing equipment, weight testing equipment, X-ray foreign objecttesting equipment, clothing toys, footwear industny needle detection equipment, security X-ray machine, security door, explosivedetector, explosion-proof tank, High-tech companies that provide liquidation detectors, vehicle bottom detectors, vehicle inspectionmirors, metal detectors, and other products for the development, production, and sales of imported inspection equipmentand services. With extensive experience in the industry's melal impurity removal and public safety scope testing, we can provide publicsafety inspeclions for high-end demanders from professional manufaclurers of Manzhu. The United States Shanan Technology GroupCo., Ltd., has Guangdong Shanan Technology Co. td, and Guangdong Haiman Testing Equipment Co., Ltd., Tailor-made solutions foicustomers. ihrough vears of meliculous service and inteonly manacement, as wel as ciose and fiendlv cooperalion with acenis, wehave established a good reputation in the industry. Help customers meet HACCP, FDA and other certificalion requirements and healthstandards to protect customer brand imaae and improve customer productivity and oroduction quality.
