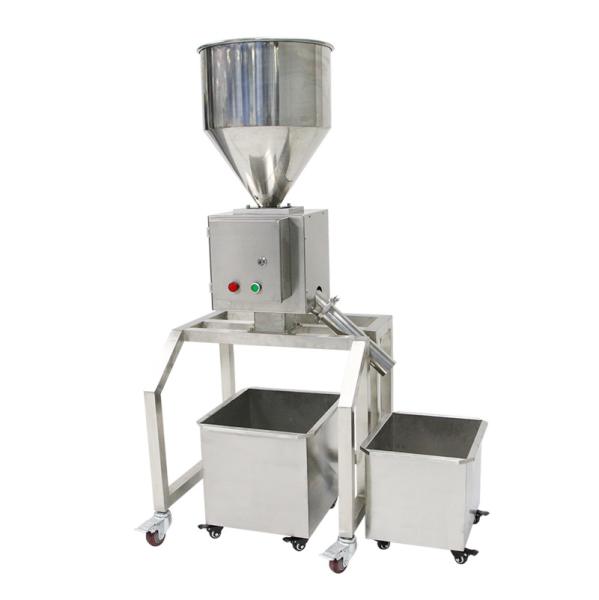

Gravity Free Fall Metal Separator Machines For all industry

About Shanan.pdf

Brief information :

Gravity Free-Fall Style Metal Separators automatically detect all ferrous and non-ferrous metals without process interruptions by separating contaminated materials from product flow. For HACCP safety, when detecting metal in any free-falling product.

Mainly features:

• Full SUS 304 built structure
• Upright feed structure .automatic free fall
• Can detect the magnetic and non magnetic metals ( for example Ferrous.cooper. Can independent place beside crush machine .all raw materials direct pass through metal separator . Prevent have metal scraps mixed into injection molding machine . Keep protect equipment screw .model tube and so on )
• The operating system uses user-friendly, intelligent design, high-definition 7 inches touch screen, intuitive and convenient. The interface is easy for the staff to operate. The effective information can be obtained without complex operation.
• It has the function of automatic fault detection and prompt, which can effectively eliminate invalid detection.

Control Inner parameter:

• Control unit :Made from Germany Control PC :Germany MEITLE
• The startup electromagnetic valveGermany FESTO
• The actuating cylinder Japan SMC
• Gas filter Jan pan SMC
• Housing material :paint plate
• work voltage :110v -220V Alternating current(+/-10%)(Have voltage switch ),50/60HZ
• input current :80/160ma
• fuse :two 315ma
• work environment :-10/60 degree
• waterproof standard :IP65
• Input device :Test button, manual separation .reset. Pressure detection .
• Output device :counter and metal detect

Machine parameter:

• Operating voltage: 220VAC (+/-10%, 50/60Hz)
• Input current: 80/160Ma
• Ambient temperature: -10/60 ℃
• Case Material: Stainless Steel
• Contact parts with material: PP plastic and PTFE
• Compressed air 4-8Kg,6-8mm hose connection
• Level of protection: IP54
• Detection accuracy: 0-10 adjustable

Reject system:

• Standard layout :Automatic stop by alarm and so on
• Optional :Air blast (Especially for light food, like instant noodle.Small punches.)
• Optional:Push rod(Especially for middle bag,small box.small container and so on)
• Optional :Fall drop(Especially for some grain.nut.granule .and so on unpack products)

Application:

• Food industry
• Medical industry , detecting copper, iron, zinc, stainless steel and all metals.

• Special for plastic industry (Plastic recycling ).

• Special for food granule.candy .chocolate and so on food.

Tips:

• 12month labor and parts full life technical support
• Full machine takes of two layer package
• Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
• All package takes of Strong ploy wooden case that meet different country import standard Installation and use
• When you takes of the package .up the rubber base ,use wheel move it to your work place.
• Then running the machine few hours before use ,No need complex installation .
• The user guide will make in book and Videos for customer reference .

Detect sensitivity :

Company information:

we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
