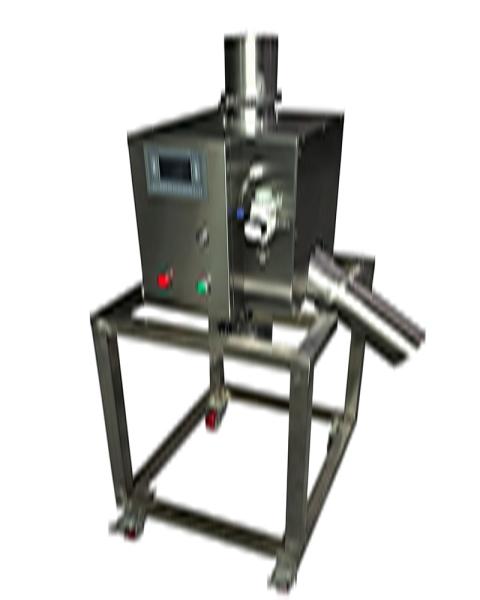

Stainless Steel Gravity Free Metal Detector , Metal Separator For Plastic

About Shanan.pdf

Brief description:

The VMD-3 metal separator was our company newest metal separator can detect all metals .comfort to international standard . can detect is 0.3mm diameter metal ball . Meanwhile it can according to production need adjustment the sensitivity . Micro-computer control.LED indicate . High reaction . High accurate . The machine have a small volume space. Easy operate. Easy installation . It can install connect other equipment direct .Mostly used in food . Plastic .Packing and so on industry

Mainly features:

• Full SUS 304 built structure
• Upright feed structure .automatic free fall
• Can detect the magnetic and non magnetic metals ( for example Ferrous.cooper. Can independent place beside crush machine .all raw materials direct pass through metal separator . Prevent have metal scraps mixed into injection molding machine . Keep protect equipment screw .model tube and so on )
• The operating system uses user-friendly, intelligent design, high-definition 7 inches touch screen, intuitive and convenient. The interface is easy for the staff to operate. The effective information can be obtained without complex operation.
• It has the function of automatic fault detection and prompt, which can effectively eliminate invalid detection.

Control Inner parameter:

• Control unit :Made from Germany Control PC :Germany MEITLE
• The startup electromagnetic valveGermany FESTO
• The actuating cylinder Japan SMC
• Gas filter Jan pan SMC
• Housing material :paint plate
• work voltage :110v -220V Alternating current(+/-10%)(Have voltage switch ),50/60HZ
• input current :80/160ma
• fuse :two 315ma
• work environment :-10/60 degree
• waterproof standard :IP65
• Input device :Test button, manual separation .reset. Pressure detection .
• Output device :counter and metal detect

Machine parameter:

• Compressed air:4-8KG ,6-8mm soft tube connect
• Air consumption :0.4L of every separate action
• Waterproof standard :IP54
• Separate time :0.2-2.5 second ,0-10 grade can adjustment sensitivity

Reject system:

• Standard layout :Automatic stop by alarm and so on
• Optional :Air blast (Especially for light food, like instant noodle.Small punches.)
• Optional:Push rod(Especially for middle bag,small box.small container and so on)
• Optional :Fall drop(Especially for some grain.nut.granule .and so on unpack products)

Application:

• Food industry
• Medical industry

• Special for plastic industry (Plastic recycling )

• Special for food granule.candy .chocolate and so on food

Tips:

• 12month labor and parts full life technical support
• Full machine takes of two layer package
• Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
• All package takes of Strong ploy wooden case that meet different country import standard Installation and use
• When you takes of the package .up the rubber base ,use wheel move it to your work place.
• Then running the machine few hours before use ,No need complex installation .
• The user guide will make in book and Videos for customer reference .

Detect sensitivity :
