Specifications
Brand Name :
SHANAN
Model Number :
SA-700
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
15work days
Packaging Details :
Box
Supply Ability :
100 set/month
Material :
SUS304
Usage :
Metal particles inspections
Applications :
Food, Plastic, Medicine,Powder, Granules, Rice
Detect range :
magnetic and non magnetic materials
tube diameter :
35 50 70 mm optional
Description

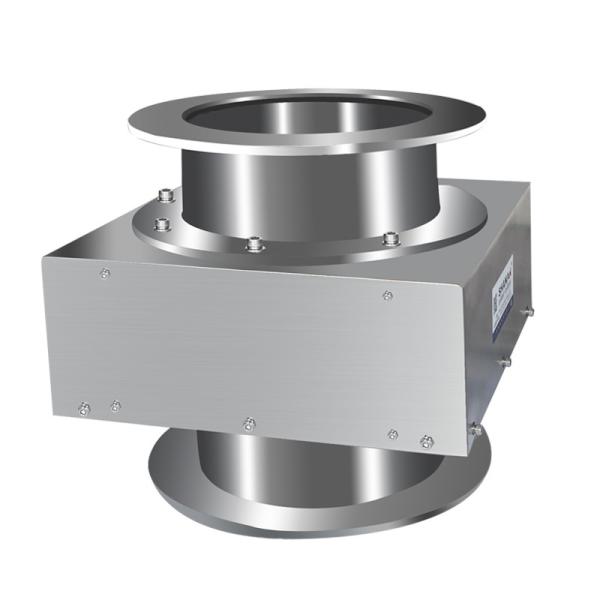

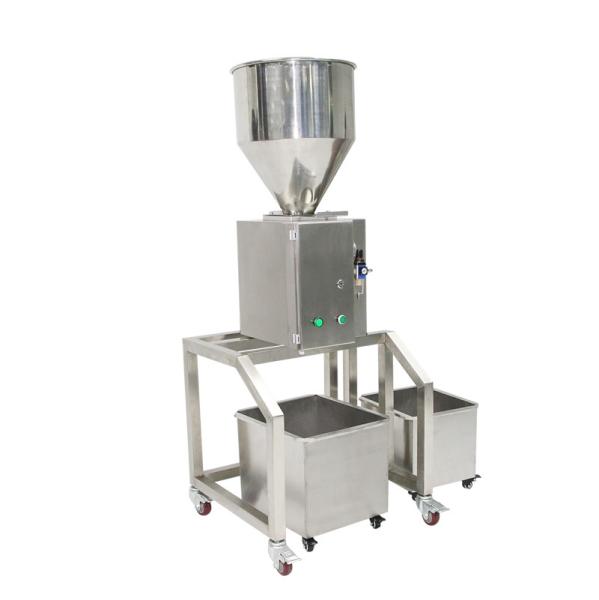

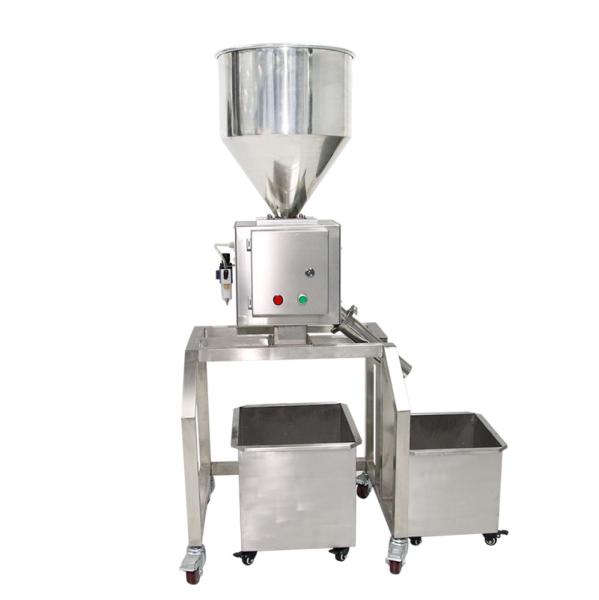

Gravity Metal Separator Machine Factory For Plastic Molding Industry With Feeder

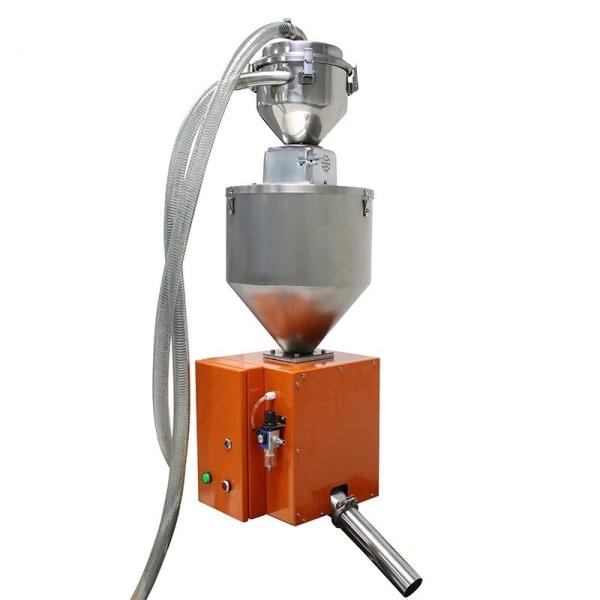

V FINDER metal separator is used for detecting and separating metal contamination that are mixed with plastic raw materials, including magnetic metal or non-magnetic metal ( such as copper,aluminum and stainless steel etc.). Since metal may mix with the old waste materials in the process of recycling, which eventually will cause production accidents, increase the times of maintenance and repair. Those problems finally will raise the cost and affect production efficiency. Compared with human feeding, vacuum feeding machine can automatically feed, thus can save labor cost, and it suits for customers with big production requirements. Besides, this product has good quality, a strong suction and reliable. And automatic feeding can be realized.

Features:

1. Collection of detection coil, controller, separation device. Easy to operate and install.
2. It can save losses of material, because rejection board rapidly rejects unqualified material
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65
8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.


Application:

  • Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .

Easy To Operate Gravity Metal Separator For Plastic Molding Industry Tube Diameter 70 Mm
Easy To Operate Gravity Metal Separator For Plastic Molding Industry Tube Diameter 70 MmEasy To Operate Gravity Metal Separator For Plastic Molding Industry Tube Diameter 70 Mm

Advantages

1. Protect production device;
2. Enhance production efficiency;
3. Improve the availability of raw material;
4. Enhance product’s quality;
5. Reduce the expense of maintenance and shuts-down;



Technical Parameters:

Model

Dimension
(mm)

 Sensitivity (Fe) Sensitivity (SUS)

Air
compression

Max.
throughput
(L/H)

Defectives eliminated
time

Installation
height
(mm)
VDM-25 25 0.2mm 0.3mm 3~5Bar 300 0.3~5s 330
VDM-35 35 0.3mm 0.5mm 3~5Bar 400 0.3~5s 330
VDM-50 50 0.3mm 0.6mm 3~5Bar 2000 0.3~5s 330
VDM-70 70 0.8mm 1.2mm 3~5Bar 5000 0.3~5s 330

VDM-
100

 100 0.8mm 1.5mm 3~5Bar 12000 0.3~5s 473

VDM-
120

 120 1.0mm 1.8mm 3~5Bar 16000 0.3~5s 473

VDM-
150

 150 1.2mm 2.0mm 3~5Bar 25000 0.3~5s 600




★ Packing details:

Gravity Metal Separator Free Fall Metal Separator for Plastic Industry Package:
1. Plastic wrap moisture
2. Fixed on the bottom of the wooden box
3. Standard export wooden box packaging, reinforcement



Easy To Operate Gravity Metal Separator For Plastic Molding Industry Tube Diameter 70 Mm



What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
