Specifications
Brand Name :
AiHe
Model Number :
D(1)
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Sets Week
Delivery Time :
7-15 work days
Product name :
milk production plant dairy
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Core Components :
PLC, Motor, Pressure vessel, Pump
Voltage :
380V/3PH/50Hz
Power :
100kw
Weight :
500 KG
Description

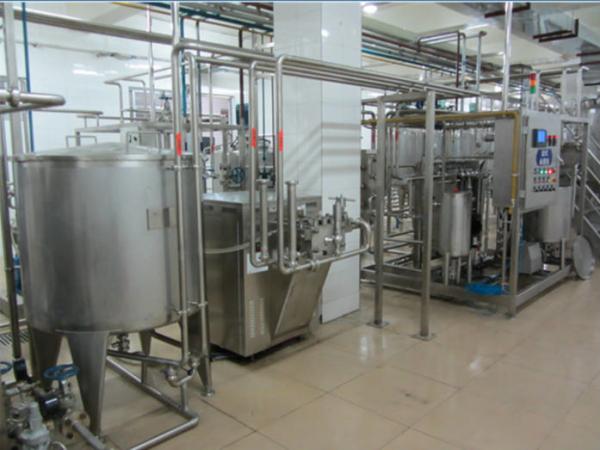

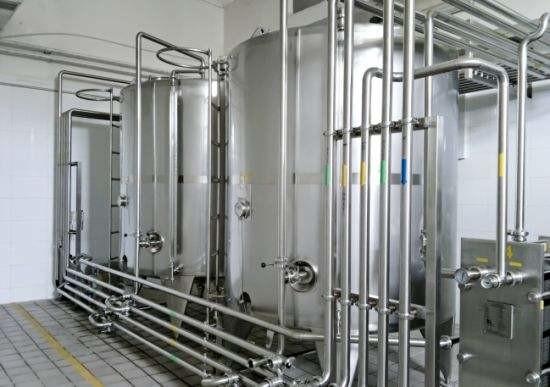

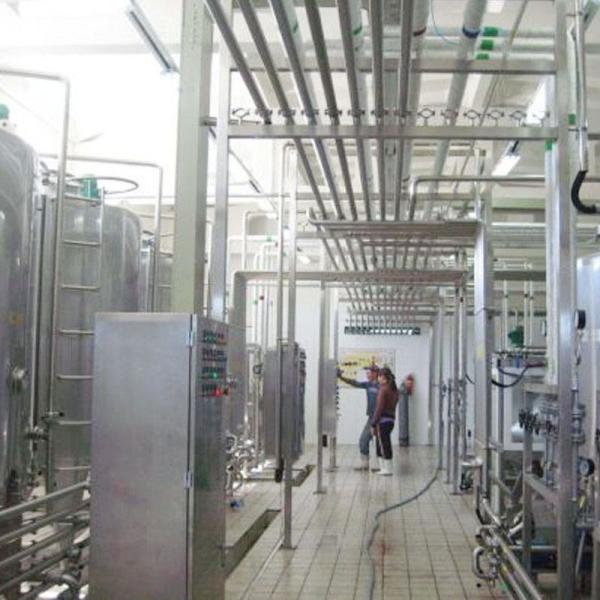

Best selling Small full-set production line mini milk processing plant

This dairy production plant produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.

This dairy production plant raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.

End product package of this dairy production plant can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box etc. for this dairy production line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:

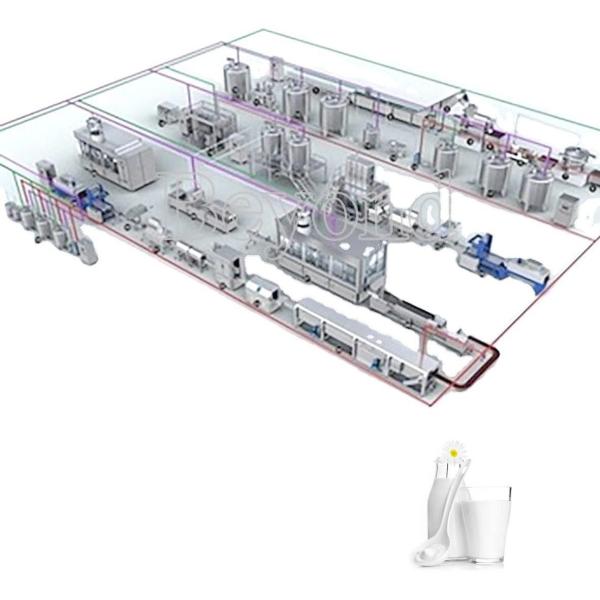

Equipment list DAIRY PRODUCTION plant
(pasteurized milkyogurtcheesecreambutter)
NO. NAME MAIN TECHNOLOGY PARAMETER
1 MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT
2 electron pound scale maximum weighing 500KG
3 milk weighing tank made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball
4 milk acceptor SUS304 stainless steel,single layer,CIP cleaning ball
5 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
6 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
7 dish separator auto residue discharge
8 chiling tank SUS304 stainless steel,alveolate jacket,attached with compressor
9 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
10 PREPARING UNIT
11 blending tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
12 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
13 mini set of plate-type heat exchanger SUS304 stainless steel,two stages,
14 high speed emulsification tank SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet
15 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
16 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
17 sterilizing,homogenizing unit
18 UHT sterilizer tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control
19 high pressure homogenizer 40MPa,(starting box included)
20 temperature holding SUS304,holding 300S
21 distributing board SUS304,3 holes
22 cheesebutter processing unit
23 bufferying tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
24 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
25 cream seperator
26 bufferying container SUS304,with cover
27 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
28 butter-churner SUS304,stepless timing
29 cheese vat SUS304,with heating jacket and insising device
30 pressor SUS304,6 heads
31 mould SUS304,10L,with cover
32 yogurt fermentation unit
33 fermentation tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
34 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
35 plate cooler SUS304,single stage,milk discharge at 4degreeC
36 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
37 filling unit
38 higher position tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
39 pasteurized milk filling machine
40 yogurt filling machine

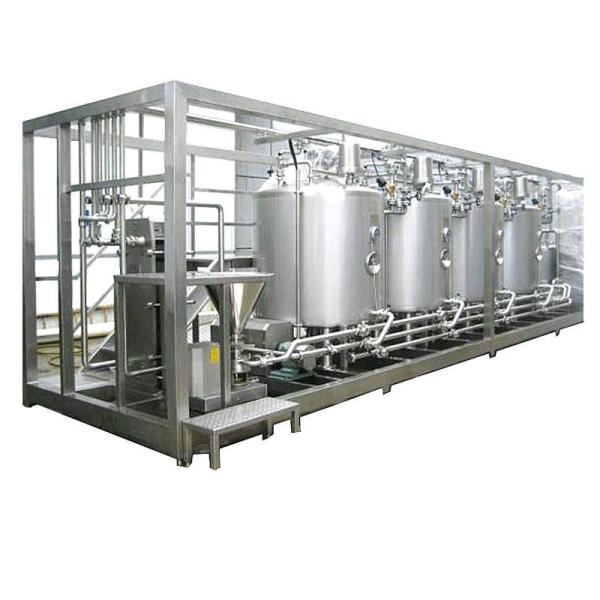

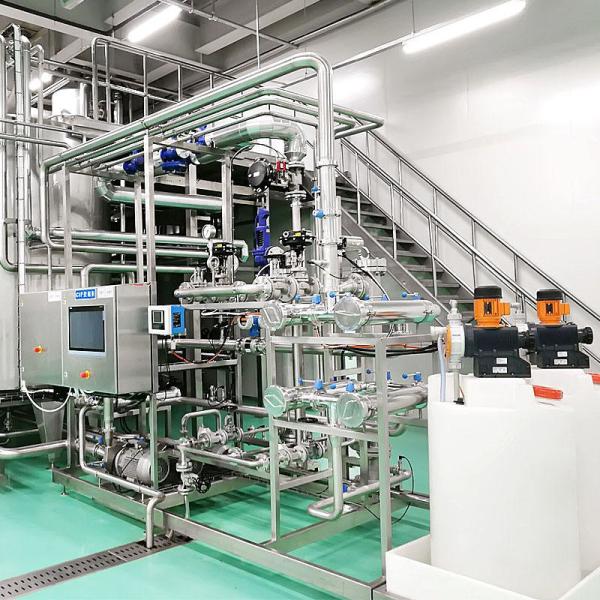

41 CIP system
42 semi-auto CIP system outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks
43 CIP return pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
44 installation part project installation and commissioning


Small Full Set Mini Milk Processing Plant / 100kw Dairy Processing EquipmentSmall Full Set Mini Milk Processing Plant / 100kw Dairy Processing Equipment

Company information

Luohe Aihe Mechanical and Electrical Equipment Co., Ltd. is located in China's food city Luohe city with prosperous economy and developed transportation. It is a professional manufacturer engaged in the research and development and sales of all kinds of food machinery, with skilled professional and technical personnel and advanced production and processing equipment. The company has been committed to the development of food machinery and new technology of food machinery, leading products are: daily processing 6-1000 tons of series of grain deep processing machinery, food machinery, series of food cleaning equipment, series of food cleaning conveying equipment, series of quantitative packaging scale equipment, series of environmental protection dust removal equipment and other mechanical products. Products are sold all over the country and get the majority of users' praise and love.

FAQ:

Q1: Are you a trade company or a manufacturer?
A1: we are a manufacturer, welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss beforecontract.
Q3: Could you supply all the parameters about the machines?
A3: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4: What is your terms of payment ?
A4: 30% T/T in advance , 70% balance before shipment after inspection.
Q5: How about the after-service?
A5: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q6:do you supply any formula to buyer?
A6: yes, we supply formulas to buyer.
Q7: How about the machine warranty?
A7: We provide 1 year warranty, Lifetime service
