3 phase Wind Cooling 1000kw Brushless Diesel Generator
3 phase Wind Cooling 1000kw Brushless Diesel Generator
3 phase Wind Cooling 1000kw Brushless Diesel Generator
3 phase Wind Cooling 1000kw Brushless Diesel Generator
Specifications
Brand Name :
Fude
Model Number :
FD_Weichai-D500
Certification :
CE, ISO,3C
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000
Delivery Time :
8
Packaging Details :
Wooden case packages
Excitation mode: :
Brushless self-excitation diesel generator
Speed: :
1500RPM/1800RPM
Type: :
Silent(super Silent)or Open diesel generator
Fuel Consumption: :
84.000 kg./hr diesel generator
Governing: :
Electronic speed regulation diesel generator
Power efficiency: :
0.8(Lag) diesel generator
Frequency: :
50HZ/60HZ
Rated Current: :
720A
Warranty :
12monthes
Cooling system :
Water cooling system or wind cooling
Rated voltage :
400V
Certificate :
CE ISO9001/ISO14001
Fuel tank :
6-8hours running time
Alternator :
BC184H(Optional)
Description

Chinese 1000kw 500kw 200kw 150kw 120kw 100kw Generador Electrico Diesel Generator Brushless Diesel Generator

FUDE Power System is committed to the R&D and manufacturing of Diesel Generator, Screw Air Compressor, Diesel Pump, Lighting Tower, Welding Generator and related control system and accessories. As a high-tech enterprise, we obtained National Industrial Production Permit in fabricating compressors.

Meanwhile, we are a comprehensive solution provider for our customers in different fields, both power solution and air compressed solution. Combining our worldwide after-sales service, our product is widely used in different industries to cater to different customer demand.

Diesel Generator Set Configuration:

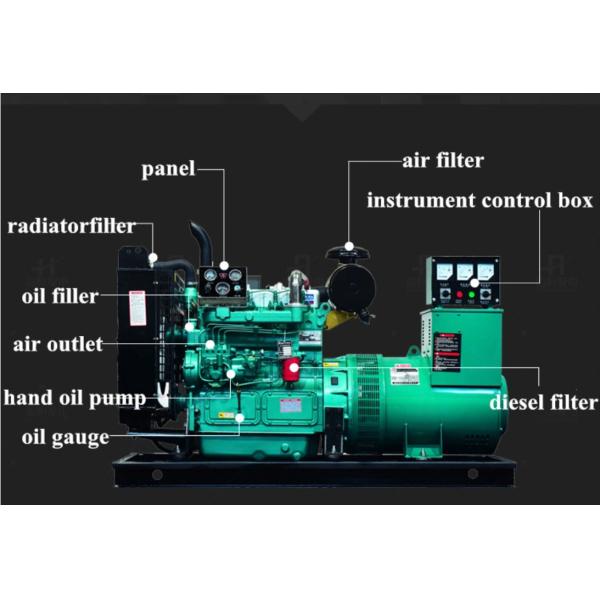

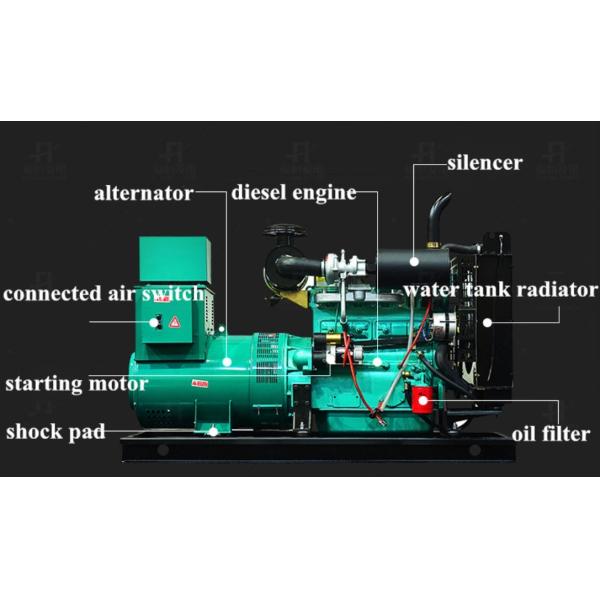

Diesel Generator Set Photos Details:

MODEL CD-C200KW/250KVA
Powered by Cummins Engine
Prime Power (50HZ) 200KW/250KVA
Standby Power (50HZ) 220kw/275KVA
Power Factor 0.8 (Lagging)
Phase Wires 3-phases 4-Wires
Start Model Electric
Protection Low oil-pressure, High water temperature,
Over-speed, Over-current
Engine Model DCEC Cummins 6LTAA8.9-G2 4 Cycle
Cylinders 6
Cylinder Arrangement L
Bore x Stroke(mm) 114X 135
Compression Ratio 16.0:1
Speed 1500rpm
Cooling Method Water - cooled
Starting Method 24V DC electrical start
Full Load Diesel Consumption (L/H) 42.4
Engine Displacement (L) 4
Inspiration (L) Turbocharged Intercooled
Lube Volume (L) 14.3
Coolant Volume (L) 25
Noise (Db) ≤ 80
Alternator Model Newage Stamford UCI274K or Leadtech LTG274L
Alternator Power 200KW/250KVA Brushles with AVR
Voltage 380/220V,400/230V,415/240V,220/127V
Protection IP23
Voltage Regulation ±4%
Insulation Class H
Voltage Control AVR
Net Weigh (KGS) 2350
Dimensions (L x W x H) mm 3200*1500*2010
40FT Container 4 units
Controller Smartgen 6110 or Deepsea 6020
Standard Muffler * 2PCS
Battery 80A * 2 PCS
Optional ATS (auto transfer switch)
AMF(auto mains failure)


3 phase Wind Cooling 1000kw Brushless Diesel Generator

3 phase Wind Cooling 1000kw Brushless Diesel Generator

FAQ

3 phase Wind Cooling 1000kw Brushless Diesel Generator

Our customers include Africa, Southeast Asia, West Asia, South America and other emerging developing countries. We are committed to providing our customers with better quality, better price and good products, and creating more value for our customers

1.We develops independently with 4100 series, British ricardo R4105 and R6105 series, the 6113 series and steel 6126 series diesel engines.
2.Combined the advantages of domestic and foreign advanced diesel engines , improved the fuel injection system, intake and exhaust system, the cooling system to suit the seeds of various generating sets.
3.High power, low fuel consumption, easy to start, equipped with air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without brush as optional parts.
5.The generator can be equipped in factory, school, hospital, farm,etc.

FAQ

1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
