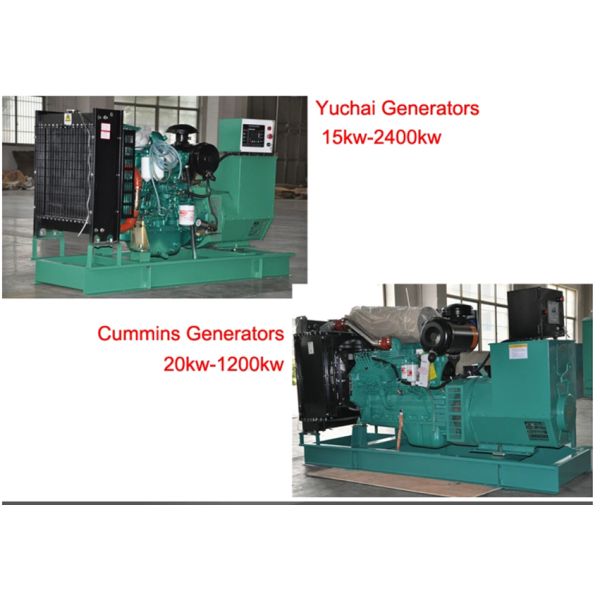

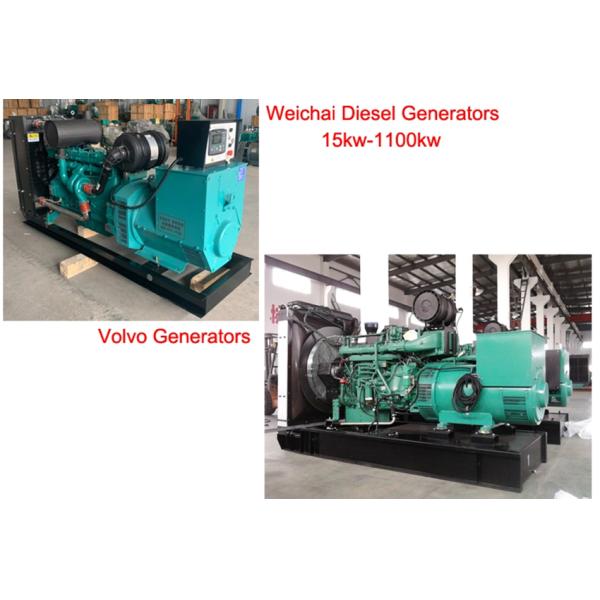

Diesel Generator 60kVA with Water Cooling Brushless Alternator Three Phase for Factory Use

Performance Feature

Engine and alternator shall be mounted on a same frame steel skid.

Built-in damper for anti-vibration.

Small size, low weight, easy for operation, installation and maintenance.

World most famous brand diesel engine.

VOLVO PENTA, DOOSAN, DEUTZ, LOVOL, WUXI POWER, GOOGOL, CSR.

World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.

Advanced and reliable controller: Key start, Auto start, AMF & Remote control by PC with RS232 / 485.

Full range protect function and alarm shutdown feature.

Comply with GB/T2820-97, ISO8528 national standard and ISO9001 quality standard.

Alternator Feature

Brushless, 4 poles, rotation magnet.

IP21-23 enclosure is standard for all industrial alternators.

The insulation system is Class H.

Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.

Wide range of flange adaptors and single bearing disc coupling.

Standard 2/3 pitch windings avoid excessive neutral currents.

Optional accessories available for easy paralleling with mains or other generators.

Optional permanent magnet generator ( PMG ) system provide constant excitation under all condition.

AVR auto voltage regulator, auto exciter, auto adjustment.

Standard: BS5000, VDE0530, NEMA MG1-32, IEC34, IEC60034, AS1359.

Control System

GCS6410 is an Automatic Mains Failure module which is designed to monitor the mains utility and on failure automatically starts the generator and transfers the load. On return of the mains utility the controller automatically returns the load to the mains and stops the generator after a cool down period.

The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD or LED's.

Ture RMS measuring

Configuration of parameters by front panel push buttons or communication software

RS485, RS232, or USB port for remote communication.

Configurable fuel output energise to stop or energise to run.

Our customers include Africa, Southeast Asia, West Asia, South America and other emerging developing countries. We are committed to providing our customers with better quality, better price and good products, and creating more value for our customers

1.We develops independently with 4100 series, British ricardo R4105 and R6105 series, the 6113 series and steel 6126 series diesel engines.
2.Combined the advantages of domestic and foreign advanced diesel engines , improved the fuel injection system, intake and exhaust system, the cooling system to suit the seeds of various generating sets.
3.High power, low fuel consumption, easy to start, equipped with air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without brush as optional parts.

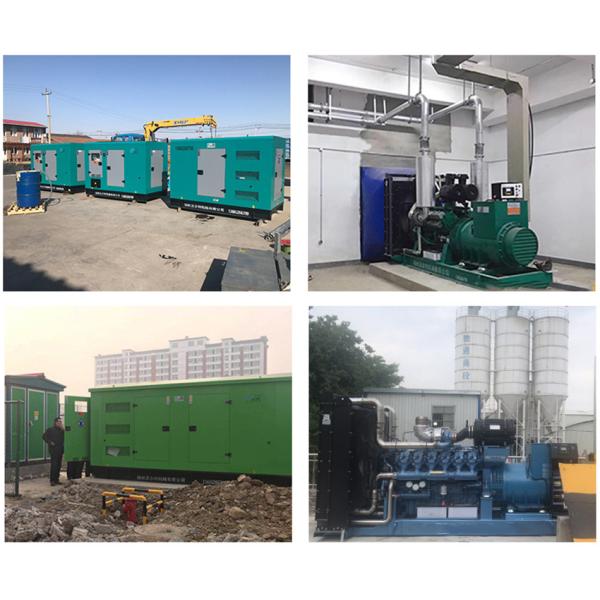

5.The generator can be equipped in factory, school, hospital, farm,etc.
