SS304 Beer Fermenter 300L 1000L Micro Brewing Machine
SS304 Beer Fermenter 300L 1000L Micro Brewing Machine
SS304 Beer Fermenter 300L 1000L Micro Brewing Machine
SS304 Beer Fermenter 300L 1000L Micro Brewing Machine
Specifications
Brand Name :
Fude
Model Number :
FD-B-500
Certification :
CE,ISO,UL,3C
Place of Origin :
China
MOQ :
1
Price :
1000-50000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000
Delivery Time :
7
Packaging Details :
wooden case package
Material :
304stainless steel
Progress :
Fermentig machine
Processing Types: :
Alcohol
Warranty: :
5 years
Core Components: :
Gearbox, Motor, PLC
Cooling way: :
Dimple plate cooling
Thickness of inner jacket: :
3mm
Insulation Materials: :
PU Foma Insulation
Control system: :
PLC
Usage: :
Beer Brewing
Capacity: :
500L
Welding: :
TIG Welding
Polish: :
Ra0.4
Brand :
Fude
Description

300L 500L1000L Stainless Steel Fermentation Beer Fermenter Brewery Equipment Micro Brewing Machine Turnkey Project

SS304 Beer Fermenter 300L 1000L Micro Brewing Machine

Advantage

1) Automatic /semi-automatic operation system ,need one or two brewer operate

2) with our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes

3) we have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate

4) have good feedback from our clients

5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.

Beer brewing equipment are usually independently owned. Such breweries are

generally characterized by theire empahsis on flavor and brewing technique. We supply

microbreweries from 500L to 3500L per brew. Our service includes:complete

microbrewery equipment, installation, recipes of branded beers, staff training etc.

If necessary, it can be expanded in future.

SS304 Beer Fermenter 300L 1000L Micro Brewing Machine

Features of beer fermenter

1. materials sanitary stainless steel 304 or 316L.
2. volume range from 50L to 10,000L and even larger.
3. jackets

cooling jacket and insulation layer filled with PU which is inported

from Japan
4. structure dish top, conical bottom, breeding yeast, cylinder body.
5. polishment

3A mirror polish for interior layer and dish top, 2B satin polish for

exterior layer and conical bottom.

6. transition of interior adopt arc to make sure that there is no dead corner of sanitation.
7. clamp

all clamp valve and fitting except for cold water inlet and outlet are

Tri-clamp

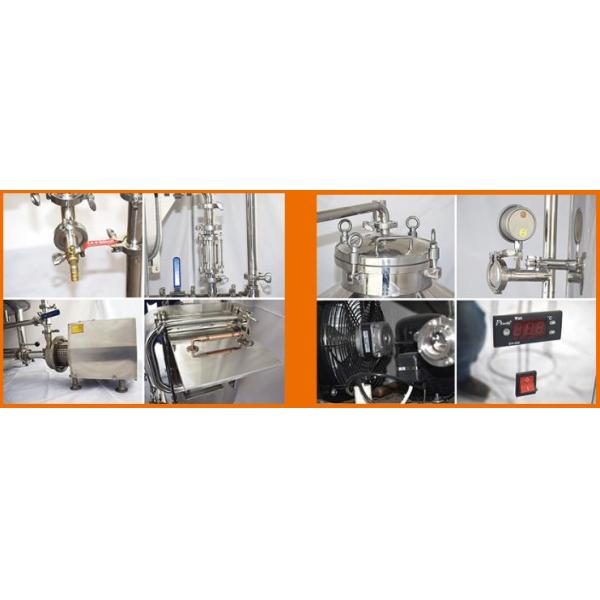

8. accessories

relief valve, lifting ears, CIP spraying ball with pipe, spare hole,

temperature gauge or thermometer probe,pressure gauge, etc.

We can also manufacture the fermenters according to your special specification!

Model & Specification 100L 200L 500L 1000L 2000L 5000L 10000L 20000L 50000L
Diameter(mm) 400 500 700 900 1200 1500 1800 2300 3100
Height(mm) 2000 2300 2650 2900 3800 4480 5250 6550 8550
Pressure inside tank (Mpa) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Pressure inside jacket (Mpa) 0.3 0.3 0.3 0.3 0.3 0.3 pipe0.3 pipe0.3 pipe0.3
Impeller number 2 2 2 2 2 3 3 4 4
Mixing speed (r/min) 400 360 265 220 180 160 145 125 110
Rotor power (r/min) 0.55 0.75 1.5 2.2 4 7.5 17 30 55
Cooling type jacket tube

Construction of beer fermenter

1.The tank body has interlayer and heat-insulating layer (for heating, cooling or heat insulating)

The tank body, upper and lower closure heads(or taper) all adopt spinning R-angle processing.

The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm.

2.It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.

SS304 Beer Fermenter 300L 1000L Micro Brewing Machine

Pre-sale service

1. Free of making offers, craft and technical guidance.

2. We can provide company’s qualification certification and the drawings.

3. We can also make customized products according to customer’s needs.

After-sale service

1. We provide long-term after-sale service.

2. Owing to the quotation of our equipment is FOB price.Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service.
