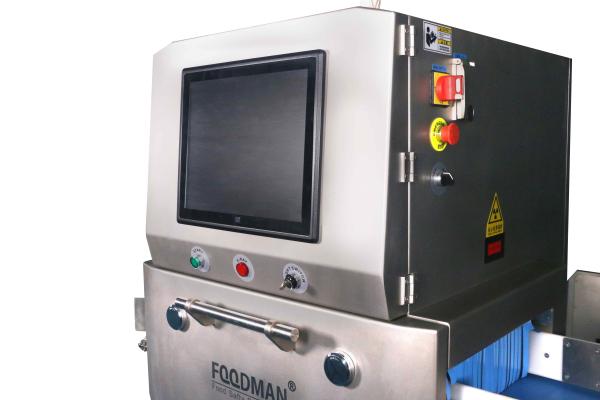

Pharmaceutical X Ray Inspection System 210W with 17 Inch Touch Screen
Pharmaceutical X Ray Inspection System 210W with 17 Inch Touch Screen
Specifications
Brand Name :
Easyweigh
Model Number :
FXR-5026K100
Certification :
CE, FDA, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Set
Delivery Time :
25 work day
Packaging Details :
Wooden packing
Power :
Electronic
After-sales Service Provided :
rovided: Engineers available to service machinery overseas
Name :
X-ray Sundries Inspection Machine
Warranty :
12 Months
Application :
Food&Beverage,Pharmacy,Health Care Industry,Chemical Industry
Color :
Stainless Steel
Voltage: :
AC220V
Type :
Fully Automatic
Usage :
Inspect foreign substance
X-Ray Tube :
210W 100KV
Window of Inspection Tunnel :
500mm W x 260mm H
Product Weight :
Max 5KG (On Conveyor)
Description

Pharmaceutical X Ray Inspection System 210W with 17 Inch Touch Screen

X-Ray Inspection System for food X-Ray Inspection System for pharmaceutical X-Ray Inspection System manufacture

X-ray Sundries Inspection Machine for Packaged Goods

Pharmaceutical X Ray Inspection System 210W with 17 Inch Touch Screen

Model

FXR-5026K100

X-Ray Tube

350W 100KV

Conveyor Size

Width

500mm

Height

260mm

Sensitivity

Stainless steel ball φ0.3mm,Stainless steel wire φ0.2*2mm, Ceramics φ1.0mm, Glass φ1.0mm

Conveyor Speed

10～70m/min

Display Screen

17 inches colour touch screen

Interface

LAN Port,USB Port

Work Environment

Temperature:-10℃～40℃(with on-board air conditioner),

Humidity:30%～90%(equipped with dehumidifier)

X-Ray Emission

＜1 μSv/hour

X-Ray Protection

Light weight lead-free soft curtains at tunnel

Reaction to defective

Sound and indicator, stopping machine, rejector

Power

AC220V±10% 50Hz(60Hz) 1.5kVA Max

Waterproof

IP66

Body Material

Stainless Steel 304

• Safe and reliable : X-Ray leakage is less than 1μ Sv/hour,complying with FDA and CE standard. Radiation less than 1 Gy, very safe for food.Designed complete shielded structure, prevent leakage accident.

• Easy cleaning and maintenance: Detachable structure makes cleaning easy.Waterproof washdown construction, IP66 for detectingtunnel, IP54 for rest of the body.

• Intuitive operation interface:17 inches full colour touch screen,easy to use.Auto-analysis on inspected product,simple to set up inspecting parameter.Auto-save inspection photos, easy totrack and control.

• High configuration and stability:Main components are first class brand toensure the stability and working lifetime.

• Strong adaptability to the environment:Germanair-conditioner ensure the machine can work in low and high temperature in foodindustry.Sealingsystem to avoid water and dust.High-performancedehumidifier can work in 90% humid environment.
