Specifications
Brand Name :
Foodman
Model Number :
FXR-5026K100
Certification :
CE, FDA, ISO9001
Place of Origin :
China
MOQ :
1 Set
Delivery Time :
25 work day
Packaging Details :
Wooden packing
Warranty :
12 Months
Tunnel size :
5000mm(W)*2600mm(H)
Conveyor speed :
10-70m/min
Dose of x-ray leakage :
<0.1μGy/h
Type :
Fully Automatic
Product Weight :
Standard:Max 5KG(on Conveyor)
Usage :
Inspect foreign substance
Application :
Food&Beverage,Pharmacy,Health Care Industry,Chemical Industry
Description

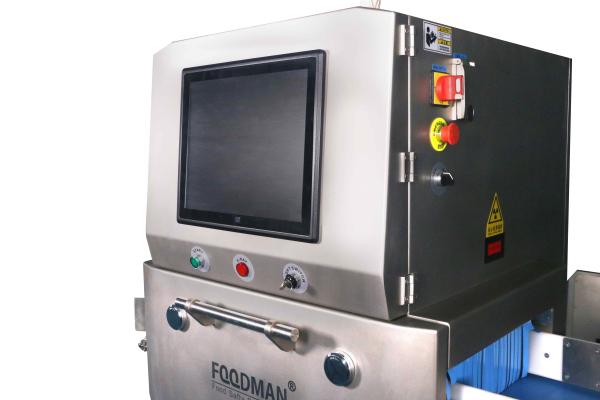

Electronics Big Packages Food X Ray Inspection Equipment 70m/Min With Dual X Ray

Top Sale Auto-Analysis Machine Radiovisiograph Food X-Ray Inspection For Big Package

Electronics Big Packages Food X Ray Inspection Equipment 70m/Min With Dual X Ray

The FXR-5026K100 X-Ray machine suitable packaged and unpackaged goods like food,pharmaceutical and chemical products.

FXR50 series Xray Inspection System is suitable inspect small packages like biscuits, chips, baby foods, medicine

Electronics Big Packages Food X Ray Inspection Equipment 70m/Min With Dual X Ray

• Easy cleaning and maintenance: Detachable structure makes cleaning easy.Waterproof washdown construction, IP66 for detectingtunnel, IP54 for rest of the body.

• Safe and reliable : X-Ray leakage is less than 1μ Sv/hour,complying with FDA and CE standard. Radiation less than 1 Gy, very safe for food.Designed complete shielded structure, prevent leakage accident.

• Intuitive operation interface:17 inches full colour touch screen,easy to use.Auto-analysis on inspected product,simple to set up inspecting parameter.Auto-save inspection photos, easy totrack and control.

• High configuration and stability:Main components are first class brand toensure the stability and working lifetime

• Strong adaptability to the environment:Germanair-conditioner ensure the machine can work in low and high temperature in foodindustry.Sealingsystem to avoid water and dust.High-performancedehumidifier can work in 90% humid environment.

Electronics Big Packages Food X Ray Inspection Equipment 70m/Min With Dual X Ray

Model FXR-5026K100
X-Ray Tube 350W 100KV
Conveyor Size Width 500mm
Height 260mm
Sensitivity Stainless steel ball φ0.3mm,Stainless steel wire φ0.2*2mm, Ceramics φ1.0mm, Glass φ1.0mm
Conveyor Speed 10~70m/min
Display Screen 17 inches colour touch screen
Interface LAN Port,USB Port
Work Environment Temperature:-10℃~40℃(with on-board air conditioner),
Humidity:30%~90%(equipped with dehumidifier)
X-Ray Emission <1 μSv/hour
X-Ray Protection Light weight lead-free soft curtains at tunnel
Reaction to defective Sound and indicator, stopping machine, rejector
Power AC220V±10% 50Hz(60Hz) 1.5kVA Max
Waterproof IP66
Body Material Stainless Steel 304

Electronics Big Packages Food X Ray Inspection Equipment 70m/Min With Dual X Ray

1. Are you manufacturer or trader ?

A: We are manufacturer, we have own factory in China, integrated with R&D, Production, Selling.

2, How to choose the most suitable products ?

A: Our professional team will give you the best suggestion as long as you tell us what kind of food you need to check and the required specification.

3, Can you provide special design and configuration for us ?

A: Customized production available, special production available as percustomer drawing.

4, What is lead time of this products ?

A: The lead date is about 20-25 days.

5, How many years warranty for this product ?

A: We can give 1 year warranty for machine.

6, How to install and use the product ?

A: The product is shipped with an operating instructions and video of English version.

7, How about your after-sale service ?

A: Within 1 hour email response for machine issues and within 4 hours offer for machine trouble shooting solution. Fast and in time contact fortechnical support via live chat tool group. (WA, Viber, WeChat, etc.) Fastest courier delivery for the spare parts once confirmed the problems caused byparts.

Overseas engineer deployment available if necessary.
