API Sch S10 DN1200 ASTM 234 Butt Weld Pipe Reducer
API Sch S10 DN1200 ASTM 234 Butt Weld Pipe Reducer
API Sch S10 DN1200 ASTM 234 Butt Weld Pipe Reducer
API Sch S10 DN1200 ASTM 234 Butt Weld Pipe Reducer
API Sch S10 DN1200 ASTM 234 Butt Weld Pipe Reducer
API Sch S10 DN1200 ASTM 234 Butt Weld Pipe Reducer
Specifications
Brand Name :
ZZ
Model Number :
1/2''-80''
Certification :
API/ISO/CE/TUV/ABS
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 ton per year
Delivery Time :
7 working days
Packaging Details :
Wooden Case & Pallet
Material :
Carbon Steel, Alloy Steel
Head code :
Round,Equal, Reducer
Size :
1/2''-72',1/2"-48"(DN15-DN1200)
Technics :
Pushing,Stamping,welded
Surface :
Black or Painted
Connection :
Welding,Weld
Description

Butt Welding Fittings ASTM 234 Butt Weld Pipe Reducer ASME B16.9

ASTM A234 butt welding fittings are used in pressure piping and vessel fabrication service at moderate rate and elevated temperatures, and available in various grades of carbon steel and alloy steel material. These materials are consisting of killed steel, forgings, bars, plates, seamless or fusion-welded tubular prod-ucts with filler metal added and confrom to the checmial requirements and mechnical properties.

Zizi Engineering is one of the top manufacturer, exporter and supplier of steel pipe fittings and flanges which are available in various sizes, dimension and shapes according to our client’s requirement. Such as butt weld pipe reducer, elbow, tee, corss and cap.

Specification

Standard

ASTM A234, ASME B16.9, ANSI B16.9

Size

1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Thickness

Schedule S10, S20, S30, STD, S40, S60, XS, S80, S100, S120, S140, S160, XXS

Type of ASTM A234 WPB Pipe Fittings

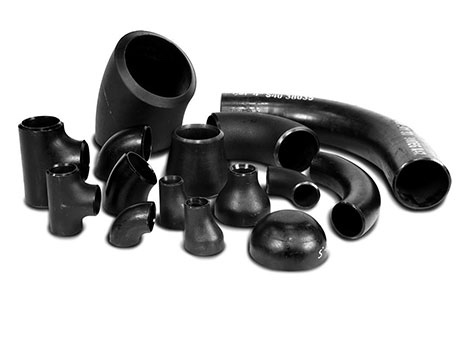

API Sch S10 DN1200 ASTM 234 Butt Weld Pipe Reducer

Elbow

According to the angle, we name it as 45 degree elbow and 90 degree elbow.

For the bending radius, there are long radius (1.5D) and short radius (1D)

Tee

When the run pipe size is same as branch pipe size, we can call it as equal tee or straight tee.

While the branch diameter is small than run pipe diameter, it is reducing tee.

Cap

It is used to seal the end of pipeline by welding. And they have same size and thickness.

Bend

It has same function and degree as elbow which used to change the direction of pipeline. The difference is the bending radius. Usually bend radius is 3D or above. Such 3D, 4D, 5D, 6D,7D, 8D, 9D, 10D, etc.

Stub End

Stub end is used to match with the lap joint flange. There are two type that long pattern and short pattern.

ASTM A234 Chemical Composition

Grade C Si Mn P S Cr Ni Mo
WPB 0.3 0.1 0.29 - 1.06 0.05 0.058 0.4 0.4 0.15
WP5 CL1 0.15 0.5 0.3 - 0.6 0.04 0.03 4 - 6 / 0.44 - 0.65
WP5 CL3 0.15 0.5 0.3 - 0.6 0.04 0.03 4 - 6 / 0.44 - 0.65
WP9 CL1 0.15 1 0.3 - 0.6 0.03 0.03 8 - 10 / 0.9 - 1.1
WP9 CL3 0.25 1 0.3 - 0.6 0.03 0.03 8 - 10 / 0.9 - 1.1
WP11 CL1 0.05 - 0.15 0.5 - 1 0.3 - 0.6 0.03 0.03 1 - 1.5 / 0.44 - 0.65
WP11 CL2 0.05 - 0.2 0.5 - 1 0.3 - 0.8 0.04 0.04 1 - 1.5 / 0.44 - 0.65
WP11 CL3 0.05 - 0.2 0.5 - 1 0.3 - 0.8 0.04 0.04 1 - 1.5 / 0.44 - 0.65
WP12 CL1 0.05 - 0.2 0.6 0.3 - 0.8 0.045 0.045 0.8 - 1.25 / 0.44 - 0.65
WP12 CL2 0.05 - 0.2 0.6 0.3 - 0.8 0.045 0.045 0.8 - 1.25 / 0.44 - 0.65
WP22 CL1 0.05 - 0.15 0.5 0.3 - 0.6 0.04 0.04 1.9 - 2.6 / 0.87 - 1.13
WP22 CL3 0.05 - 0.15 0.5 0.3 - 0.6 0.04 0.04 1.9 - 2.6 / 0.87 - 1.13

ASTM A234 Mechnical Properties

Grade Tensile Strength (Mpa) Yiled Strength (Mpa) Elongation (%) HB
WPB 415 - 655 240 22 197
WP5 CL1 415 - 585 205 22 217
WP5 CL3 520 - 690 310 22 217
WP9 CL1 415 - 585 205 22 217
WP9 CL3 520 - 690 310 22 217
WP11 CL1 415 - 585 205 22 197
WP11 CL2 485 - 655 275 22 197
WP11 CL3 520 - 690 310 22 197
WP12 CL1 415 - 585 220 22 197
WP12 CL2 485 - 655 275 22 197
WP22 CL1 415 - 585 205 22 197
WP22 CL3 520 - 690 310 22 197
