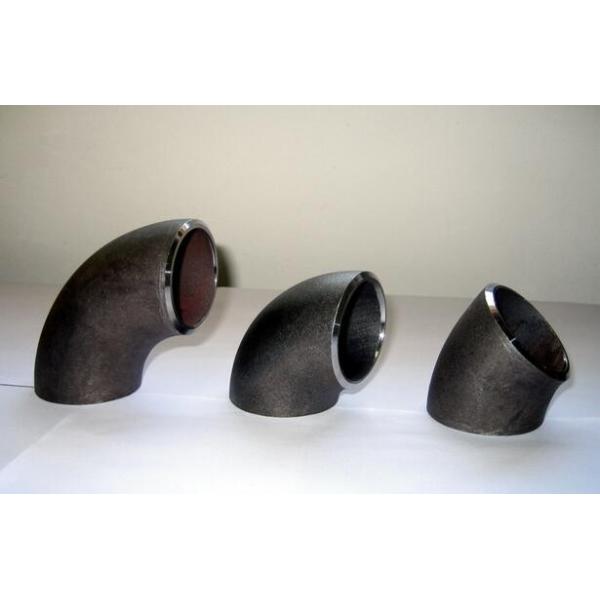

Schedule S10 WP91 ASTM A234 Buttweld Steel Pipe Elbow
Schedule S10 WP91 ASTM A234 Buttweld Steel Pipe Elbow
Schedule S10 WP91 ASTM A234 Buttweld Steel Pipe Elbow
Schedule S10 WP91 ASTM A234 Buttweld Steel Pipe Elbow
Schedule S10 WP91 ASTM A234 Buttweld Steel Pipe Elbow
Schedule S10 WP91 ASTM A234 Buttweld Steel Pipe Elbow
Specifications
Brand Name :
ZZ
Model Number :
1/2''-80''
Certification :
API/ISO/CE/TUV/ABS
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 ton per year
Delivery Time :
7 working days
Packaging Details :
Wooden Case & Pallet
Material :
Alloy Steel
Head code :
Round,Equal, Unequal
Size :
1/2''-72',1/2"-48"(DN15-DN1200)
Technics :
Pushing,Stamping,welded
Surface :
Black or Painted
Connection :
Welding
Description

Steel Pipe Elbow Butt Weld Elbow Alloy Steel Pipe Fittings Checmial Properties

Our Alloy Steel Pipe Fittings are provided in seamless and welded forms and also having excellent strength to prevent highly hazardous chemicals and gases. These products are available in various grades and have precise size, weight, thickness, and dimension. Due to its features like durability, high metallurgical strength, tolerance, there are many shapes and sizes, customized products with cost-effectiveness.

These are best suited for sensitive applications in power generation and nuclear industries. These pipe fittings are available in wide sizes and pressure ratings to ensure easy and quick installation of the pipelines.

We provide a widespread range of Alloy Steel Butt Weld Elbow to our respected customers that are manufactured and are obtainable at equitable prices. Furthermore, it is the accountability of our specialists to make these products especially at par in the company of international and national industry standards.

Specification of Alloy Steel Buttweld Fittings

Standard

ASME B16.9
Specification ASTM A234
Grade WP1 / WP5 / WP9 / WP11 / WP22 / WP91

Size

1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Thickness

Schedule S10, S20, S30, STD, S40, S60, XS, S80, S100, S120, S140, S160, XXS

Type of Steel Pipe Elbow

Connection

  • Socket Weld Elbow
  • Butt Weld Elbow
  • Threaded Pipe Elbow

Angle

  • 45 Degree Elbow
  • 90 Degree Elbow
  • 180 Degree Elbow

Schedule S10 WP91 ASTM A234 Buttweld Steel Pipe Elbow

Bend Radius

  • Long Radius (1.5D)
  • Short Radius (1D)

Alloy Steel Grade Chemical Composition

Grade C Si Mn P S Cr Mo
ASTM A 234 WP5 CL1 0.15 0.5 0.3 - 0.6 0.04 0.03 4 - 6 0.44 - 0.65
ASTM A 234 WP5 CL3 0.15 0.5 0.3 - 0.6 0.04 0.03 4 - 6 0.44 - 0.65
ASTM A 234 WP9 CL1 0.15 1 0.3 - 0.6 0.03 0.03 8 - 10 0.9 - 1.1
ASTM A 234 WP9 CL3 0.25 1 0.3 - 0.6 0.03 0.03 8 - 10 0.9 - 1.1
ASTM A 234 WP11 CL1 0.05 - 0.15 0.5 - 1 0.3 - 0.6 0.03 0.03 1 - 1.5 0.44 - 0.65
ASTM A 234 WP11 CL2 0.05 - 0.2 0.5 - 1 0.3 - 0.8 0.04 0.04 1 - 1.5 0.44 - 0.65
ASTM A 234 WP11 CL3 0.05 - 0.2 0.5 - 1 0.3 - 0.8 0.04 0.04 1 - 1.5 0.44 - 0.65
ASTM A 234 WP12 CL1 0.05 - 0.2 0.6 0.3 - 0.8 0.045 0.045 0.8 - 1.25 0.44 - 0.65
ASTM A 234 WP12 CL2 0.05 - 0.2 0.6 0.3 - 0.8 0.045 0.045 0.8 - 1.25 0.44 - 0.65
ASTM A 234 WP22 CL1 0.05 - 0.15 0.5 0.3 - 0.6 0.04 0.04 1.9 - 2.6 0.87 - 1.13
ASTM A 234 WP22 CL3 0.05 - 0.15 0.5 0.3 - 0.6 0.04 0.04 1.9 - 2.6 0.87 - 1.13

Alloy Steel Grade Mechnical Properties

Grade Tensile Strength
(Mpa)		 Yiled Strength
(Mpa)		 Elongation (%) HB
ASTM A 234 WP5 CL1 415 - 585 205 22 217
ASTM A 234 WP5 CL3 520 - 690 310 22 217
ASTM A 234 WP9 CL1 415 - 585 205 22 217
ASTM A 234 WP9 CL3 520 - 690 310 22 217
ASTM A 234 WP11 CL1 415 - 585 205 22 197
ASTM A 234 WP11 CL2 485 - 655 275 22 197
ASTM A 234 WP11 CL3 520 - 690 310 22 197
ASTM A 234 WP12 CL1 415 - 585 220 22 197
ASTM A 234 WP12 CL2 485 - 655 275 22 197
ASTM A 234 WP22 CL1 415 - 585 205 22 197
ASTM A 234 WP22 CL3 520 - 690 310 22 197
