Seamless DN6 ASTM A420 WPL6 Buttweld Pipe Fittings
Seamless DN6 ASTM A420 WPL6 Buttweld Pipe Fittings
Seamless DN6 ASTM A420 WPL6 Buttweld Pipe Fittings
Seamless DN6 ASTM A420 WPL6 Buttweld Pipe Fittings
Seamless DN6 ASTM A420 WPL6 Buttweld Pipe Fittings
Seamless DN6 ASTM A420 WPL6 Buttweld Pipe Fittings
Specifications
Brand Name :
ZZ
Model Number :
1/8''-80''
Certification :
API/ISO/CE/TUV/ABS
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 ton per year
Delivery Time :
7 working days
Packaging Details :
Wooden Case & Pallet
Shape :
Equal,Reducing
Packing :
Wooden Case, Pallet
Standard :
DIN,JIS,ANSI,ASME,GB
Surface treatment :
hot galvanizing,plating
Type :
Elbow,Tee,Cap, Reducer
Connection :
Welding,butt welded
Description

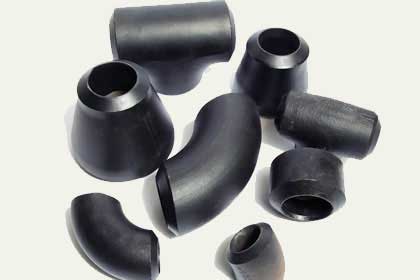

ASTM A420 WPL6 Buttweld Pipe Fittings Low Temp Carbon Steel Fittings Grade

We make low temperature carbon steel (LTCS) ASTM 420 WPL6 Buttweld Pipe Fittings from seamless and welded pipes, that is according to the standard of ANSI / ASME B16.9. They are mostly used for pressure piping applications. Our LTCS butt weld pipe fittings limit types of localized corrosion and are indispensable to applicatons requiring compact but flexible seals. Restraining deformities and cracks under high temperatures.

Zizi Engineering is one of the top manufacturer, exporter and supplier of steel pipe fittings & flanges which are available in various sizes, dimension and shapes according to our client’s requirement. We are at the forefront of innocation in both product lines and after seals services. That's why we constantly upgrade our pipe fittings and services to meet market expecations and demands, We re reputed as an execllent quality low temp carbon steel buttwelding fittings suppliers in the industry.

Specification of ANSI B16.9 Fittings

Standard

ASME B16.9

Size

1/8” NB to 80” NB / DN 6 to 2000

Schedule

Sch 20,STD, XS, Sch 40, Sch 80, Sch100, Sch120, Sch140, Sch 160, XXS
Technical Seamless or Welded
Type Tee, Elbow, Reducer, Cap, Cross, Stub End

Seamless DN6 ASTM A420 WPL6 Buttweld Pipe Fittings

Carbon Steel Material Grade
ASTM A234 WPB, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70.
Low Temp Carbon Steel Material Grade
ASTM A420 WPL3,WPL6, WPL9, WPL8
Stainless Steel Material Grade
ASTM A403 WP304/304L/304H, WP316/316L/316H, WP317, WP321, WP310S, WP904L
Alloy Steel Material Grade
ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex Steel Material Grade
ASTM A815 UNS 31803, S 32205, S 32550, S 32750, S32760

Advantage of LTCS Butt Welding Fittings

Butt welding pipe fittings such as carbon steel and stainless steel offer many advantages compared to threaded and socketweld fittings. The later are only available up to 4-inch nominal size whereas butt weld fittings are available in sizes from ½” to 80”.

Benefits
Welded connection offers more robust connection
Continuous metal structure adds to the strength of the piping system
Butt-weld fittings with matching pipe schedules, offers seamless flow inside the pipe. A full penetration weld and properly fitted LR 90 Elbow, Reducer, Concentric reducer etc. offers gradual transition via welded pipe fitting.

Low Temp Carbon Steel Datasheet

Chemical Composition % Max

Grade C Si Mn P S Ni Cu
A420 WPL6 0.3 0.1min 0.29-1.06 0.025 0.025 - -
A420 WPL9 0.2 - 0.40-1.06 0.025 0.025 1.6-2.24 0.75-1.25
A420 WPL3 0.19 0.18-0.37 0.31-0.64 0.025 0.025 3.18-3.82
A420 WPL8 0.13 0.13-0.32 0.9 0.025 0.025 8.4-9.6 -

Mechnical Properties Min

Grade Tensile Strength (Mpa) Yiled Strength (Mpa) Elongation &
A420 WPL6 415 240 22
A420 WPL9 435 315 28
A420 WPL3 450 240 22
240A22420 WPL8 690 515 16

Delivery

Within 15 days or asap if we have stock.

Types of Packing

Carton

Wooden Case

Crates ( Steel/Wooden)

Features

End of steel pipe nipples are protected by plastic caps.

Bundles strapped with plastic strips

Packing list laminated with case/crate.

Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Pulp and Paper Industry
