TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F53
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
End Type :
TOE, TBE
Standard :
ASME B16.11, BS3799
Products :
90 Degree Threaded Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Thickness :
STD, XS, Sch 40, Sch 80
Surface :
Anti rust Oil, Galvanized
Description

Threaded One End Nipple TOE NPT ASTM A182 F53 Duplex Steel Pipe Fittings BS 3799

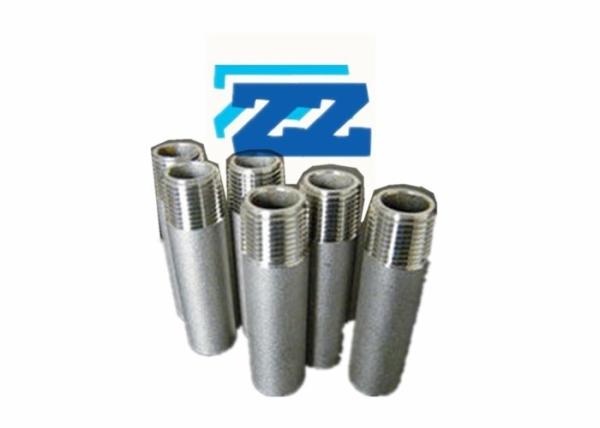

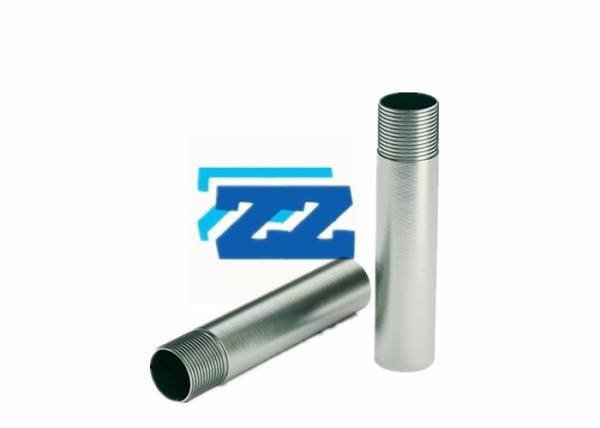

Threaded One End Pipe Nipple

Large dimension selection for Threaded One End Pipe Nipples ( TOE Nipple ), they are made of best quality duplex steel ASTM A182 F53 according to standard BS 3799.

Threaded nipple is a short tube with male threads at both end or one end. The thread end can be NPT, BSPP, BSPT or other threads that customer require. And if it is threaded one end nipple, the end without thread could be plain or beveled.

Threaded Nipple Dimension

Size 1/8" to 4" / DN6 to DN100
Pressure Rating

SCH 40/STD, SCH 80/XS
Standard ASME B16.11 and BS3799
End Type TOE, TBE, Male, Female
Thread Type NPT, BSPP, BSPT
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799

Pipe Nipple Weight

The weight chart covers pipe nipples form 1/8 inch to 4 inch, and schedule is sch 80 and sch 160, the length is 100mm.

TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799

TOE Nipple Fittings

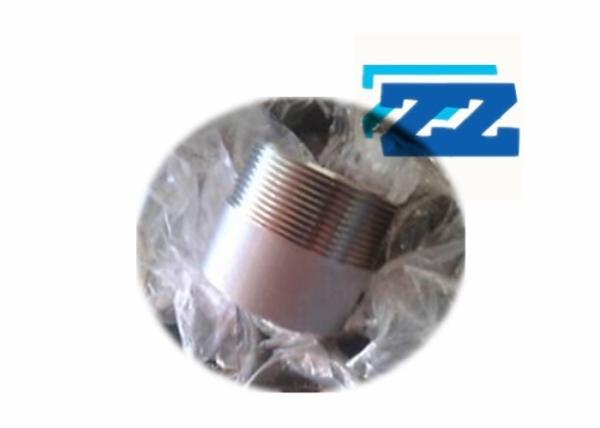

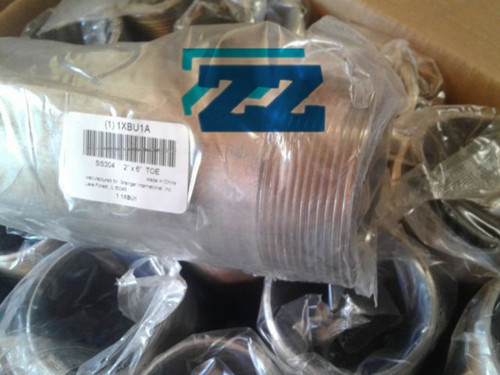

Package

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed all TOE nipples into carton and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

TOE NPT Duplex Steel Pipe Fittings Threaded One End Nipple ASTM A182 F53 BS 3799

Inspection

  • Check the surface and marking, ensure the marking is clear, and the surface is smooth.
  • Measure the size in accordce with the manufacturer standard BS 3799
  • Test the thread with go/no go gauge.

Advantages

  • Reasonable Price
  • Best Quality
  • Safe Package
  • One Step Service

ASTM A182 F53 Chemical Composition

C Mn P Si S Cr Ni Mo
0.03 1.2 0.035 0.8 0.015 24-26 6-8 3-5

ASTM A182 F53 Mechanical Properties

Tensile Strength Yield Strength Hardness
800 550 300
