BSPP 1 / 2 A182 304 Stainless Steel Pipe Fittings Hex Head Bushing Male Thread
BSPP 1 / 2 A182 304 Stainless Steel Pipe Fittings Hex Head Bushing Male Thread
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F304
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
100000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Standard :
ASME B16.11, BS3799
Connection :
Male Thread
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Material :
Stainless Steel,Carbon Steel,Alloy Steel, Duplex Steel
Thread :
BSPP BSPT NPT,as request
Head code :
Hexagon,round,Square
Description

Hex Head Bushing BSPP 1 / 2 " A182 Stainless Steel 304 Pipe Fittings ASME B16.11

Threaded Hex Head Bushing

Best price for Hex Head Bushing BSPP 1 / 2 " A182 Stainless Steel 304 Pipe Fittings ASME B16.11, they are made of best quality materials by ISO certified manufacturer Zizi.

A threaded bushing, also known as a threaded insert, is a fastener element that is inserted into an object to add a threaded hole. 304 stainless steel pipe fittings have excellent corrosion resistance and demanded highly in chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills due to their versatility and excellent weld-ability.

Hex Head Bushing Dimensions

Size 1/4" to 4" / DN8 to DN100
Standard ASME B16.11 / BS3799
Thread Type NPT, BSPP, BSPT, PF, PT
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Carbon Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Stainless Steel ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321,F347
Duplex Steel ASTM A182 F44, F51, F53, F55,F60, F61, S31803, S32205, S32550, S32750, S32760

BSPP 1 / 2

ASTM A182 F304 Chemical Composition

C Mn P S Si Cr Ni
0.08 2 0.045 0.03 1 18-20 8-11

ASTM A182 F304 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Threaded Bushing Weight

The weight chart of threaded bushing is covering two types that hex head bushing and flush bushing. Their dimensions are from 1/4" to 4".

BSPP 1 / 2

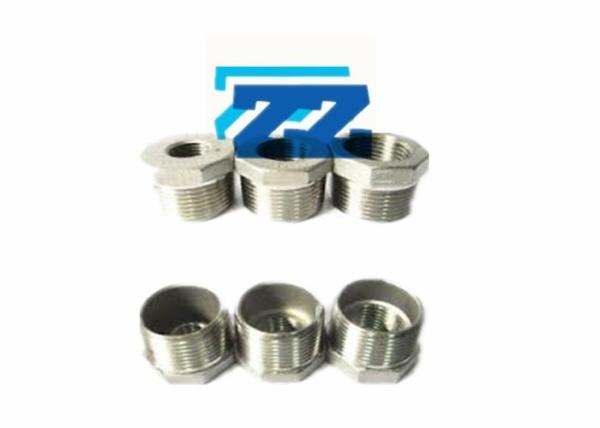

1/2" Hex Head Bushing

Marking

Our workers marked type, size, thread, material and heat No on the surface becuase the size and space are tight.

Surface

Brush the anti-rust oil on all threaded bushing.

Wrap hex head bushing with waterproof papers.

Package

Pack BSPP Hex Head Bushing into cartons.

Put all cattons in wooden cases and bundle it with belts.

Labers on the wooden case for easy indentification.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as type, size, material grade, thread, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the thread with go/no go gauge.
  • Test the chemical composition of SS 304.

Advantanges

  • Cheap price
  • Fast delivery
  • One stop service
  • ISO quality certification
