Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Duplex 3 / 8 Steel Tube Couplings , BSPP ASTM A182 F55 Class 6000 Pipe Fittings ASME B16 11
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F55
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 F55
Connection :
Female Threaded
Products :
90 Degree Threaded Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Thickness :
3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Surface :
Anti rust Oil, Galvanized
Packing :
Carton and Wooden Case.
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Duplex Steel Coupling 3/8" Class 6000 BSPP ASTM A182 F55 ASME B16.11

Duplex Steel Coupling

Zizi have advanced duplex steel threaded coupling production line and supplies ASTM A182 F55 Class 6000 Threaded 3/8" BSPP Coupling ASME B16.11 for Belgium.

Duplex Steel Forged Fittings are known for their high strength, excellent corrosion resistance and long service life which are better than stainless steels. The Class 6000 Coupling is durable as well as withstand to high pressure. It is common used to connect pipes within 4 inches.

BSPP Coupling Dimensions

Size 1/8" to 4" / DN6 to ND100
Pressure Rating Class 3000, 6000
Standard ASME B16.11 and BS3799
Surface Anti-rust Oil or Galvanized
Forged Cap Type Scoket Weld Cap, Threaded Cap
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Duplex 3 / 8

ASTM A182 F55 Chemical Composition

C Si Mn S P Cr Ni Mo
0.03 1 1 0.01 0.03 24-26 6-8 3-4

ASTM A182 F55 Mechanical Properties

Tensile Strength Yield Strength Elongation
750-895 (Mpa) 550 (Mpa) 25 (%)

Threaded Coupling Weight

Duplex 3 / 8

High Pressure Pipe Coupling

Marking and Packing

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed Duplex Steel ASTM A182 F55 Pipe Coupling into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

Duplex 3 / 8

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Check the chemical composition.

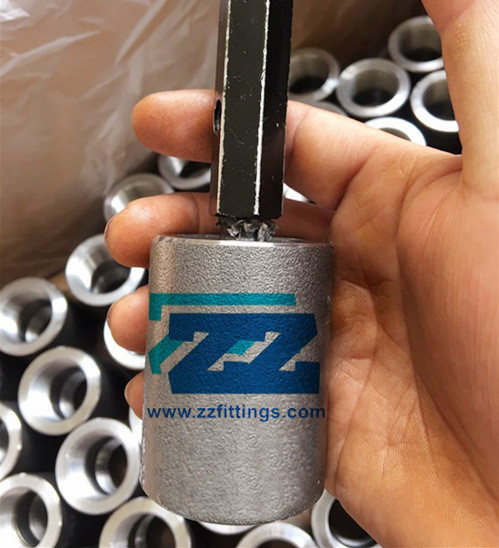

  • Test the threads with go/no go gauge.

Why Choose Us?​

  • Low Price
  • ISO Certified Quality
  • Short Delivery
  • Safe Package
  • Reliable Shipment
