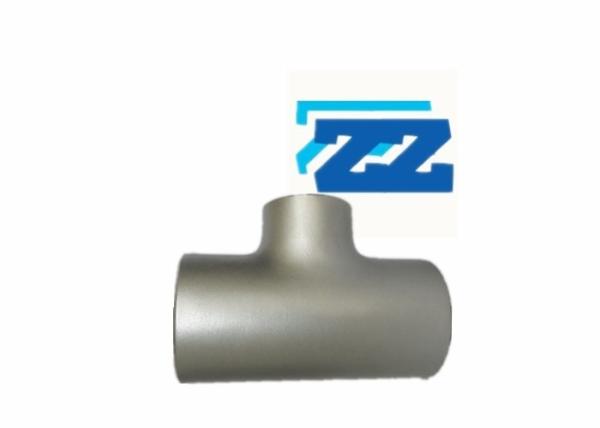

UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9
Specifications
Brand Name :
ZZ
Model Number :
ASTM A815 UNS S31803
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotation
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Month
Delivery Time :
5- 20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
Duplex Stainless Steel
Form :
Seamless, Weld
Size :
1/2" - 60"
Standard :
ANSI, DIN, ASME B16.9
Product name :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Surface :
Sand Blasting and Black Primer, Hot Dip Galvanized, PE Coating
Package :
Plastic Foam, Wooden Cases, Pallets.
Description

UNS S31803 Rducer Tee 5X4 Inch XS BE ASME B16.9 Duplex Steel Pipe Fittings

Duplex Stainless Steel Pipe Fittings

Quality supplier and manufacturer of UNS S31803 Rducer Tee 5X4 Inch XS BE ASME B16.9 Duplex Steel Pipe Fittings for New Zealand.

Our buttweld fittings are designed and developed to meet diverse working conditions and special project requirements of our customers. It is including 90 Degree Elbow, 45 Degree Elbow, Butt weld Cap, Equal Tee, Reducing Tee, Cross Tee, Concentric Reducer, Eccentric Reducer.

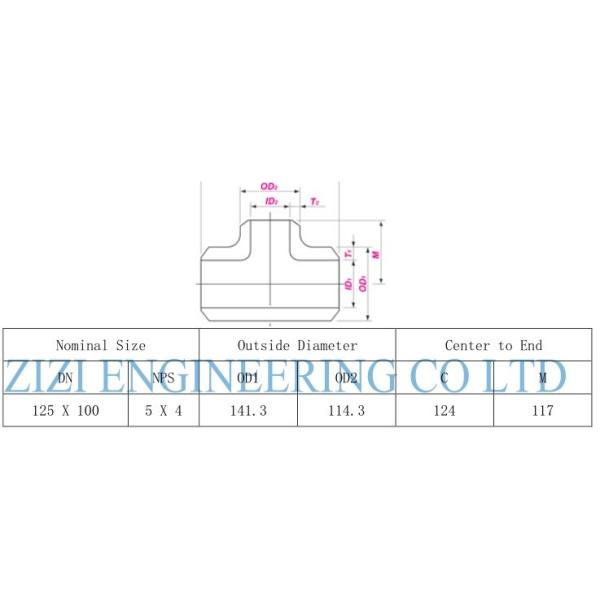

ASME B16.9 Tee Dimensions

Size 1/2" - 60"
Wall Thickness Sch10S, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard ASME B16.9
Types Seamless Tee, Welded Tee, Equal Tee, Reducing Tee
Stainless Steel ASTM A403 WP304/304L,WP304H,WP316/316L,WP310,WP317,WP321
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
Low Temp Carbon Steel ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9

ASTM A815 UNS S31803 Chemical Composition

C Mn P S Si Cr Mo
0.03 2 0.03 0.02 1 21-23 2.5-3.5

ASTM A815 UNS S31803 Mechanical Properties

Tensile Strength Yield Strength Elongation
620 (Mpa) 450 (Mpa) 25 (%)

Equal Tee Weight

Equal tee weight chart is the basis for calculation the weight of reducing tees.

UNS S31803 Reducer Tee Duplex Steel Pipe Fittings 5 X 4 Inch Size XS BE ASME B16 9

UNS S31803 Reducer Tee

Package

  • Marked with Grade, Lot No, Size, Standard and Schedule Thickness
  • Wrapped pipe tees with plastic foam
  • Packed butt weld fittings into wooden cases or pallets.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, thickness, heat no.
  • Measure the size. Such as diameter, thickness, height of end to end.

Advantage of Buttweld Fittings

  • Reasonable Price
  • Good Quality
  • Safe Package
  • Reliable Shipment
