ASTM A182 F91 Alloy Steel Pipe Fittings 1 NPT Plug Hex Head ASME B16 11
ASTM A182 F91 Alloy Steel Pipe Fittings 1 NPT Plug Hex Head ASME B16 11
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F91
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
100000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Standard :
ASME B16.11, BS3799
Connection :
Male Thread
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Material :
Stainless Steel,Carbon Steel,Alloy Steel, Duplex Steel
Surface :
Anti rust Oil, Galvanized
Packing :
Carton, Wooden Case
Description

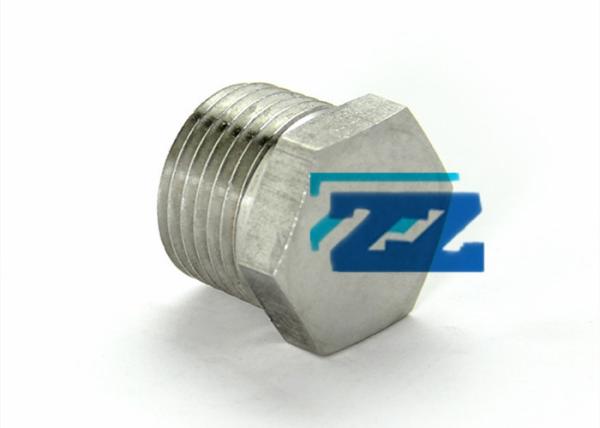

1 " NPT Plug Hex Head ASTM A182 F91 Alloy Steel Pipe Fittings ASME B16.11

Hex Head Threaded Plug

High quality pipe fittings supplier Zizi manufactures 1 " NPT Plug Hex Head ASTM A182 F91 according to ASME B16.11 and exports them and other alloy steel pipe fittings to UAE.

Zizi is an ISO certified company, and we have rich experience to manufacturer steel pipe fittings. Our customers come from all over the world, and because the good quality of our productions, they trust us and purchase pipe fittings from us from time to time.

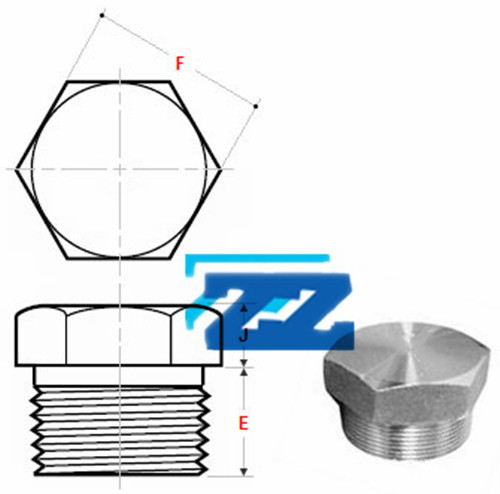

1" NPT Plug Dimensions

Size 1/8" to 4" / DN6 to DN100
Standard ASME B16.11 / BS3799
Thread Type NPT, BSPP, BSPT, PF, PT
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Carbon Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Stainless Steel ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321,F347
Duplex Steel ASTM A182 F51, F53, F55, S31803, S32205, S32550, S32750, S32760

ASTM A182 F91 Alloy Steel Pipe Fittings 1

ASTM A182 F91 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08-0.12 0.3-0.6 0.02 0.01 0.2-0.5 0.4 8-9.5 0.85-1.05

ASTM A182 F91 Mechanical Properties

Tensile Strength Yield Strength Elongation
585 (Mpa) 415 (Mpa) 20 (%)

Threaded Plug Weight

Threaded plugs cover square head plug, hex head plug and round plug. Their weight are different according to the head shape. Here we give you the weight of three types plugs in kg.

ASTM A182 F91 Alloy Steel Pipe Fittings 1

1" NPT Hex Head Plug

Marking

Marks " HP 1" NPT A182 F91 163" on plug body, it covers type, size, thread and heat No only.

Surface

Brush the anti-rust oil on all threaded plugs.

Wrap them with waterproof papers

Package

Pack 1" NPT Hex Head Plugs into cartons.

Put all cartons in wooden cases and bundle it with belts.

Shipping mark on the wooden case for easy indentification.

Inspection

  • Test if the surface has any dents, die marks, porosity, undercuts.
  • Check the marking. The marking should be clear and correct.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the thread with go/no go gauge.

ASTM A182 F91 Alloy Steel Pipe Fittings 1

Advantanges

  • Low Cost
  • High Quality
  • One stop service
