Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel ASTM A182 F316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Connection :
male Threaded
Standard :
ASME B16.11, BS3799
Products :
90 Degree Threaded Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap, Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Thickness :
Sch 80, Sch 160
Surface :
Anti rust Oil, Galvanized
Packing :
Plastic Foam, Carton and Wooden Case, 20ft Container
Application :
Industry, Natural Gas , Petroleum, Chemical
Description

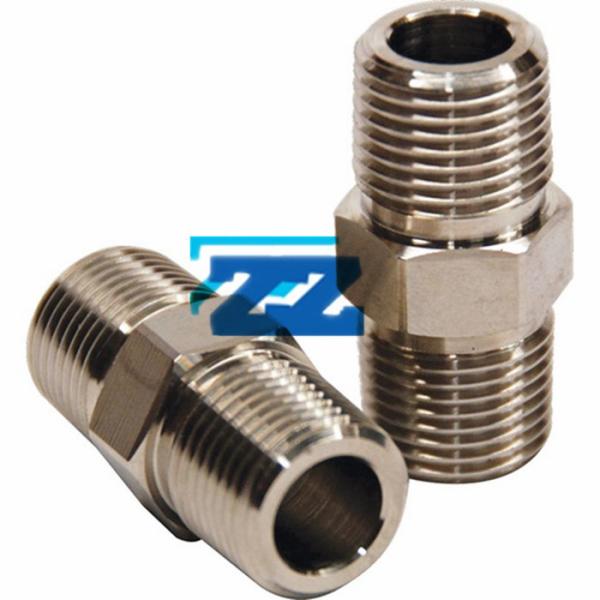

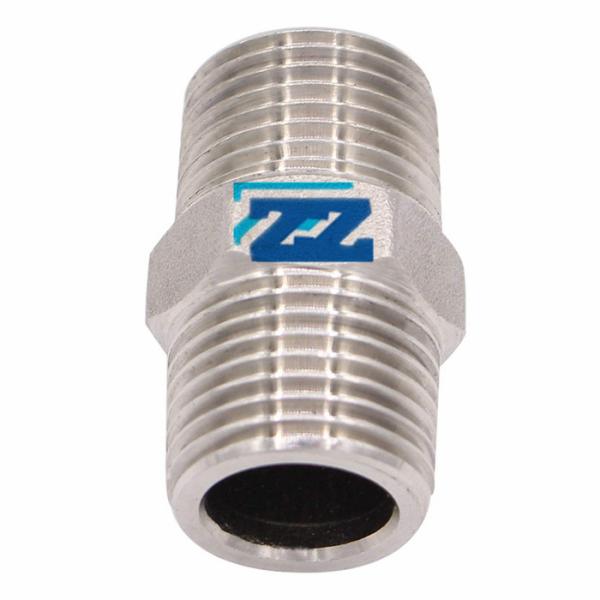

Hex Nipple 3 / 4 " Sch 80 NPT Stainless Steel Pipe Fittings A182 F316 ASME B16.11

Hex Nipple

Leading Steel Pipe Fittings manufacturer and supplier Zizi exports 3 / 4 " Hex Nipple Sch 80 with NPT thread to Singapore, they are made of high quality stainless steel ASTM A182 F316 according to ASME B16.11.

As a kind of threaded nipple, hex nipple has male thread at both end and a hexagonal section in the center, the thread often is NPT or BSP. It is precision forged pipe fittings and usually used for instrumentation and process control.

NPT Hex Nipple Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating

SCH 80, Sch 160
Standard ASME B16.11 and BS3799
Type Straight and Reducing Hexagonal Nipple
Thread Type NPT, BSPP, BSPT, PT, PF
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

High Precision 3 / 4

High Precision 3 / 4

ASTM A182 F316 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

ASTM A182 F316 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Hex Nipple Weight

We offer the weights of some regular sizes, you can use nominal size and the wall thickness to find their weights.

High Precision 3 / 4

Carbon Steel Hex Nipple

Package

  • Marked with Grade, Lot No, Size, Standard and Pressure if it is possible. Size and Pressure is prioritized.
  • Wrapped plastic foam first.
  • Packed Stainless Steel 316 Hex Nipple into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

  • Check the surface if there is any dents, die marks, porosity, undercuts.
  • Check the marking to ensure it is clear and complete. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the NPT thread with go/no go gauge.

Why Choose Us?

  • Cost Effective
  • High Quality
  • Fine Appearance
  • Easy to Use
  • Fast Delivery
