90 Degree Stainless Steel Pipe Fittings Elbow BSPT 4 6000 LB SS 316L ASME B16 11
90 Degree Stainless Steel Pipe Fittings Elbow BSPT 4 6000 LB SS 316L ASME B16 11
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F316L
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-15 Days
Packaging Details :
Cartons and Wooden Cases
Material :
ASTM A182 F316L
Connection :
BSPP, BSPT, NPT
Type :
90 Degree Socket Weld Elbow, 45 Degree Socket Weld Elbow
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
3000 LB, 6000 LB, 9000 LB
Standard :
ASME B16.11, BS3799
Surface :
Anti rust Oil, Galvanized
Packing :
Carton, Wooden Case
Description

90 Degree Stainless Steel Pipe Elbow BSPT 4 " 6000 LB SS 316L ASME B16.11

90 Degree Stainless Steel Elbow

ISO certified manufacturer and exporter Zizi supplies 90 Degree Stainless Steel Pipe Elbow BSPT 4 " 6000 LB SS 316L ASME B16.11 with the most compotitive price.

Stainless Steel elbows have the advantages of corrosion resistance, high strength and resistant to high pressure and temperature. ASTM A182 F316/316L, F304/304L are the most commonly used gardes for forged pipe fittings.

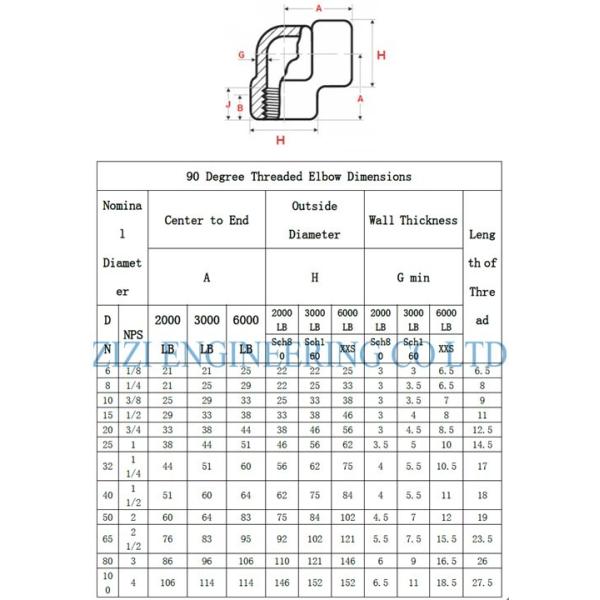

Threaded Elbow Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 3000, 6000, 9000
Standard ASME B16.11 and BS3799
Surface

Anti-rust Oil or Galvanized
Product 90 Degree Socket Weld Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Socket Weld Coupling, Cap and Union
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

90 Degree Stainless Steel Pipe Fittings Elbow BSPT 4

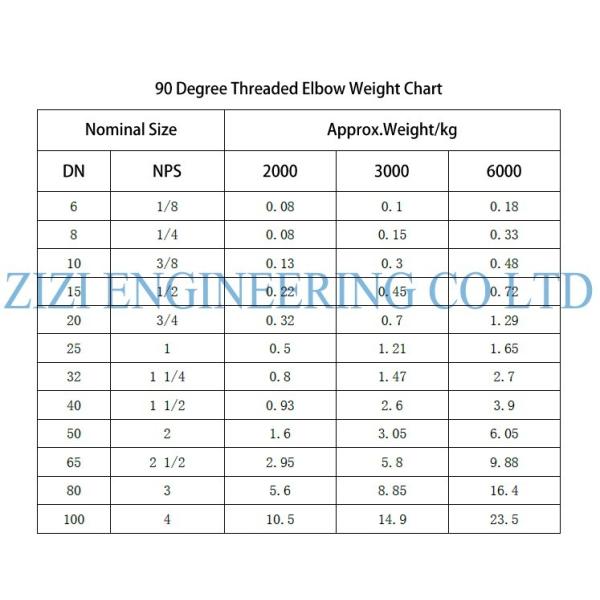

90 Degree Threaded Elbow Weight Chart

Here is the weights of 90 degree socket weld elbow, the dimensions we give is in accordance with ASME B16.11.

90 Degree Stainless Steel Pipe Fittings Elbow BSPT 4

4" 90 Degree Elbow

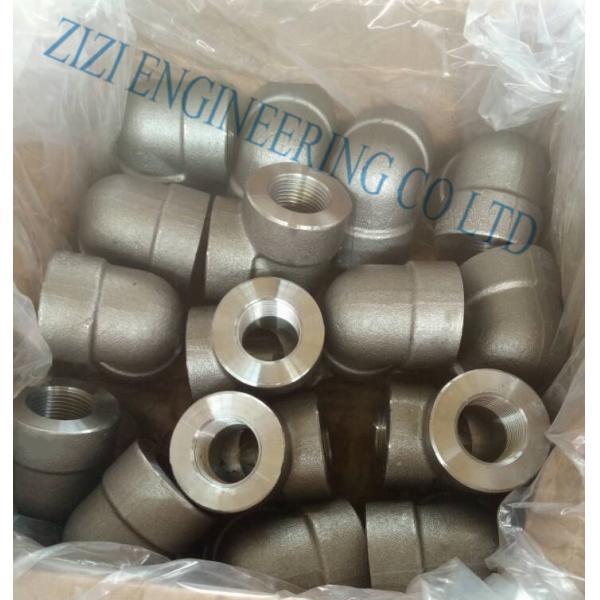

Package

  • Marking. Covers Material Grade, Lot No, Size, Standard and Pressure.
  • Wrapped each 90 degree elbow with plastic foam
  • Packed all 4" elbows into cartons and wooden cases.

90 Degree Stainless Steel Pipe Fittings Elbow BSPT 4

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, height of end to end.

Advantage

  • Reasonable Price
  • Good Quality
  • Large Dimension Ranges
  • Good Service

ASTM A182 F316L Chemical Composition

C Mn P S Si Ni Cr Mo
0.03 2 0.045 0.03 1 10-14 16-18 2-3

ASTM A182 F316L Mechanical Properties

Tensile Strength Yield Strength Elongation
485 (Mpa) 170 (Mpa) 35 (%)
