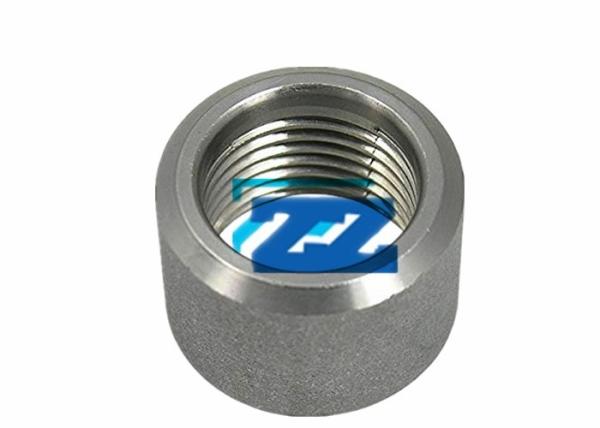

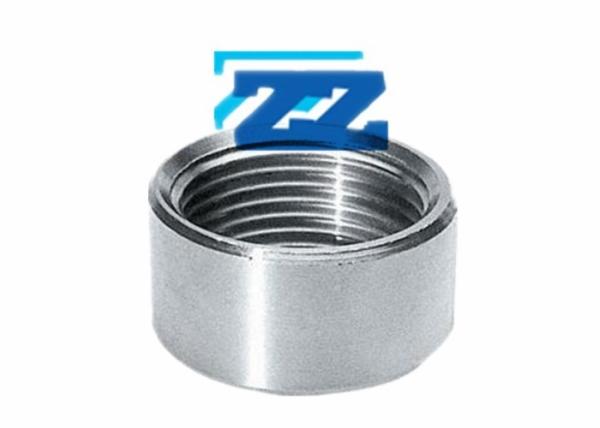

BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
BSPP Half Coupling Alloy Steel Pipe Fittings 2 6000 # ASTM A182 F9 Female Thread Connection
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F9
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
10-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 F9
Connection :
Female Thread
Type :
Threaded Half Coupling, Threaded Full Coupling, Threaded Reducing Coupling
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Thread :
NPT, PT, PF, BSPT, BSPP
Surface :
Anti rust Oil, Galvanized
Description

BSPP Half Coupling 2 " 6000 # ASTM A182 F9 ASME B16.11 Alloy Steel Pipe Fittings

Threaded Half Couplings

Best price for BSPP Half Coupling 1 / 2 " 6000 # A182 F9 ASME B16.11 Alloy Steel Pipe Fittings, they are avaliable in large dimension ranges and excellent quality.

Threaded Couplings can be used in a variety of situations to create tanks, vessels, or reservoirs that can accommodate NPT Threaded Fittings. Available in either carbon steel, alloy steel and stainless steel to guarantee long lasting performance, even in corrosive environments.

BSPP Half Coupling Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 3000, 6000
Standard ASME B16.11 and BS3799
Surface Anti-rust Oil or Galvanized
Stainless Steel ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

BSPP Half Coupling Alloy Steel Pipe Fittings 2

Half Coupling Weight Chart

As we all know, the height (end to end) of half coupling is 1/2 of full coupling, but its weight is no 1/2 times. The weight only related to nominal size and pressure. Here is the weight chart of threaded half couplings.

BSPP Half Coupling Alloy Steel Pipe Fittings 2

Class 6000 Half Coupling

Marking and Packing

  • Marked with Grade, Lot No, Size, Thread, Standard and Pressure.
  • Packed Alloy Steel Threaded Coupling into cartons and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

BSPP Half Coupling Alloy Steel Pipe Fittings 2

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Ensure it is clear and complete.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Go/no Go Gauge to test the threads.

Features of Alloy Steel Pipe Fitting

  • High Quality
  • Corrosion Resistant
  • Good Appearance
  • Competitive Price

ASTM A182 F9 Chemical Composition

C Mn P S Si Ni Cr Mo
0.15 0.3-0.6 0.03 0.03 0.5-1 / 8-10 0.9-1.1

ASTM A182 F9 Mechanical Properties

Tensile Strength Yield Strength Elongation
585 (Mpa) 380 (Mpa) 20 (%)
