Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Ecc Swage Nipple Alloy Steel Pipe Fittings 3 X 2 ASTM A182 F12 MSS SP 95
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F12
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases
Material :
ASTM A182 F12
Connection :
Threaded or Welded
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4",5",6",8",10",12"
Pressure :
Sch 10s, Sch 20, STD, Sch 40, XS, Sch 80
Standard :
MSS-SP-95
Surface :
Anti rust Oil, Galvanized
Packing :
Plastic Foam, Carton, Wooden Case. 20FT Container
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

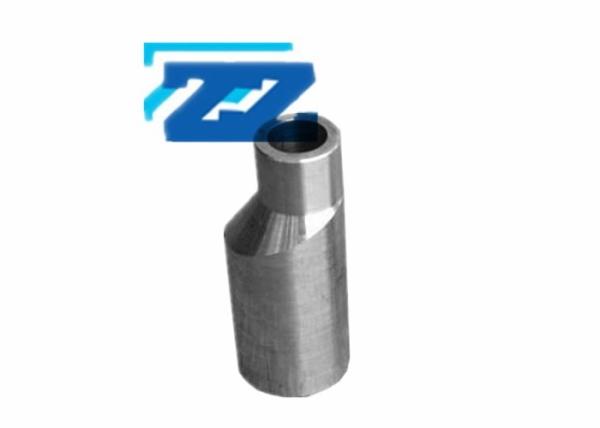

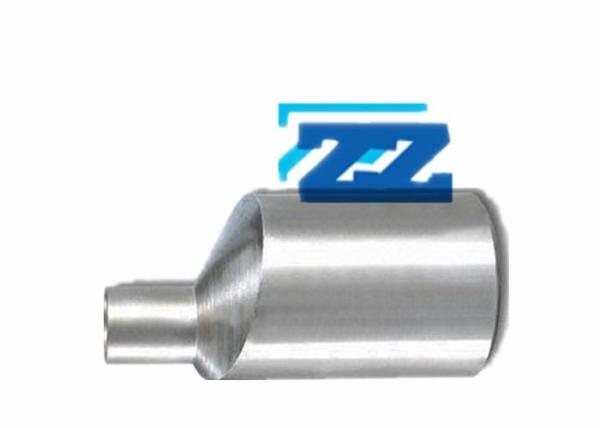

Ecc Swage Nipple 3 " X 2 " Sch40 A182 F12 Alloy Steel Pipe Fittings MSS-SP-95

Concentric and Eccentric Swage Nipples

Leading manufacturer and exporter Zizi offers forged swage nipple with variou dimensions and materials, the Eccentric Swage Nipple 1/2"X1" Sch 40 ASTM A182 F12 MSS-SP-95 exported to Morocco in reasonable price.

Forged swage nipple has two types: concentric type and eccentric type. They are available in various end types, such threaded end, plan end and beveled end. What's more, the two end can be same or different.

Swage Nipple Dimensions

Size

NPS 1/4 to 12 inch / DN8-DN300
Pressure Rating Sch 10s, Sch 20s, STD, Sch 40s, XS, Sch 80s
Standard MSS-SP-95
Type Concentric and Eccentric Swage Nipple
End Type TBE, TOE, PBE, POE, BBE, BOE

Ecc Swage Nipple Alloy Steel Pipe Fittings 3

Carbon Steel Forged Nipple

ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70

Alloy Steel Swage Nipple

ASTM A182 F1, F5, F9, F11, F12, F22, F91

Stainless Steel Eccentric Swage

ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321, F347

Duplex Steel Eccentric Nipple

ASTM A182 F51, F53, F55,F56, S31803, 32205, 32550, 32750, 32760

Swage Nipple Weight

Ecc Swage Nipple Alloy Steel Pipe Fittings 3

3" x 2" Swage Nipple

Package

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped forged swage nipple with plastic foam.
  • Packed stainless steel fittings into cartons and wooden cases.

Ecc Swage Nipple Alloy Steel Pipe Fittings 3

Inspection

  • Surface. Touch and visual the surface to make sure it is smooth.
  • Marking. Check if the marking is clear and complete.
  • Size. Measure the size of diameter, thickness, height of end to end.

Advantage of Swage Nipple Sch 80

  • Low Cost
  • Good Quality
  • Safe Package
  • Reliable Shipment

ASTM A182 F12 Chemical Composition

C Mn P S Si Cr Mo
0.05-0.15 0.3-0.6 0.045 0.045 0.5 0.8-1.25 0.44-0.65

ASTM A182 F12 Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 220 (Mpa) 20 (%)
