ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F11
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
Alloy Steel A182 F11
Connection :
Socket Weld
Products :
Sockolet, Threadolet, Weldolet, Latrolet, Elbolet, Nipolet,
Size :
1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure :
Class 3000, 6000
Standard :
MSS SP-97
Packing :
Plastic Foam, Wooden Cases, Pallets, 20FT Container
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

ASTM A182 F11 Pipe Fittings 4 x 3 / 4 in Alloy Steel Sockolet 3000LB MSS SP-97

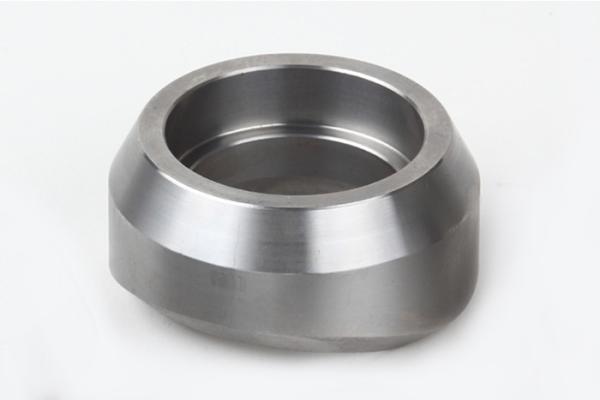

ASTM A182 F11 Sockolet

High quality ASTM A182 F11 Pipe Fittings manufacturer and exporter Zizi supplies 4 x 3/4 inch class 3000 sockolet to Peru, they are produced in accordance with MSS SP-97.

Branch outlet fittings is prevanlet because they are reliable, simple application and high cost-effective. They are used to provide a smaller branch form a larger diameter run pipe. Sockolet is applied in small diameter pipelines with high pressure and temperature.

Sockolet MSS SP-97 Dimensions

Run Pipes Diameter DN8– 300 / NPS1/4 – 36
Branch Diameter DN6-100/ NPS 1/8-4
Pressure Rating Class 3000, 6000
Standard MSS-SP-97
Surface Anti rust Oil, Galvanized
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97

ASTM A182 F11 Chemical Composition, %

C Mn P S Si Cr Mo
0.05-0.15 0.3-0.6 0.03 0.03 0.5-1 1-1.5 0.44-0.65

ASTM A182 F11 Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 205 (Mpa) 20 (%)

Sockolet Weight

ASTM A182 F11 Stainless Steel Forged Fittings , 4 X 3 / 4 Inch 3000LB Weldolet Threadolet Sockolet MSS SP 97

Package of Alloy Steel Forged Fittings

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed ASTM A182 F11 Forged Fittings into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of ASTM A182 F11 Pipe Fitting

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material grade, pressure, heat no.
  3. Measure the size. Such as diameter, thickness, height of end to end.

Advantage of Socket Weld Outle

  • Reasonable Price
  • ISO Certified Quality
  • Short Delivery
  • Safe Package
  • Abundant Stock
