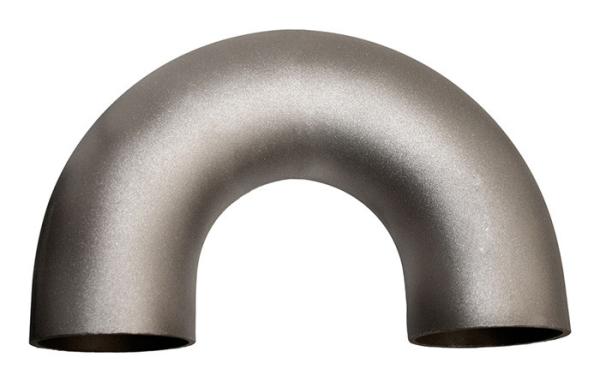

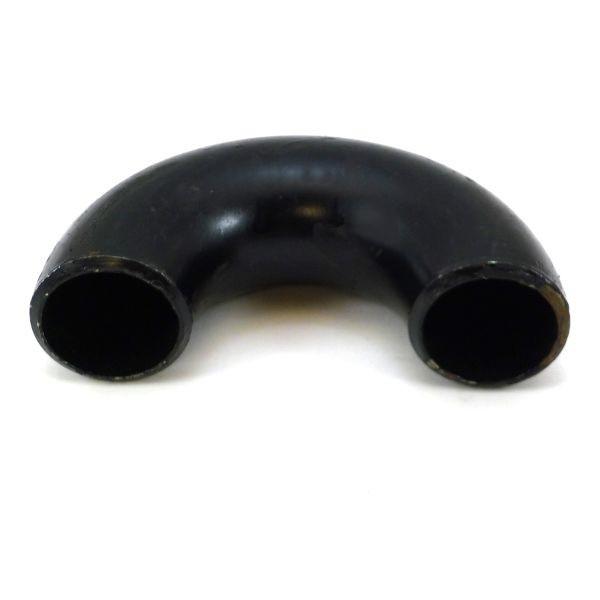

180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10 Sch 40 Butt Weld
Specifications
Brand Name :
ZZ
Model Number :
ASTM A234 WP5
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
Alloy Steel A234 WP5
Connection :
Butt Weld
Shape :
Round
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Form :
Seamless Pipe Cap, Welded Pipe Cap, End Cap
Standard :
ANSI, DIN, ASME B16.9
Technics :
Rolled
Description

180 Return Bend Alloy Steel ASTM A234 WP5 10" Sch 40 ASME B16.9

Alloy Steel WP5 Pipe Fittings

Best quality180 Return Bend are available in various dimensions and degrees. Based on the demands of customer, the 10" Sch 40 pipe bends are made of alloy steel ASTM A234 WP5 according to ASME B16.9. The quality is guaranteed by our skilled workers.

180 Degree Return Bend, also called U-Bend, is a pipe fitting that used to change the direction of flows. It is applied in oil and gas plants, chemical and petrochemical plants, refineries and renewable energy plants, mostly in heat exchangers. It is welded onto the pipes so that provides a joint that leak proof, stable and less possibility for corrosion.

180 Return Bend Dimensions

180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10

Size 1/2″ to 48″
Thickness Sch 10s, 20, STD, 40S, XS, 80S, 120, 160
Standard DL/T515, SY5257, ASME B16.9 or customer’s technical drawings
Bend Radius R = 3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D
Bend Angle 15°, 30°, 45°, 60°, 90°, 135°, 180° or at customer’s option
Straight Length L Usually between 300mm and 1500mm
Carbon Steel ASTM A234 WPB, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70
Stainless Steel ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex Steel ASTM A815 UNS S31803, S32205, S32550, S32750, S32760
Low Temp Carbon Steel ASTM A420 WPL3,WPL6, WPL9

Return Bend Weight

180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10

Pipe Bend Weight Calculator

W=0.0387 * S( D – S ) * R / 1000

W = Weight (kg/piece).

S = Thickness Schedule.

D = Nominal Diameter.

R= Radius.

Package of Sch 40 Pipe Bends

180 Return Bend Alloy Steel Pipe Fittings ASTM A234 WP5 10

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed ASTM A234 WP5 Pipe Bend into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of A234 WP5 Fittings

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, height of end to end.

ASTM A234 WP5 Chemical Composition

C Mn P S Si Cr Mo
0.15 3-6 0.04 0.03 0.5 16-18 0.44-0.65

ASTM A234 WP5 Mechanical Properties

Tensile Strength Yield Strength Elongation
415-585 (Mpa) 205 (Mpa) 20 (%)

Advantage of Alloy Steel Buttweld Fittings

  • Reasonable Price
  • Good Quality
  • Fast Delivery
  • Safe Package
  • Reliable Shipment
