Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1 3000 # BSPP ASME B16 11
Specifications
Brand Name :
ZZ
Model Number :
ASTM A105
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
Carbon Steel A105
Connection :
Female Thread
Type :
Threaded Half Coupling, Threaded Full Coupling, Threaded Reducing Coupling
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Thread :
NPT, PT, PF, BSPT, BSPP
Surface :
Anti rust Oil, Galvanized
Description

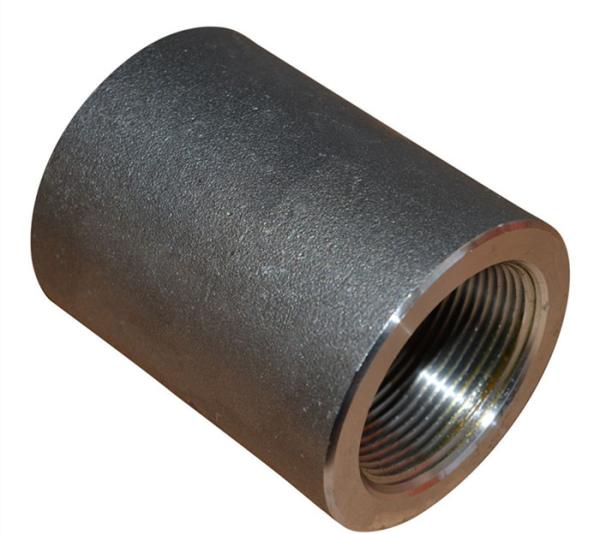

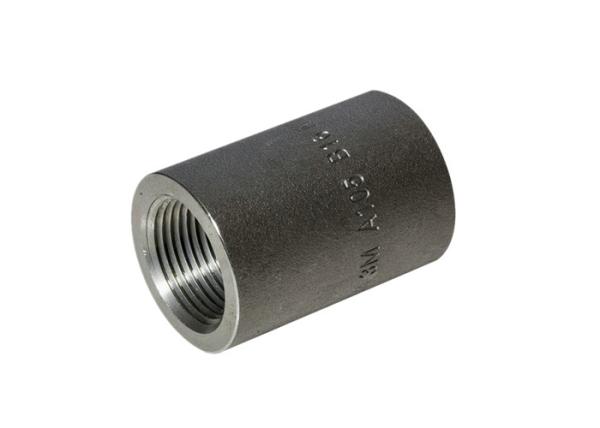

Carbon Steel Threaded Half Coupling ASTM A105 1" 3000# BSPP ASME B16.11

Carbon Steel Half Coupling

As an ISO certified supplier of Carbon Steel Forged Fittings, we offers qualified 1" 3000# ASTM A105 Threaded Half Coupling BSPP ASME B16.11 for customers with the most competitive price.

High quality A105 carbon steel fittings are good appearance, fine structure and withstand high pressure and tempertures. They perform well in small diameter pipe systems within 4 inch. Their high cost-effective makes them popular among customers.

Threaded Coupling Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 2000, 3000, 6000
Standard ASME B16.11, BS3799, GB/T 14626
Surface Anti-rust Oil or Galvanized

Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1

Alloy Steel Half Coupling

ASTM A182 F1, F5, F9, F11, F12, F22, F91

Stainless Steel Full Coupling

ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321, F347

Carbon Steel Straight Coupling

ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70

Duplex Steel Reducing Coupling

ASTM A182 F51, F53, F55, F56, S 31803, 32205, 32550, 32750, 32760

ASTM A105 Chemical Composition

C Mn P S Si
0.15 0.6-1.0 0.035 0.04 0.1

ASTM A105 Mechanical Properties

Tensile Strength Yield Strength Elongation
485 (Mpa) 250 (Mpa) 30 (%)

Full Coupling Weight Chart

Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1

Package of 1 Inch Half Coupling

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed 1 inch Half Coupling into cartons and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of A105 Threaded Coupling

Threaded Half Coupling Carbon Steel Pipe Fittings ASTM A105 1

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, standard, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end and thread.
  • Go/no Go Gauge to test the thread of half coupling.

Advantage of Forged Steel Fittings

  • Attractive price
  • Good quality
  • Deliver in short time
  • Offer in time
  • Safe package
  • Reliable shipment
