90 Degree Short Radius Elbow , 10 ASTM A234 WP22 Steel Tubing Elbows
90 Degree Short Radius Elbow , 10 ASTM A234 WP22 Steel Tubing Elbows
Specifications
Brand Name :
ZZ
Model Number :
ASTM A234 WP22
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A234 WP22
Connection :
Butt Weld
Standard :
ANSI, ASME B16.9
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Packing :
Plastic Foam, Wooden Cases, Pallets
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

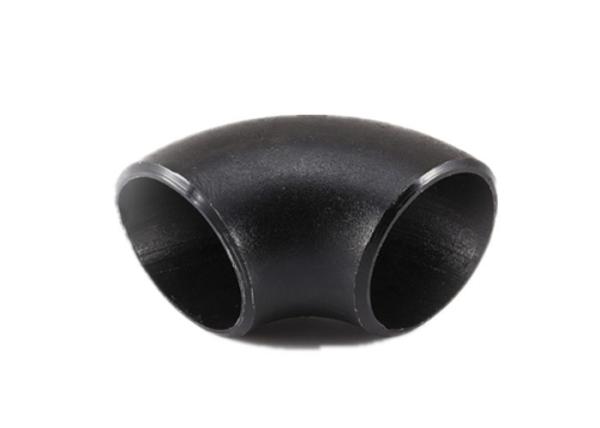

90 Degree Short Radius Elbow 10" ASTM A234 WP22 Steel Pipe Fittings ASME B16.9

90 Degree Pipe Elbows

Best-selling pipe fittings that 90 Degree Short Radius Elbowis fabricated from high quality raw materials alloy steel ​ASTM A234 WP22 ASME B16.9, and in size 10" that suites industrial specific requirements, meet your demands of quality and price.

Even though long radius elbows are popular, but short radius elbow is more flexible when applying in narrow spaces. It suits for many industrial applications and performs well in high pressure, moderate and high temperature pipe systems and resistance to many corrosive environment.

10" Short Radius Elbow Dimensions

Wall Thickness Sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard ASME B16.9
Types Seamless, Welded, 90 Degree, 45 Degree, Long Radius, Short Radius
Stainless Steel ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317, WP321
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
Low Temp Carbon Steel ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

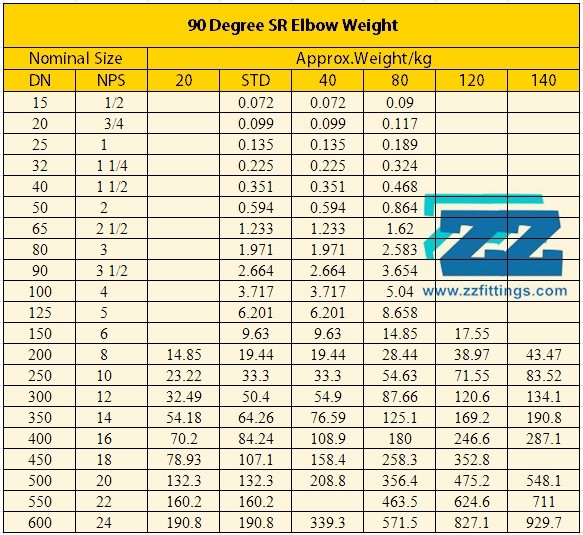

90 Degree Short Radius Elbow Weight

90 Degree Short Radius Elbow , 10

How to Calculate Weight of 90 Degree SR Elbow

  • W=0.0348 * S( D – S ) * R / 1000
  • W = Weight (kg/piece).
  • S = Thickness Schedule.
  • D = Nominal Diameter.
  • R = Radius

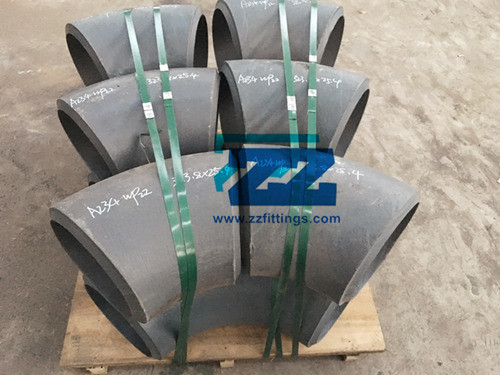

A234 WP22 Fittings

Package

90 Degree Short Radius Elbow , 10

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed 90 Degree SR Elbows into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

90 Degree Short Radius Elbow , 10

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, center to end.

Advantages

  • Reasonable Price
  • Good Quality
  • Fast Delivery
  • Safe Package
  • Reliable Shipment

ASTM A234 WP22 Chemical Composition

C Mn P S Si Cr Mo
0.05-0.15 0.3-0.6 0.04 0.04 0.5 2-2.5 0.87-1.13

ASTM A234 WP22 Mechanical Properties

Tensile Strength Yield Strength Elongation
415-585 (Mpa) 205 (Mpa) 20(%)
