12 STD ASTM A403 WP316 Long Radius Elbow , ASME B16 9 Stainless Steel 90 Degree Elbow
12 STD ASTM A403 WP316 Long Radius Elbow , ASME B16 9 Stainless Steel 90 Degree Elbow
Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel 316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A403 WP316
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Standard :
ANSI, ASME B36.19
Surface :
Anti-rust Oil, Black Primer
Description

90 Degree Long Radius Elbow 12 " STD ASTM A403 WP316 Steel Pipe Elbow ASME B16.9

Stainless Steel Elbows

Best-selling 90 Degree Long Radius Elbow 12 " STD ASTM A403 WP316 Steel Pipe Elbow ASME B16.9 is avaliable in seamless and welded types for your option, and there is also extensive selections for the dimensions and materials.

316 Stainless Steel Butt Weld Fittings are widely used diverse industries that require high quality and safety. 90 Degree Long Radius Elbow is the most common type, and short radius elbow is more suitable for small spaces application.

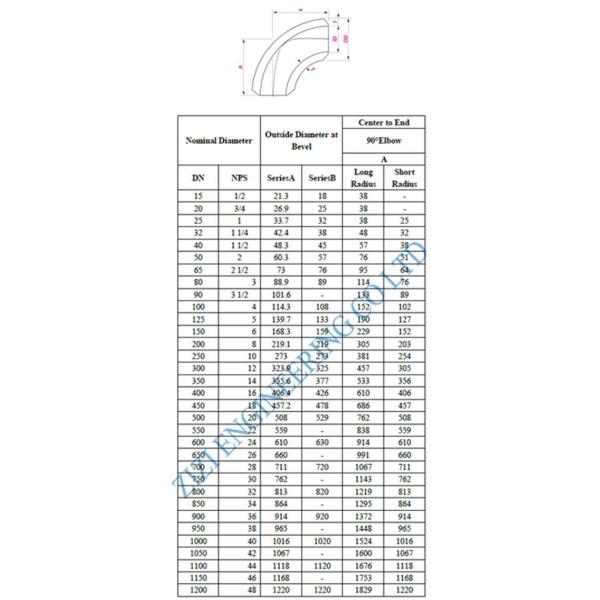

90 Degree Elbow Dimensions

Size 1/2" - 60"
Wall Thickness Sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard ASME B16.9, B36.19
Types Seamless, Welded, 90 Degree, 45 Degree, Long Radius, Short Radius
Stainless Steel ASTM A403 WP304/304L,WP304H,WP316/316L,WP310,WP317,WP321
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
Low Temp Carbon Steel ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

12

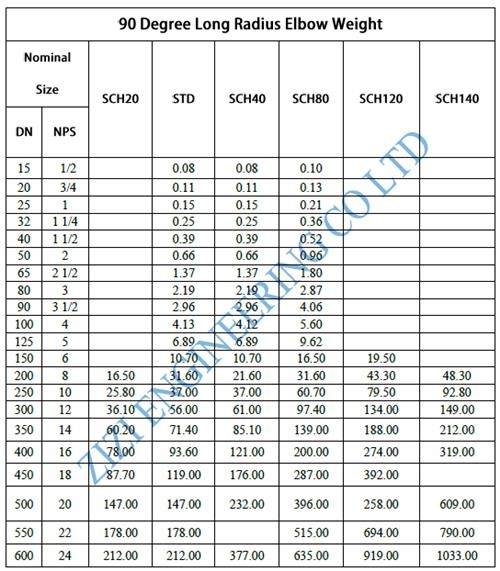

90 Degree Long Radius Elbow Weight

We just offer some weigts of common used sizes due to the extensive dimension ranges of butt weld elbows. If there is no sizes that you want, you can use the calculation formula or contact us.

12

How to Calculate Weight of 90 Degree LR Elbow

  • W=0.0387 * S( D – S ) * R / 1000
  • W = Weight (kg/piece).
  • S = Thickness Schedule.
  • D = Nominal Diameter.
  • R = Radius

Stainless Steel Long Radius Elbow

Advantages

  • Great Corrosion Resistance
  • High Quality
  • Long Service Life
  • Resistant to High Pressure and Temperature

Package

  • Wrapped pipe fittings with plastic foam.
  • Packed 90 Degree LR Elbows into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

12

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, grade, pressure, standard, heat No.
  • Measure the size. Such as diameter, thickness, center to end.
  • Test the properties of stainless steel 316 elbows.

ASTM A403 WP316 Chemical Composition

C Mn P S Si Ni Cr Mo
0.035 2 0.045 0.03 1 10-14 16-18 2-3

ASTM A403 WP316 Mechanical Properties

Tensile Strength Yield Strength Elongation
520 (Mpa) 205 (Mpa) 30 (%)
