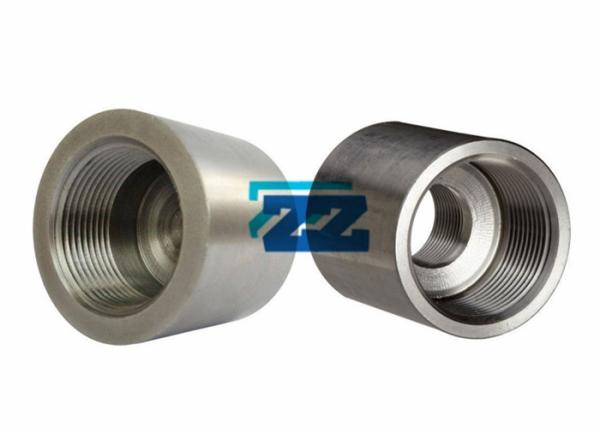

Female / Male Stainless Steel Tube Fittings , SS316 Industrial Pipe Fittings
Female / Male Stainless Steel Tube Fittings , SS316 Industrial Pipe Fittings
Female / Male Stainless Steel Tube Fittings , SS316 Industrial Pipe Fittings
Female / Male Stainless Steel Tube Fittings , SS316 Industrial Pipe Fittings
Female / Male Stainless Steel Tube Fittings , SS316 Industrial Pipe Fittings
Female / Male Stainless Steel Tube Fittings , SS316 Industrial Pipe Fittings
Specifications
Brand Name :
ZZ
Model Number :
SS316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Wooden Cases or Pallaets, LCL, 20ft Container
Material :
Stainless Steel
Connection :
Female and Male Thread
Product :
ELbow, Tee, Cross, Coupling, Cap, Plug, Bushing, Nipple
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
2000LB, 3000 LB, 6000 LB
Standard :
DIN,ANSI,ASTM,GB, JIS
Description

Stainless Steel Threaded Pipe Fittings 1 / 8 to 4 Inch SS316 ASME B16.11

Stainless Steel Threaded Pipe Fittings

Top quality stainless steel threaded pipe fittings are available in sizes of 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" with pressure of 2000lb, 3000lb, 6000lb according to ASME B16.11.

Thread Type

There are six thread types which most commonly used on forged pipe fittings.

  • BSPP/BSPT
  • PF
  • UN/UNF
  • NPT/NPTF
  • Metric Parallel
  • Metric Tapered

Threaded Pipe Fittings Dimensions

Size 1/8" to 4" / DN6 to ND100
Pressure Rating 2000LB, 3000LB, 6000LB
Standard ASME B16.11, BS3799, GB/T14626
Surface Anti-rust Oil or Galvanized
Stainless Steel Threaed Fittings ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321, F347
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S31803, S32205, S32550, S32750, S32760

Tolerances for Threaded Fittings

The dimensions and tolerances of threaded fittings in accordance with ANSI/ASME B16.11 as follow table. It is very useful for inspecting the fittings and make sure they are qualified.

Female / Male Stainless Steel Tube Fittings , SS316 Industrial Pipe Fittings

Forged Steel Fittings and Flanges

Marking and Packing

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed small diameter threaded fittings into cartons and wooden cases.
  • Stick the shipping mark on the outside of packages..

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as name, size, material grade, pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the thread of threaded pipe fittings by Go/no Go Gauge.

Advantages

  • ISO certified quality
  • One stop service
  • Attractive price
  • Experience 15 yeas

316 Stainless Steel Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

316 Stainless Steel Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)
