Specifications
Brand Name :
ZZ
Model Number :
ASTM A234 WPB
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Connection :
Butt Weld
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Standard :
ANSI, DIN, ASME B16.9
Surface :
Galvanized, Black Primer, PE Coating
Packing :
Plastic Foam, Wooden Cases, Pallets
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

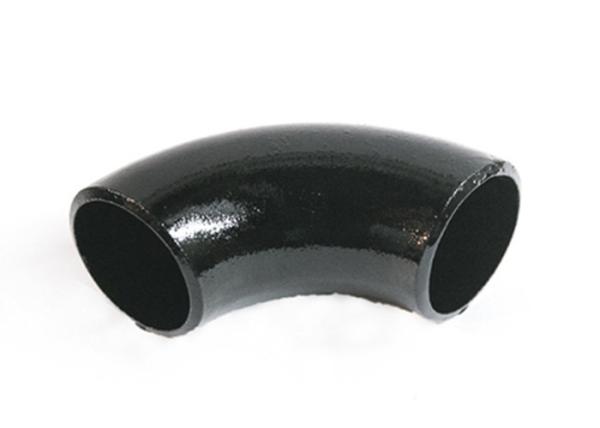

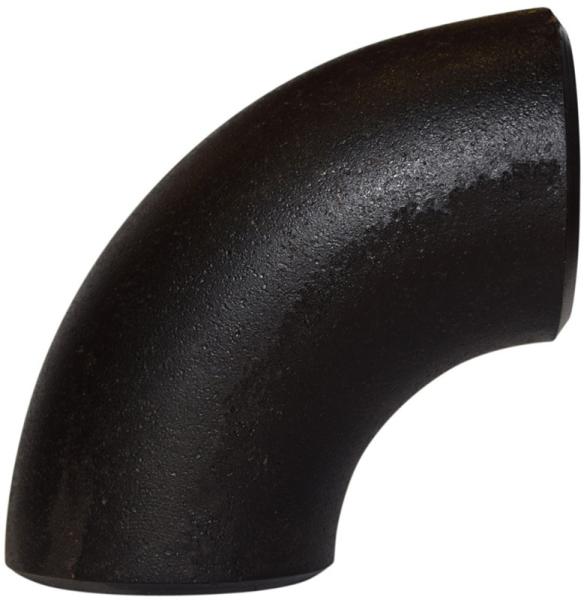

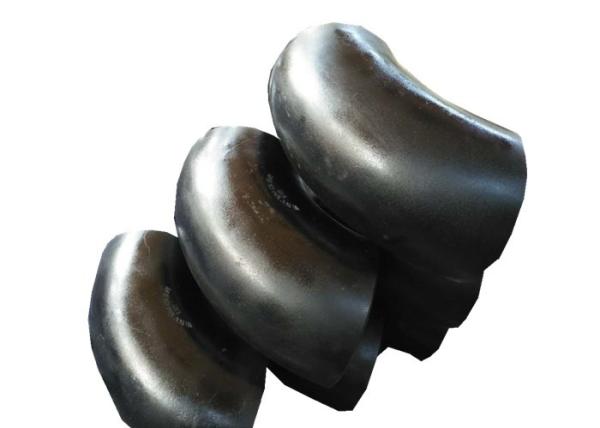

ASTM A234 WPB Elbow 90 Degree 16" Long Radius Sch 80 Seamless ASME B16.9

ASTM A234 WPB Elbow

Best price for ASTM A234 WPB 90 Degree Long Radius Elbows in size of 16" Sch 80, which made of the best quality carbon steel, they are all produced according to standard ASME B16.9 by ISO certified manufacturer.

Butt weld Elbow is essential fittings in pipe systems, it is used to change the direction of flow in different degrees. According to the manufacture method, it can be seamless or welded. What is the most common used type? Of course 90 degree long radius elbow , but short radius elbow is more suitable for small spaces application.

16 Inch 90 Degree Elbow Dimensions

90 Degree ASTM A234 WPB Elbow , 16

Size NPS 1/2" - 60"
Wall Thickness Sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard ASME B16.9, SH3408, HG/T21635, HG/T21631, SY/T0510
Types Seamless, Welded, 90 Degree, 45 Degree, Long Radius, Short Radius

Stainless Steel 90 Degree Elbow

ASTM A403 WP304/304L/304H, WP316/316L, WP310, WP317, WP321, WP347

Carbon Steel 45 Degree Elbow

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, A420 WPL3 / 6 / 9

Alloy Steel Short Radius Elbow

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Duplex Steel Long Radius Elbow

ASTM A815 UNS S 31803, 32205, 32550, 32750, 32760

90 Degree Long Radius Elbow Weight

90 Degree ASTM A234 WPB Elbow , 16

How to Calculate Weight of 90 Degree Elbow

  • W=0.0387 * S( D – S ) * R / 1000
  • W = Weight (kg/piece).
  • S = Thickness Schedule.
  • D = Nominal Diameter.
  • R = Radius

Carbon Steel A234 WPB Fittings

Marking and Packing

  • Marked with material, Lot No, size, standard and thickness.
  • Wrapped ASTM A234 WPB pipe fittings with plastic foam.
  • Packed 90 Degree Elbows into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

90 Degree ASTM A234 WPB Elbow , 16

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material grade, pressure, heat no.
  3. Measure the size. Such as diameter, thickness, center to end.

​Why Choose Us?

  • Low price
  • ISO certified quality
  • Short delivery
  • Safe package
  • Reliable shipment
  • Abundant stock

ASTM A234 WPB Chemical Composition

C Mn P S Si Cr Mo
0.3 0.29-1.06 0.05 0.058 1 0.4 0.15

ASTM A234 WPB Mechanical Properties

Tensile Strength Yield Strength Elongation
415-655 (Mpa) 240 (Mpa) 22 (%)
