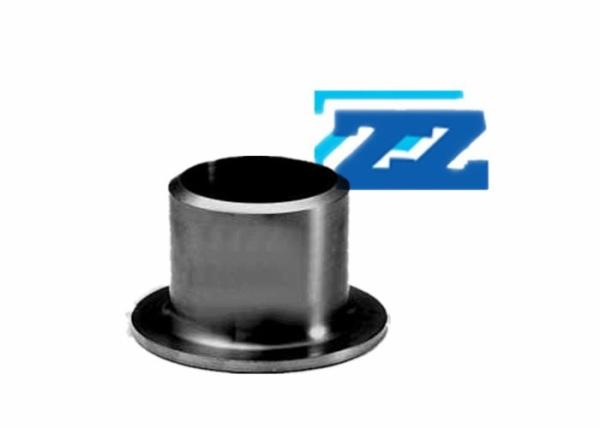

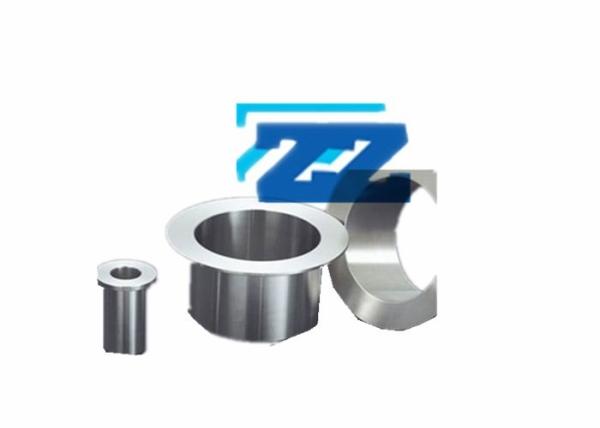

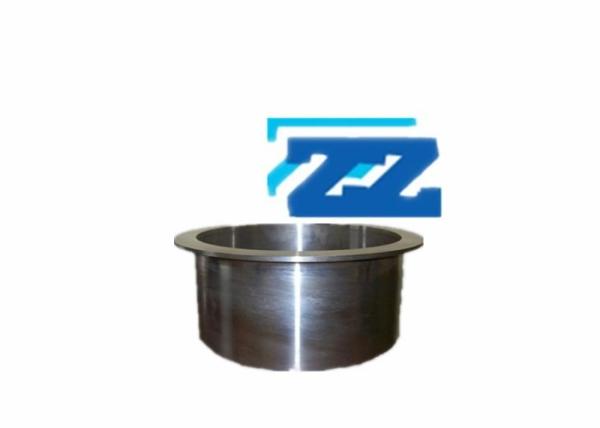

8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
8 Sch 80 Carbon Steel Pipe Fittings Stub End ASTM A420 WPL3 Long / Short Type
Specifications
Brand Name :
ZZ
Model Number :
ASTM A420 WPL3
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Size :
1/2" - 24"
Thickness :
sch 10S, 40S, 80S
Standard :
ASME B36.19, B16.9
Form :
Long Type and Short Type
Packing :
Plastic Foam, Wooden Cases, Pallets
Material :
Low Temperature Carbon Steel
Description

Carbon Steel Stub End 8 " Sch 80 ASTM A420 WPL3 Pipe Fittings ASME B16.9

Carbon Steel Stub End Manufacturer

ISO Certified manufacturer Zizi offers Carbon Steel Stub End in various dimensions and deliveries 8 " Sch 80 ASTM A420 WPL3 Pipe Fittings ASME B16.9 to customers in a short time.

Carbon steel pipe fittings are high quality and low cost, and they suit for many industries such as oil, gas and chemical. We suppliy forged and wrought carbon steel pipe fittings according to customer's needs.

Stub End ASME B16.9 Dimensions

Size NPS 1/2" - 24"
Wall Thickness Sch10S, 20, STD, 40, XS, 80
Standard ANSI / ASME B36.19, B16.9
Types Long and Short Types

8

Stainless Steel Stub End

ASTM A403 WP304/304L/304H, WP316/316L, WP310, WP317, WP321, WP347

Carbon Steel Stub End

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, A420 WPL3 / 6 / 9

Alloy Steel Seamless Stub End

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Duplex Steel Buttweld Stub End

ASTM A815 UNS S 31803, 32205, 32550, 32750, 32760

Stub End Carbon Steel Weight

This weight chart covers the weight of long type lap joint stub end from diameter 3/4" to 24", schedule from sch 10 to sch 80.

8

Stub End For Lap Joint Flange

Marking

"8" Sch 80 Stub End ASTM A420 WPL3 ASME B16.9

Surface

Wrapped pipe fittings with plastic foam.

Package

Put carbon steel sutb end into wooden cases.

Tagged labers on the outside of the package for easy indentification.

Inspection

Test if the surface is smooth and fine.

Check if the marking is correct and clear

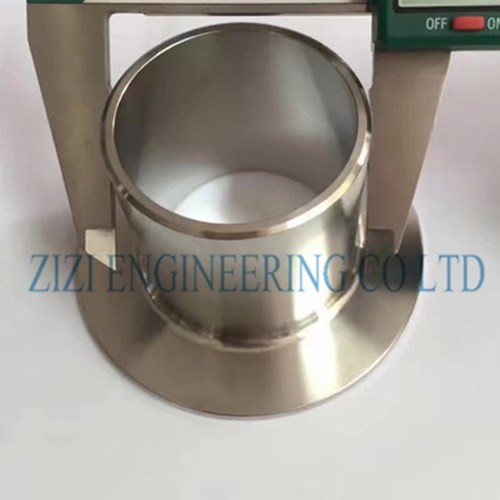

Measure and record the value of diameter, thickness, end to end.

8

Advantage of Carbon Steel Pipe Fitting

  • Resistance to tear and shrinkage
  • Availability in varied specifications
  • Heat-resistant
  • Extensive application ranges
  • Low cost

ASTM A420 WPL3 Chemical Composition

C Mn P S Si Ni Cr Mo
0.2 0.31-0.64 0.05 0.05 0.13-0.37 3.2-3.8 - -

ASTM A420 WPL3 Mechanical Properties

Tensile Strength Yield Strength Elongation
450-620 (Mpa) 240 (Mpa) 22 (%)
