Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F91
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 F91
Thread :
NPT, PT, PF, BSPT, BSPP
Type :
Threaded Half Coupling, Threaded Full Coupling, Threaded Reducing Coupling
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Packing :
Plastic bag, Carton and Wooden Case. 20FT Container
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

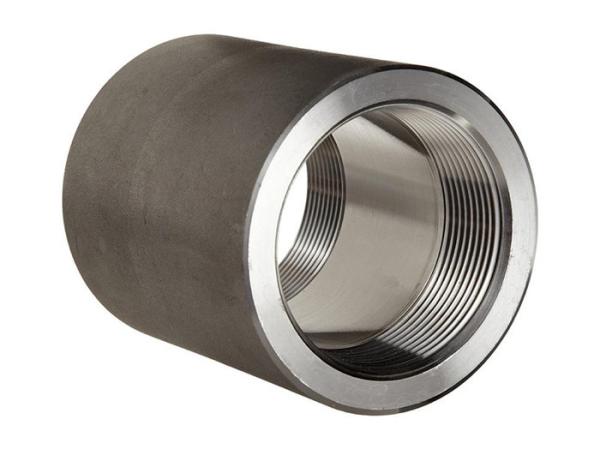

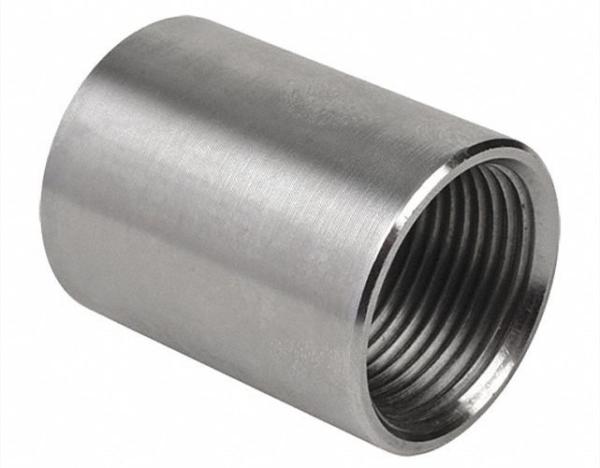

NPT Threaded Coupling 2 Inch Class 3000 ASTM A182 F91 ASME B16.11

Threaded Coupling

ISO certified manufacturer Zizi exports Forged Threaded Fittings to Asia, Africa, Latin America and Oceania, our NPT Threaded Coupling 2 Inch Class 3000 is made of best quality alloy steel ASTM A182 F91 according to ASME B16.11.

Threaded Coupling has female threads to connect pipes with male threads. NPT and BSP are two threads types that commonly used internationally. It is pressure resistance, leakproof and good looking.

NPT Coupling Dimensions

Size NPS 1/8" to 4" / DN 6 to 100
Pressure Rating 2000LB, 3000LB, 6000LB
Standard ASME B16.11, BS3799, GB/T14626
Surface Anti-rust Oil or Galvanized

2 Inch Class 3000 Threaded Pipe Coupling , ASTM A182 F91 Stainless Steel Npt Fittings

Alloy Steel Threaded Coupling
ASTM A182 F1, F5, F9, F11, F12, F22, F91
Stainless Steel NPT Coupling
ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321, F347
Carbon Steel Pipe Coupling
ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Duplex Steel Class 3000 Forged Coupling
ASTM A182 F51, F53, F55, F56, S 31803, 32205, 32550, 32750, 32760

ASTM A182 F91 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08-0.12 0.3-0.6 0.02 0.01 0.2-0.5 0.4 8-9.5 0.85-1.05

ASTM A182 F91 Mechanical Properties

Tensile Strength Yield Strength Elongation
585 (Mpa) 415 (Mpa) 20 (%)

Full Coupling Weight Chart

2 Inch Class 3000 Threaded Pipe Coupling , ASTM A182 F91 Stainless Steel Npt Fittings

Package of NPT Threaded Fittings

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed ASTM A182 F91 NPT Coupling into cartons and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of 2 Inch Threaded Couplin

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material grade, pressure, heat no.
  3. Measure the size. Such as diameter, thickness, height of end to end.
  4. Go/no Go Gauge to test the threads of alloy steel coupling

2 Inch Class 3000 Threaded Pipe Coupling , ASTM A182 F91 Stainless Steel Npt Fittings

Why Choose Us?

  • Attractive price
  • ISO certified quality
  • Short delivery
  • Good package
  • Abundant stock
  • One stop service
