Specifications
Brand Name :
ZZ
Model Number :
BSP Pipe Fittings
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons, Wooden Cases, LCL, 20ft Container
Technics :
Forged
Connection :
BSPP, BSPT
Product :
ELbow, Tee, Cross, Coupling, Cap, Plug, Bushing, Nipple
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
2000LB, 3000 LB, 6000 LB
Standard :
DIN,ANSI,ASTM,GB, JIS
Description

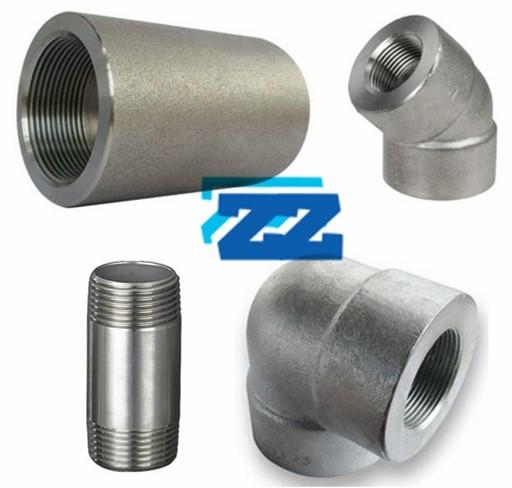

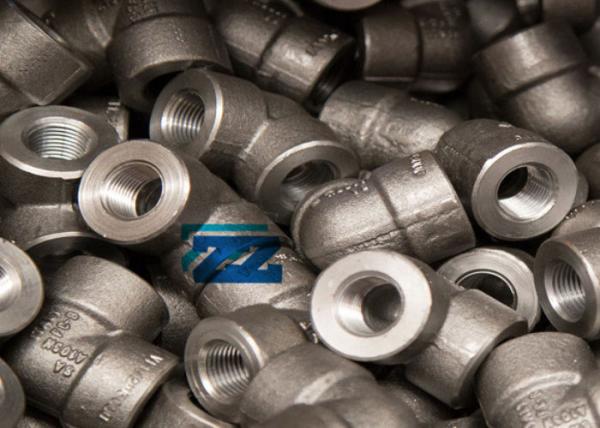

BSP Threaded Pipe Fittings 1 / 8 to 4 Inch 3000LB Carbon Steel ASME B16.11

BSP Threaded Pipe Fittings

Quality carbon steel BSP threaded pipe fittings are highly in demand, which are available in sizes of 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2" and 2" with pressure of 2000lb, 3000lb, 6000lb according to ASME B16.11.

What is NPT?

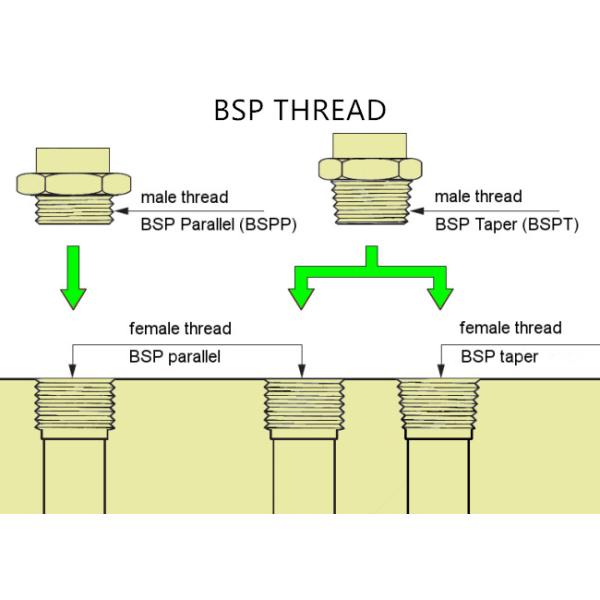

BSP thread form stands for British Standard Pipe and is common in Australia and the commonwealth countries. It is based on trade size rather than actual diameter which can lead to some confusion when measuring ports.
There are two types of BSP threads;
- Parrallel (BSPP) - also known as G or Rp
- Tapered (BSPT) - also know as R or Rc
Both threads have the same pitch, angle (55 degrees) and shape (rounded peaks and valleys).

3000LB BSPT / BSP Pipe Fittings , Galvanized Carbon Steel Pipe Fittings

Carbon Steel Threaded Fittings Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure 2000LB, 3000LB, 6000LB
Standard ASME B16.11, BS3799, GB/T14626
Surface Anti-rust Oil, Galvanized
CS Material ASTM A105N, A350 LF2, LF3, ASTM A694 F52, F60, F65, F70

Tolerances for Threaded Fittings

The dimensions and tolerances of threaded fittings in accordance with ANSI/ASME B16.11 as follow table. It is very useful to make sure the products qualified.

3000LB BSPT / BSP Pipe Fittings , Galvanized Carbon Steel Pipe Fittings

Carbon Steel Forged Fittings and Flanges

Marking and Packing

  • Marking with name, type, grade, size, pressure, thread and standard.
  • Packing stainless steel threaded pipe fittings into cartons and wooden cases.
  • Sticking the waterproof paper of shipping mark on the outside of packages.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as name, size, material grade, pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of center or end to end.
  • Test the chemical composition of stainless steel forged fittings.
  • Test the thread of threaded pipe fittings by Go/no Go Gauge.

Advantages

  • ISO certified quality
  • One stop service
  • Reasonable price
  • Experience 15 years
  • Export 35 countries

Forged Carbon Steel Properties

Chemical Composition

Grade C Mn P S Si Cr Ni
A105 0.35 0.6-1.05 0.035 0.04 0.1-0.35 0.3 0.4
A350 LF2 0.3 0.6-1.35 0.035 0.04 0.15-0.3 0.3 /
A516 Gr70 0.1-0.22 1-1.7 0.03 0.03 0.6 0.3 0.3

Mechanical Properties

Grade Tensile Strength Yield Strength Elongation
A105 485 (Mpa) 250 (Mpa) 22 (%)
A350 LF2 485-655 (Mpa) 250 (Mpa) 22 (%)
A516 Gr70 515-650 (Mpa) 335 (Mpa) 21 (%)
