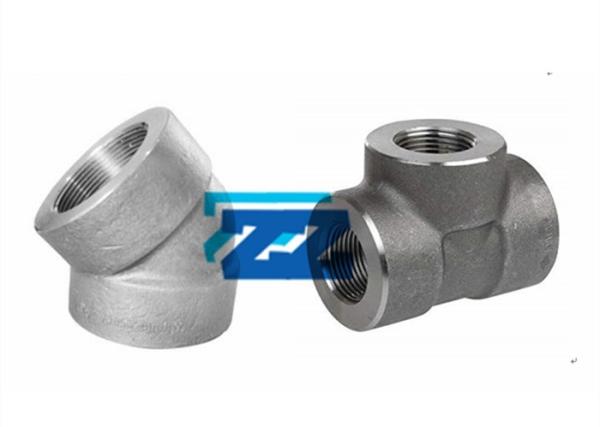

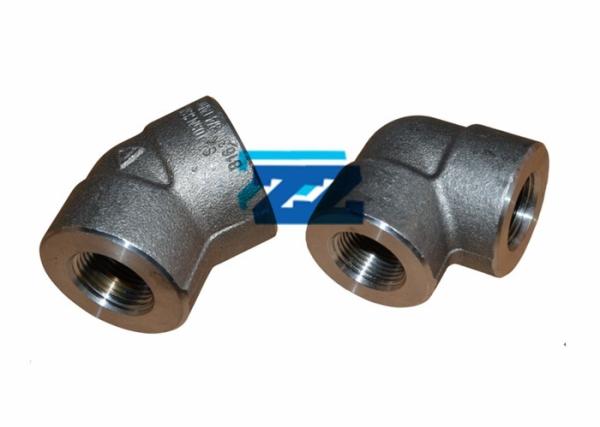

Alloy Steel Threaded Pipe Fittings ASTM A182 F22 2000LB Pressure JIS Standard
Alloy Steel Threaded Pipe Fittings ASTM A182 F22 2000LB Pressure JIS Standard
Alloy Steel Threaded Pipe Fittings ASTM A182 F22 2000LB Pressure JIS Standard
Alloy Steel Threaded Pipe Fittings ASTM A182 F22 2000LB Pressure JIS Standard
Alloy Steel Threaded Pipe Fittings ASTM A182 F22 2000LB Pressure JIS Standard
Alloy Steel Threaded Pipe Fittings ASTM A182 F22 2000LB Pressure JIS Standard
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F22
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Wooden Cases or Pallaets, LCL, 20ft Container
Material :
Stainless Steel
Connection :
Female and Male Thread
Product :
ELbow, Tee, Cross, Coupling, Cap, Plug, Bushing, Nipple
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
2000LB, 3000 LB, 6000 LB
Standard :
DIN,ANSI,ASTM,GB, JIS
Description

Alloy Steel Threaded Pipe Fittings 1 / 8 to 4 Inch ASTM A182 F22 ASME B16.11

Alloy Steel Threaded Pipe Fittings

Top quality alloy steel threaded pipe fittings are available in sizes of 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" with pressure of 2000lb, 3000lb, 6000lb according to ASME B16.11.

Thread Type

There are six thread types which most commonly used on forged pipe fittings.

  • BSPP/BSPT
  • PF
  • UN/UNF
  • NPT/NPTF
  • Metric Parallel
  • Metric Tapered

Threaded Pipe Fittings Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating 2000LB, 3000LB, 6000LB
Standard ASME B16.11, BS3799, GB/T14626
Surface Anti-rust Oil
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321, F347
Caron Steel ASTM A105N, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel Threaded Fittings ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S31803, S32205, S32550, S32750, S32760

Tolerances for Threaded Fittings

The dimensions and tolerances of threaded fittings in accordance with ANSI/ASME B16.11 as follow table. It is very useful for inspecting these fittings and make sure they are qualified.

Alloy Steel Threaded Pipe Fittings ASTM A182 F22 2000LB Pressure JIS Standard

Forged Steel Fittings and Flanges

Marking and Packing

  • Marked with name, type, grade, size, pressure, thread and standard.
  • Packed alloy steel threaded pipe fittings into cartons and wooden cases.
  • Stick the waterproof paper of shipping mark on the outside of packages.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as name, size, material grade, pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the thread of threaded pipe fittings by Go/no Go Gauge.

Advantages

  • ISO certified quality
  • One stop service
  • Attractive price
  • Experience 15 yeas

ASTM A182 F22 Chemical Composition

C Mn P S Si Cr Mo
0.05-0.15 0.3-0.6 0.04 0.04 0.5 2-2.5 0.45-0.65

ASTM A182 F22 Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 205 (Mpa) 20 (%)
