High Pressure Threaded Pipe Fittings 3 3000LB Stainless Steel Material
High Pressure Threaded Pipe Fittings 3 3000LB Stainless Steel Material
High Pressure Threaded Pipe Fittings 3 3000LB Stainless Steel Material
High Pressure Threaded Pipe Fittings 3 3000LB Stainless Steel Material
High Pressure Threaded Pipe Fittings 3 3000LB Stainless Steel Material
High Pressure Threaded Pipe Fittings 3 3000LB Stainless Steel Material
Specifications
Brand Name :
ZZ
Model Number :
High Pressure Threaded Fittings
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons, Wooden Cases, LCL, 20ft Container
Head Code :
Round, Square, Straight, Reducing, Hex Head, Lateral
Connection :
BSPP, BSPT, NPT, FNPT, PF, PT
Product :
ELbow, Tee, Cross, Coupling, Cap, Plug, Bushing, Nipple, Lateral
Size :
NPT 1/8" to 4", DN 6 to 100
Pressure :
2000LB, 3000 LB, 6000 LB
Standard :
DIN, ANSI, ASTM, GB, JIS
Description

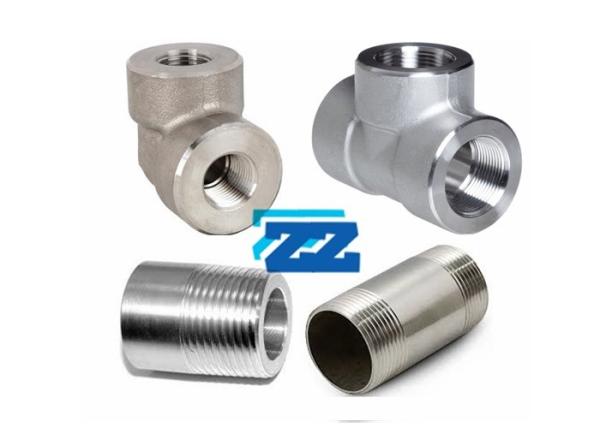

High-Pressure Stainless Steel Threaded Pipe Fittings 3" 3000LB ASME B16.11

High Pressure Forged Steel Fittings

High-pressure stainless steel threaded pipe fittings are made in accordance with ASME B16.11 and BS3799. They are used in extensive range, such as marine, chemical, petrochemical, power generation and other industries. The typical material grades are SS304 and SS316.

Feature

  • Size Range: 1/4" to 4"
  • Design Standard: ASME B16.11, BS3799
  • Connection: Female and Male Thread
  • Material: SS304L and SS316L
  • ​Working Pressure: 3000# / 6000#
  • Brand: ZIZI
  • Origin:China

Stainless Steel Threaded Pipe Fittings

ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321,F347

Alloy Steel Threaded Pipe Fittings

ASTM A182 F1, F5, F9, F11, F12, F22, F91

Carbon Steel Threaded Pipe Fittings

ASTM A105N, A350 LF2, LF3, ASTM A694 F52, F60, F65, F70

Duplex Stainless Threaded Pipe Fittings

ASTM A182 F44, F51, F53, F55, F56, S31803, S32205, S32550, S32750, S32760

Tolerances for Threaded Fittings

The dimensions and tolerances of threaded fittings in accordance with ANSI/ASME B16.11 as follow table. We will know if the products are qualifed based on it.

High Pressure Threaded Pipe Fittings 3

High-Pressure Stainless Steel Threaded Pipe Fittings

When the threaded fittings are finished manufacutering, our workers will do the marking that covers product name, type, material grade, size, pressure ratings, thread type, standard and heat No.

After the marking, they will surface stainless steel threaded fittings with anti-rust oil againest the rust duing the shipment, then start to package after done that.

Firstly, wrapped them with plastic foam. Secondly, lining up them into carons and make a list. Finally put all cartons into woode case and stick the shipping mark.

Inspection services

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as name, type, size, material grade, pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of center or end to end.
  • Test the thread of high-pressure stainless steel threaded pipe fittings by Go/no Go Gauge.

Why Choose Us?

  • ISO certified quality
  • One stop service
  • Attractive price
  • Experience 15 years
  • Export 35 countries

Forged Stainless Steel Properties

Chemical Composition

Grade C Mn P S Si Cr Ni
304 0.08 2 0.045 0.03 1.0 18-20 8-11
304L 0.03 2 0.045 0.03 1.0 18-20 8-13
316 0.08 2 0.045 0.03 1.0 16-18 10-14
316L 0.03 2 0.045 0.03 1.0 16-18 10-14

Mechanical Properties

Grade Tensile Strength Yield Strength Elongation Hardness
304 515 (Mpa) 205 (Mpa) 30 (%) 215
316 515 (Mpa) 205 (Mpa) 30 (%) 215
