1 / 8 - 4 Inch Socket Weld Pipe Fittings Carbon Steel Material GB / T Standard
1 / 8 - 4 Inch Socket Weld Pipe Fittings Carbon Steel Material GB / T Standard
1 / 8 - 4 Inch Socket Weld Pipe Fittings Carbon Steel Material GB / T Standard
1 / 8 - 4 Inch Socket Weld Pipe Fittings Carbon Steel Material GB / T Standard
1 / 8 - 4 Inch Socket Weld Pipe Fittings Carbon Steel Material GB / T Standard
1 / 8 - 4 Inch Socket Weld Pipe Fittings Carbon Steel Material GB / T Standard
Specifications
Brand Name :
ZZ
Model Number :
3000 LB Pipe Fittings
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
80000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Technics :
Forged
Pressure :
3000#, 6000#, 9000#d
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Material :
Carbon Steel, Alloy Steel, Stainless Steel
Product :
Elbow, Tee, Cross, Coupling, Cap, Lateral Tee
Standard :
ASME, ANSI, DIN, GB/T, JIS
Description

Forged Socket Weld Fittings 3000 LB Pipe Fittings 1 / 8 - 4 Inch ASME B16.11

Forged Sccket Weld Fittings

As a reliable supplier, manufacturer of high pressure forged socket weld steel pipe fittings, we always offer a attractive price in pressure rating of 3000 LB, 6000 LB and 9000 LB and diameter rating 1 / 8 - 4 Inch. How to guarantee the quality? Selecting the best raw material and manufactured in accordance with ASME B16.11.

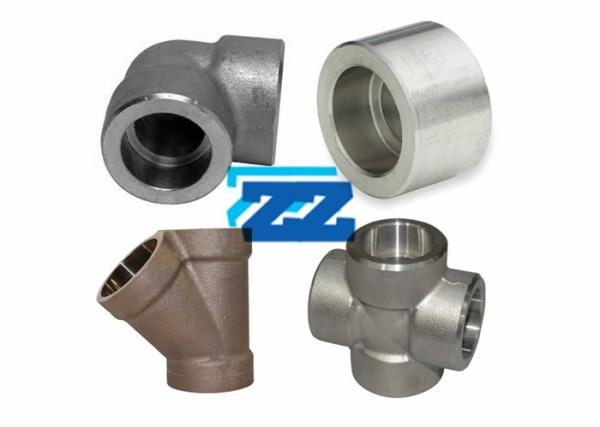

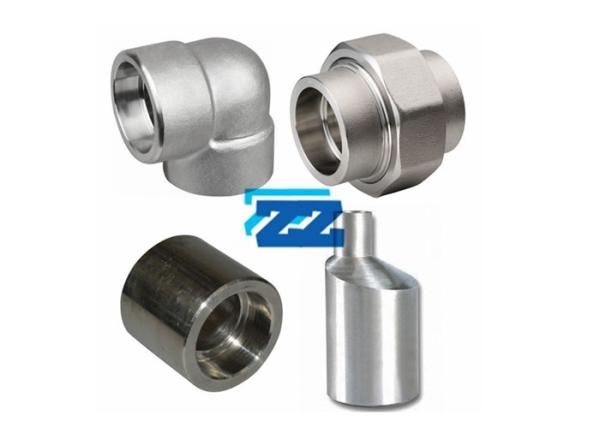

Socket Weld Pipe Fittings Type

There are many types that straight coupling, reducer coupling, 90 degree elbow, 45 degree elbow, equal tee, reducing tee, full coupling, half coupling, socket weld cap and lateral.

Forged Fittings Dimensions

Size 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure Rating 3000LB, 6000LB, 9000LB
Standard ASME B16.11, BS3799, JIS B2316, HG/T21634, SH3410, GB/T14383
Surface Anti-rust Oil

Carbon Steel Forged Fittings

ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70

Alloy Steel Socket Weld Fittings

ASTM A182 F1, F5, F9, F11, F12, F22, F91

Stainless Steel Threaded Fittings

ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321, F347

Tolerances for Socket Weld Fittings

The dimensions and tolerances for socket weld pipe fittings in accordance with ANSI/ASME B16.11 as follow table chart. It is very useful during the manufacturing and inspecting.

1 / 8 - 4 Inch Socket Weld Pipe Fittings Carbon Steel Material GB / T Standard

3000 LB Pipe Fittings

Features

  1. Corrision resistance
  2. Beauty surface
  3. Easy installation
  4. Small diameter

Marking and Packing

  • Marking with name, type, material, size, standard, pressure, Lot No.
  • Packing 3000 LB socket weld pipe fittings into cartons and wooden cases.
  • Sticking waterproof of shipping mark on the outside of the wooden cases.

Inspection

  1. Visual the surface.
  2. Check the marking.
  3. Measure the dimensions.

Why Choose Us?

  • ISO certified quality
  • Strict inspection
  • Delivery in time
  • One stop services
