Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F11
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
7-10 Days
Packaging Details :
Cartons and Wooden Cases
Standard :
DIN, ANSI, ASME B16.11, BS, JIS, ASMT, GB
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
3000 LB, 6000 LB, 9000 LB
Type :
Elbow, Tee, Union, Coupling, Cap
Material :
Stainless Steel, Carbon Steel and Alloy Steel
Packing :
Plastic Foam, Carton & Wooden Case, 20FT Container
Description

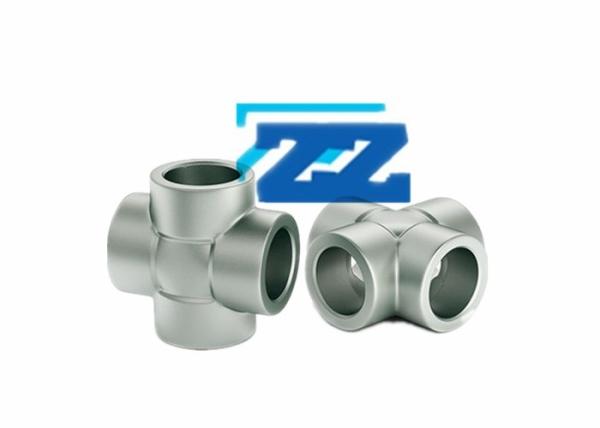

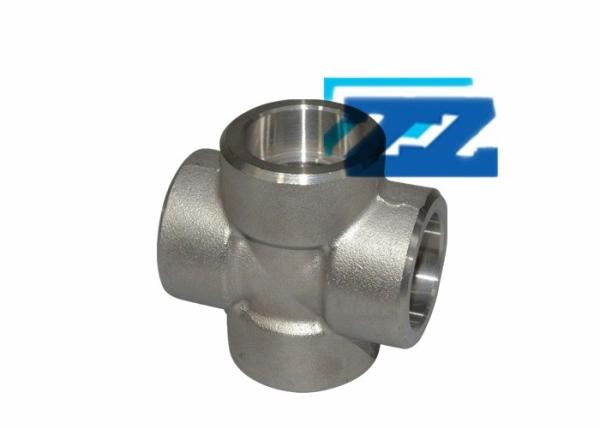

Socket Weld Cross 2 1 / 2 " 6000LB ASTM A182 F11 ASME B16.11 Pipe Fittings

Forged Steel Pipe Fittings Cross

Professional manufacturer of forged stainless steel pipe fittings Zizi produces Socket Weld Cross 2 1 / 2 " 6000LB ASTM A182 F11 ASME B16.11 Pipe Fittings with best quality materials.

What is Socket Weld Cross?

Pipe cross is smailiar with pipe tee, which is used to connect pipes and provide branches. It has four outlets.

Socket weld is the connection way. Except that, forged cross is also available in threaded type. Both socket weld cross and threaded cross are mainly used for small diameter pipes within 4 inch.

Socket Weld Cross Dimensions

Size NPS 1/8" to 4" / DN6 to DN100
Pressure Rating 3000LB, 6000LB, 9000LB
Standard ASME B16.11, BS3799, GB/T14626
Surface

Anti-rust Oil or Galvanized
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Carbon Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Stainless Steel ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321, F347
Duplex Stainless Steel ASTM A182 F51, F53, F55,F56, S31803, S32205, S32550, S32750, S32760

Cross 2 1 / 2

ASTM A182 F11 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

ASTM A182 F11 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Socket Weld Cross Weight Chart

The weight chart are available in 1/8" to 4" in pressure of 3000LB, 6000LB and 9000LB.

Cross 2 1 / 2

Forged Pipe Fittings

Marking

We do marking as " CROSS 2 1/2" 6000LB ASTM A182 F11 218" on pipe cross body, which covers name, size, pressure, thread, material and heat No.

Surface

Use anti-rust oil to protect pipe cross during the shipping.

Wrapped these cross tee with plastic film.

Package

Line up all 2 1/2" socket weld cross into cartons.

Tagged labers on the cartons.

Pack all cartons in wooden cases and bundle it with belts.

Shipping mark on the outside of wooden case for easy indentification.

Advantage

  • Low Cost
  • High Quality
  • Fast Delivery
  • One Step Service
