Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83
Specifications
Brand Name :
ZZ
Model Number :
Alloy Steel ASTM A182 F22
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases
Material :
ASTM A182 F22
Connection :
Threaded
Type :
90 Degree Threaded Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3",
Standard :
ASME/ANSI B16.11, BS3799, MSS-SP-83
Pressure :
3000 LB, 6000 LB, 9000 LB
Surface :
Anti rust Oil, Galvanized
Packing :
Carton, Wooden Case
Description

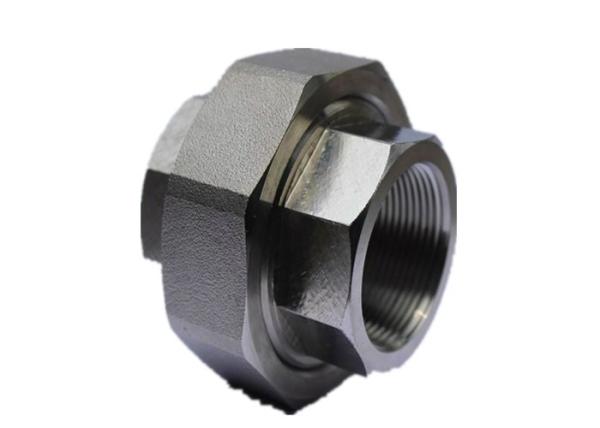

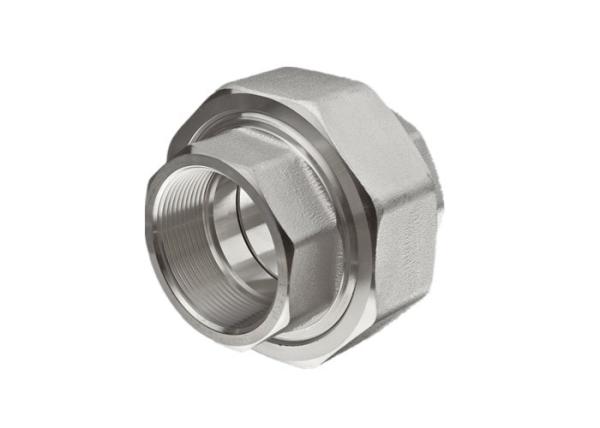

Threaded Union 3/4 Inch BSPP Class 3000 ASTM A182 F22 MSS-SP-83

Forged Steel Unions

Zizi is an ISO and CE certified company which involved in manufacturer, exporter, supplier and stockist of Threaded Union 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS-SP-83. With large supply range, high quality and fast delivery, our BSP Threaded Unions have been shipping for more than 20 countries and received their acceptance. They are extensive used in varies industries like engineering, petroleum and chemical industry.

MSS-SP-83 Union Dimensions

Size 1/8" to 3" / DN6 to DN80
Pressure Rating Class 3000, 6000, 9000
Standard

ASME/ANSI B16.11, BS3799, MSS-SP-83
Surface

Anti-rust Oil or Galvanized
Type Socket Weld Union, Threaded Union
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83

ASTM A182 F22 Chemical Composition

C Mn P S Si Cr Mo
0.05-0.15 0.3-0.6 0.04 0.04 0.52-2.5 0.87 1.13

ASTM A182 F22 Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 205 (Mpa) 20 (%)

Threaded Union Weight

Forged Steel Unions Threaded Pipe Fittings 3 / 4 Inch BSPP Class 3000 ASTM A182 F22 MSS SP 83

Package of 3/4" Threaded Union

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped 3/4" forged steel union with plastic foam
  • Packed Threaded unions into cartons and wooden cases.

Inspection of BSP Unions

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material grade, pressure, heat no.
  3. Measure the size. Such as diameter, thickness, height of end to end.

Application of Class 3000 Pipe Union

  • Power industry
  • Marine industry
  • Chemical industry
  • Oil & gas industry
  • Pipeline engineering
  • Petrochemical industry
  • Food processing industry
