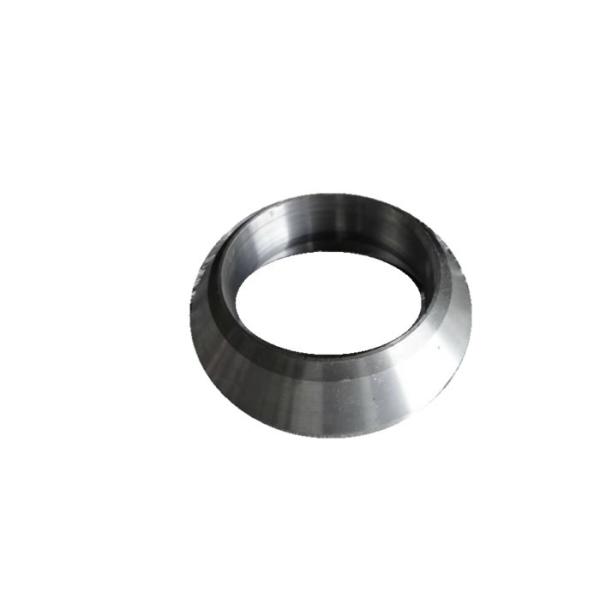

2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet
Specifications
Brand Name :
ZZ
Model Number :
ASTM A105N
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A105N
Connection :
Socket Weld
Products :
Sockolet, Threadolet, Weldolet, Latrolet, Elbolet, Nipolet,
Size :
1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure :
Class 3000, 6000
Standard :
MSS SP-97
Packing :
Plastic Foam, Wooden Cases, Pallets, 20FT Container
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Socket Weld Branch Outlet 2 Inch Class 6000 Sockolet ASTM A105N MSS SP-97

Sockolet MSS SP-97

High quality MSS SP-97 Branch Connection Fittings manufacturer and exporter Zizi supplies high pressure Class 6000 sockolet 2 Inch ASTM A105N in socket weld type for projects. Our olet fittings are available in various dimensions and materials.

As a professional supplier and exporter, we have extensive production experience. We know the requirements of customers and try our best to satisfy them so that we get trust of customers and reputations.

Sockolet 6000# Dimensions

Run Pipes Diameter DN8– 300 / NPS1/4 – 36
Branch Diameter DN6-100/ NPS 1/8-4
Standard MSS-SP-97
Surface Anti rust Oil, Galvanized
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet

ASTM A105N Chemical Composition

C Mn P S Si
0.15 0.6-1.0 0.035 0.04 0.1

ASTM A105N Mechanical Properties

Tensile Strength Yield Strength Elongation
485 (Mpa) 250 (Mpa) 30 (%)

Sockolet Weight

2 Inch Branch Outlet Fitting , ASTM A105N MSS SP 97 Socket Weld Outlet

Package of Carbon Steel Sockolet

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed ASTM A105N Forged Fittings into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Socket Weld Branch Outlet

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material, pressure, standard, heat No.
  3. Measure the size. Such as diameter, thickness, height of end to end.

Application of Socket Weld Outlet

  • Oil tank
  • Power industry
  • Chemical industry
  • Oil & gas industry
  • Petrochemical industry
