Specifications
Brand Name :
ZZ
Model Number :
ASTM A234 WP91
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets.
Connection :
Butt Weld
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Standard :
ANSI, DIN, ASME B16.9
Surface :
Galvanized, Black Primer, PE Coating
Packing :
Plastic Foam, Wooden Cases, Pallets
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

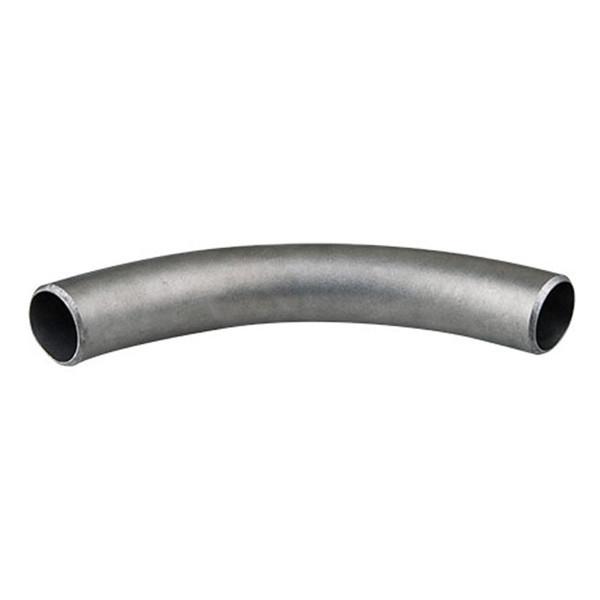

5D Bend 90 Degree 16" Sch 40 Seamless ASTM A234 WP91 ASME B16.9

90 Degree Steel Bend

Quality leading manufacturer and exporter of pipe bends and elbows Zizi supplies 90 Degree 5D Bend for Pakistan, they are made of high quality alloy steel Grade 91 and their price is attractive.

Steel pipe bend is very similar with elbows. They have same diameter range, wall thickness and end form. What’s the difference between them? It’s the radius. Elbows have long radius (R=1.5D) and short radius ( R=1D) types only, while bends radius usually are larger than 1.5D, such as 3D, 4D, 5D, 6D, 7D, 8D, 9D and 10D.

90 Degree 5D Bend Dimensions

Size 1/2″ to 48″
Thickness Sch 10s, 20, STD, 40S, XS, 80S, 120, 160
Standard DL/T515, SY5257, ASME B16.9 or customer’s technical drawings
Bend Radius R = 3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D
Bend Angle 15°, 30°, 45°, 60°, 90°, 135°, 180° or at customer’s option
Straight Length L Usually between 300mm and 1500mm
Carbon Steel ASTM A234 WPB, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70
Stainless Steel ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex Steel ASTM A815 UNS S31803, S32205, S32550, S32750, S32760
Low Temp Carbon Steel ASTM A420 WPL3,WPL6, WPL9

5D Bend Schedule 40 Steel Pipe Fittings 90 Degree Seamless ASTM A234 WP91
5D Bend Weight Chart

5D Bend Schedule 40 Steel Pipe Fittings 90 Degree Seamless ASTM A234 WP91

How to Calculate Pipe Bend Weight

W=0.0387 * S( D – S ) * R / 1000

W = Weight (kg/piece).

S = Thickness Schedule.

D = Nominal Diameter.

R= Radius.

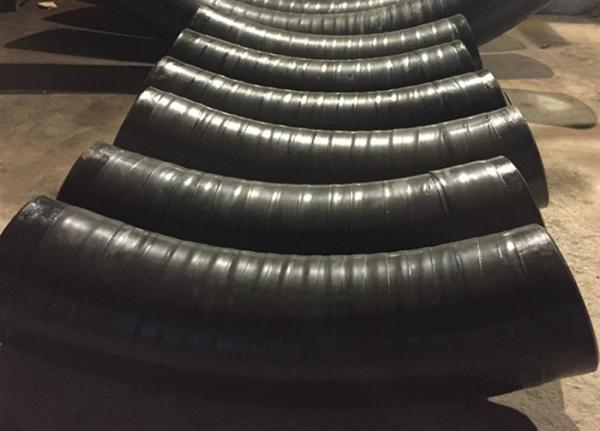

Package of A234 WP91 Steel Bend

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed 90 Degree Bends into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Steel Pipe Bend

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, center to end.

5D Bend Schedule 40 Steel Pipe Fittings 90 Degree Seamless ASTM A234 WP91

Advantage of Alloy Steel Pipe Fittings

  • Reasonable Price
  • Good Quality
  • Fast Delivery
  • Safe Package
  • Reliable Shipment

ASTM A234 WP91 Chemical Composition

C Mn P S Si Cr Mo
0.08-0.12 0.3-0.6 0.015 0.02 0.2-0.5 8-9.5 0.85-1.05

ASTM A234 WP91 Mechanical Properties

Tensile Strength Yield Strength Elongation
590 (Mpa) 415 (Mpa) 20 (%)
