Specifications
Brand Name :
ZZ
Model Number :
ASTM A403 WP316L
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A403 WP316L
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Standard :
ANSI, ASME B36.19, B16.9
Surface :
Anti-rust Oil, Black Primer
Description

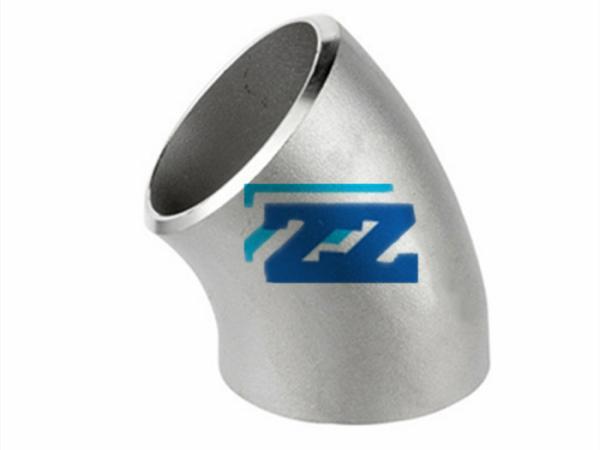

Stainless Steel 45 Degree Pipe Elbow 16" SCH80S ASTM A403 WP316L ASME B36.19

45 Degree Pipe Elbows

Zizi manufactures Stainless Steel 45 Degree Pipe Elbow 16" SCH80S ASTM A403 WP316L according to ASME B36.19, and the high quality is guaranteed after testing by ISO certified company.

As the most common buttweld elbow type, stainless steel long radius elbow offers a better corrosion resistance and strength. It performs well in high pressure, moderate and high temperature pipe systems and corrosive environment. We use careful package to make sure the safety of your goods.

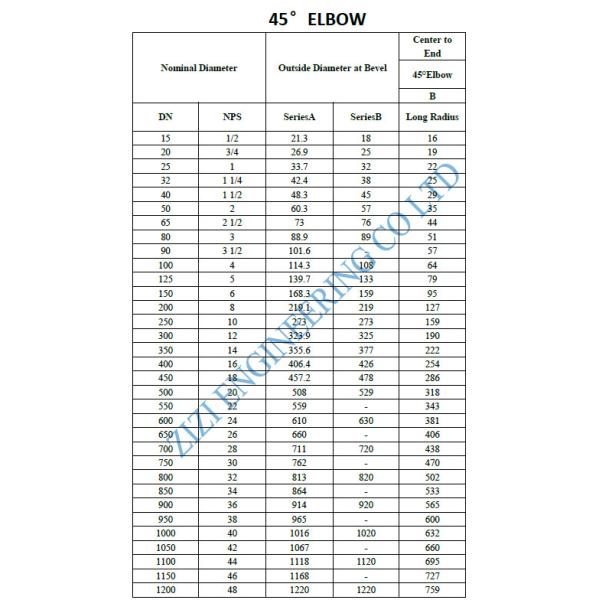

16" 45 Degree Elbow Dimensions

Size 1/2" - 60"
Wall Thickness Sch10s, 20s, 40s, STD, XS, 80s, 100, 120, 140, 160, XXS
Standard ASME B36.19
Types Seamless, Welded, 90 Degree, 45 Degree, Long Radius, Short Radius

45 Degree Stainless Steel Pipe Elbow , Stainless Butt Weld Fittings 16

Stainless Steel 90 Degree Elbow

ASTM A403 WP304/304L/304H, WP316/316L, WP310, WP317, WP321, WP347

Carbon Steel 45 Degree Elbow

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, A420 WPL3 / 6 / 9

Alloy Steel Short Radius Elbow

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Duplex Steel Long Radius Elbow

ASTM A815 UNS S 31803, 32205, 32550, 32750, 32760

ASTM A403 WP316L Chemical Composition

C Mn P S Si Ni Cr Mo
0.03 2 0.045 0.03 1 10-14 16-18 2-3

ASTM A403 WP316L Mechanical Properties

Tensile Strength Yield Strength Elongation
485 (Mpa) 170 (Mpa) 30 (%)

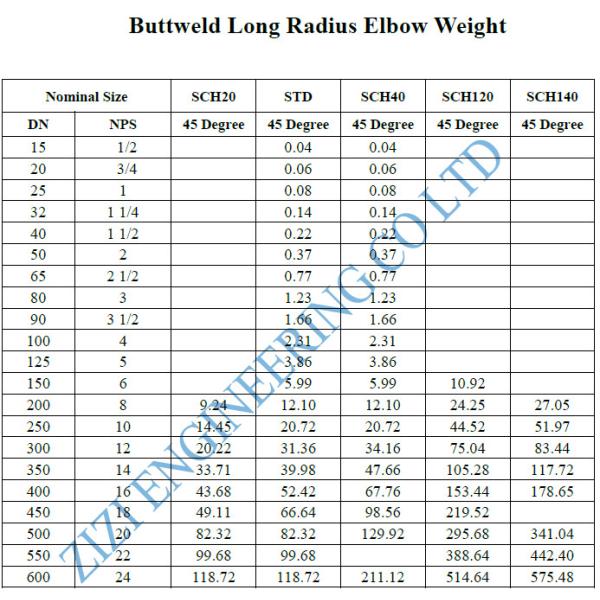

45 Degree Elbow Weight

It is easy and fast to use weight chart to get the weight of 45 degree elbows, which can meet your demands in most cases. The Weight of 45 degree elbow is 0.56 times of 90 degree elbow.

45 Degree Stainless Steel Pipe Elbow , Stainless Butt Weld Fittings 16

How to Calculate Weight of 45 Degree Elbow

  • W=0.0216 * S( D – S ) * R / 1000
  • W = Weight (kg/piece).
  • S = Thickness Schedule.
  • D = Nominal Diameter.
  • R = Radius

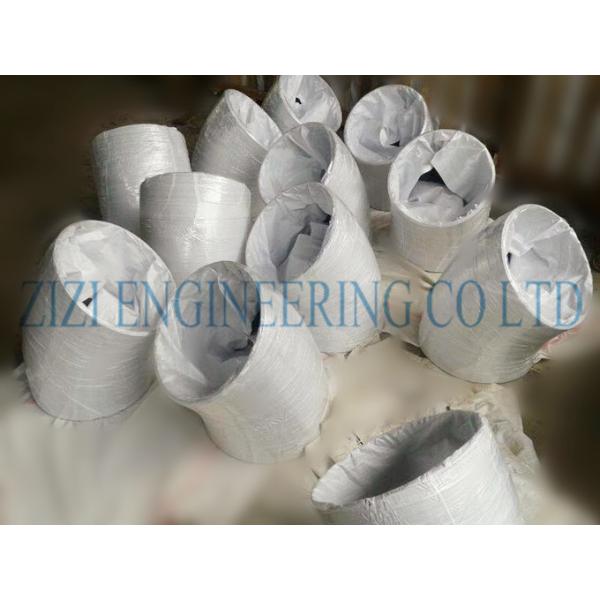

Package of Stainless Steel Elbow

45 Degree Stainless Steel Pipe Elbow , Stainless Butt Weld Fittings 16

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped stainless steel elbow with plastic foam.
  • Packed 16 inch elbow into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Buttweld Elbow

  1. Visual check the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material grade, pressure, heat no.
  3. Measure the size. Such as diameter, thickness, center to end.
  4. Test the chemical composition of stainless steel 316

Application of Buttweld Fitting

  • Power industry
  • Metal industry
  • Marine industry
  • Chemical industry
  • Oil & gas industry
  • Petrochemical industry
