1 NPT Threaded Steel Pipe Fittings , ASTM A182 F5 Branch Outlet Fitting
1 NPT Threaded Steel Pipe Fittings , ASTM A182 F5 Branch Outlet Fitting
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F5
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 F5
Standard :
MSS SP-97
Products :
Sockolet, Threadolet, Weldolet, Latrolet, Elbolet, Nipolet,
Size :
1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
Pressure :
Class 3000, 6000
Packing :
Plastic Foam, Wooden Cases, Pallets
Description

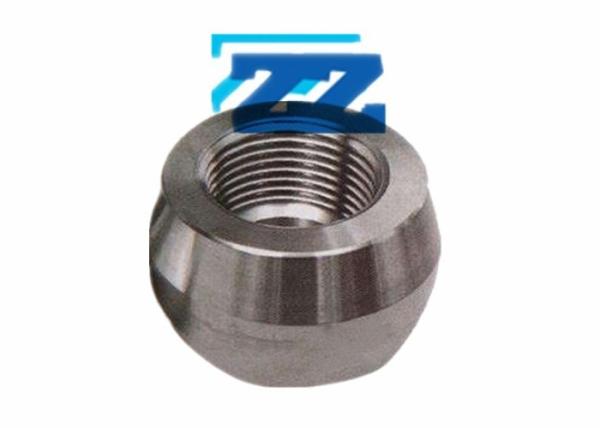

1 " NPT Threadolet Class 6000 ASTM A182 F5 MSS-SP-97 Olet Pipe Fittings

Threaded Outlet Fitting

High quality manufacturer and supplier Ziai offers various dimensions and materials for outlet pipe fittings, the cost-effective threadolet 1 " NPT Class 6000 ASTM A182 F5 MSS-SP-97 Olet Pipe Fittings is exported to Myanmer.

Theadolet is an integrally reinforced branch outlet fittings, we supply forged types in class 3000 and class 6000. It has many different thread types, and the most common used type is BSP and NPT threads. In order to offer customers best products, we have established standards to control every step of manufacturing.

MSS SP-97 Threadolet Dimensions

Run Pipes Diameter DN8– 300 / NPS1/4 – 36
Branch Diameter DN6-100/ NPS 1/8-4
Pressure Rating 3000#, 6000#
Standard MSS-SP-97
Surface Anti rust Oil, Galvanized
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

1

ASTM A182 F5 Chemical Composition

C Mn P S Si Ni Cr Mo
0.15 0.3-0.6 0.03 0.03 0.5 0.5 4-6 0.44-0.65

ASTM A182 F5 Mechanical Properties

Tensile Strength Yield Strength Elongation
620 (Mpa) 450 (Mpa) 22 (%)

Threadolet Weight

We offer weight chart of threadolet to help you get more information of our products. If there is no results that you want to know, you can contact us, we will reply you as fast as possible.

1

Package of 1" NPT Threadolet

  • Clear mark like Grade, Lot No, Size, Standard and Pressure at the surface.
  • Wrapped threadolet with plastic foam.
  • Packed same type threadolets into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Threadolet Class 6000

  • Surface Inspection. Check if there is any dents, die marks, porosity, undercuts.
  • Check the marking. It should be included clear size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the NPT threads with go/no go gauge.

1

Advantages of Olet Pipe Fittings

  • Cost Effective
  • Durable
  • Fast Delivery
  • High Quality
  • Reliable Shipment
