Specifications
Brand Name :
ZZ
Model Number :
A182 F316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
10-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 SS 316
Connection :
Socket Weld
Products :
90 Degree Socket Weld Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Thickness :
3000 LB, 6000 LB, 9000LB
Standard :
ASME B16.11, BS3799
Description

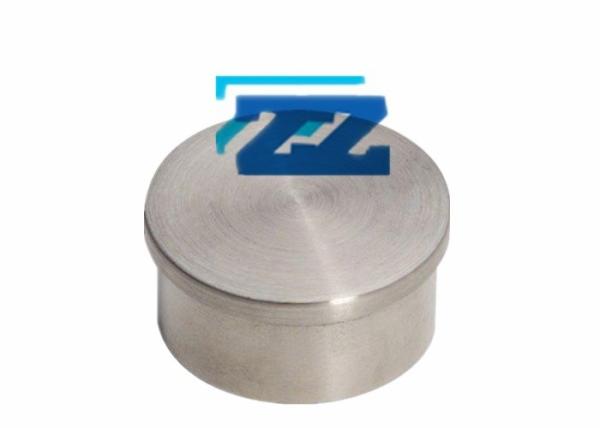

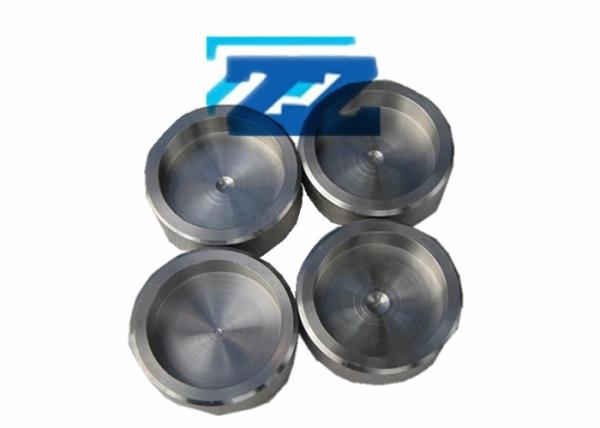

Socket Weld Pipe Cap Stainless Steel 316 2 Inch Class 6000 ASME B16.11

Stainless Steel Pipe Cap

Leading manufacturer Zizi exports Socket Weld Pipe Cap Stainless Steel 316 2 Inch Class 6000 ASME B16.11 to different countries, the dimension and material can be customized.

For small diameter pipelines, socket weld cap offers a reliable block at the end of piping. Same as forged pipe fittings, it has same function wiht plugs, but forged caps have threaded and socket weld two types.

Socket Weld Cap Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 3000, 6000,9000
Standard ASME B16.11 and BS3799
Surface Anti-rust Oil or Galvanized
Forged Cap Type Scoket Weld Cap, Threaded Cap
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Socket Weld Steel Pipe Caps Stainless Steel 316 Material 2 Inch Size Class 6000

Socket Weld Cap Weight

Here is the weight chart for you to get more information about our socket weld caps. If you want to know more, you can send us email, we will reply you as soon as possible

Socket Weld Steel Pipe Caps Stainless Steel 316 Material 2 Inch Size Class 6000

Package of High Pressure Pipe Cap

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped each SS 316 Caps with plastic foam.
  • Packed all class 6000 caps into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

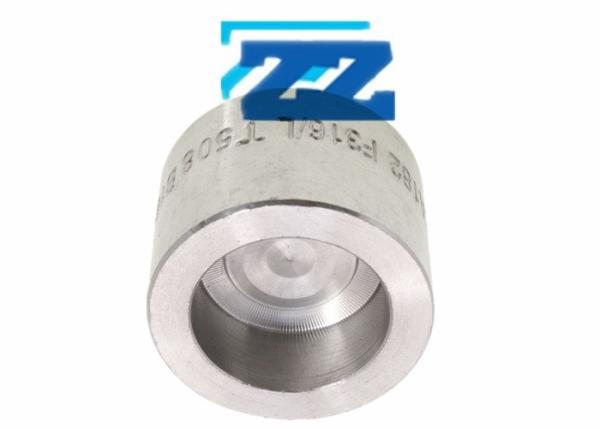

Inspection of 2" Socket Weld Cap

Socket Weld Steel Pipe Caps Stainless Steel 316 Material 2 Inch Size Class 6000

  • Check the surface. Ensure no dents, die marks, porosity, undercuts.
  • Check the marking. Such as clear size, material grade, pressure,standard, heat No.
  • Measure sizes. For example the diameter, thickness, height / end to end, depth of socket.
  • Test the chemical composition of SS 316.

ASTM A182 F316 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

ASTM A182 F316 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Advantage of Forged Steel Caps

  • Best Price
  • ISO Certified Quality
  • Fast Delivery
  • Careful Service
  • Reliable Shipment
  • Abundant Stock
