Specifications
Brand Name :
ZZ
Model Number :
SS 304
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 Stainless Steel 304
Connection :
Female Threaded
Products :
90 Degree Threaded Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Thickness :
3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Surface :
Anti rust Oil, Galvanized
Packing :
Carton and Wooden Case.
Description

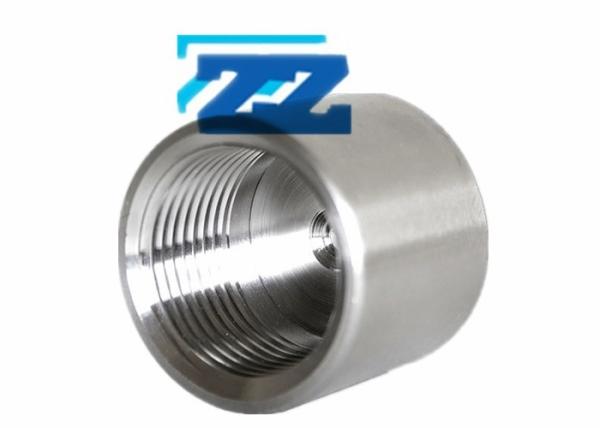

1 " NPT Cap Class 3000 ASTM A182 F304 Steel Pipe Fittings ASME B16.11

Stainless Steel Threaded Cap

Zizi is an ISO certified manufacturer of steel pipe fittings and we export 1 " NPT Cap Class 3000 ASTM A182 F304 Steel Pipe Fittings ASME B16.11 to many countries.

Stainless Steel Threaded Cap is used to stop the flows in pipelines with high requirements for safe and durable, and even in the corrosive environment it also performs well. We are trusted by customers because of our good quality and service.

Threaded Steel Pipe Cap Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 3000, 6000
Standard ASME B16.11 and BS3799
Surface Anti-rust Oil or Galvanized
Thread Type NPT, BSPP, BSPT
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

1

Threaded Pipe Cap Weight

1

Package of SS 304 Pipe Cap

  • Marking: Grade, Lot No, Size, Standard and Pressure.
  • Package: Warped plastic foam first.​ Then packed Class 3000 Threaded Cap into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

1

Inspection of 1 Inch NPT Cap

  1. Surface Check: Visual and touch to check dents, die marks, porosity, undercuts.
  2. Clear Marking: Such as size, material grade, pressure, heat no.
  3. Measure the size: Such as diameter, thickness, height of end to end.
  4. Test NPT thread with go/no go gauge.
  5. Test the properties of stainless steel 304

ASTM A182 F304 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.045 0.03 1 8-11 8-20 /

ASTM A182 F304 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Advantage of SS 304 Forged Fittings

  • Durable
  • High Quality
  • Corrosion Resistant
  • Good Price
  • Fast Delivery
