Threaded Plug Hex Head NPT 1 / 2 Forged Pipe Fittings Male Thread Connection
Threaded Plug Hex Head NPT 1 / 2 Forged Pipe Fittings Male Thread Connection
Specifications
Brand Name :
ZZ
Model Number :
ASTM A105
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
100000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Standard :
ASME B16.11, BS3799
Connection :
Male Thread
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Material :
Stainless Steel,Carbon Steel,Alloy Steel, Duplex Steel
Surface :
Anti rust Oil, Galvanized
Packing :
Carton, Wooden Case
Description

Threaded Plug Hex Head NPT 1 / 2" Forged Pipe Fittings ASTM A105 ASME B16.11

Carbon Steel Threaded Pipe Fittings

Leading manufacturer and exporter of carbon steel forged pipe fittings Zizi supplies NPT Threaded Plug Hex Head 1 / 2" ASTM A105 ASME B16.11 for Indonesia.

We manufactue threaded pipe fittings under 100% quality control, ASME B16.11 Hex head plug are available in various dimensions and specificaton.

Hex Head Plug Dimensions

Size 1/8" to 4" / DN6 to DN100
Standard ASME B16.11 / BS3799
Thread Type NPT, BSPP, BSPT, PF, PT
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Carbon Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Stainless Steel ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321,F347
Duplex Steel ASTM A182 F51, F53, F55, S31803, S32205, S32550, S32750, S32760

Threaded Plug Hex Head NPT 1 / 2

ASTM A105 Chemical Composition

C Mn P S Si Ni Cr Mo
0.35 0.6-1.05 0.035 0.04 0.1-0.35 0.4 0.3 0.12

ASTM A105 Mechanical Properties

Tensile Strength Yield Strength Elongation HB
485 (Mpa) 250 (Mpa) 22 (%) 187

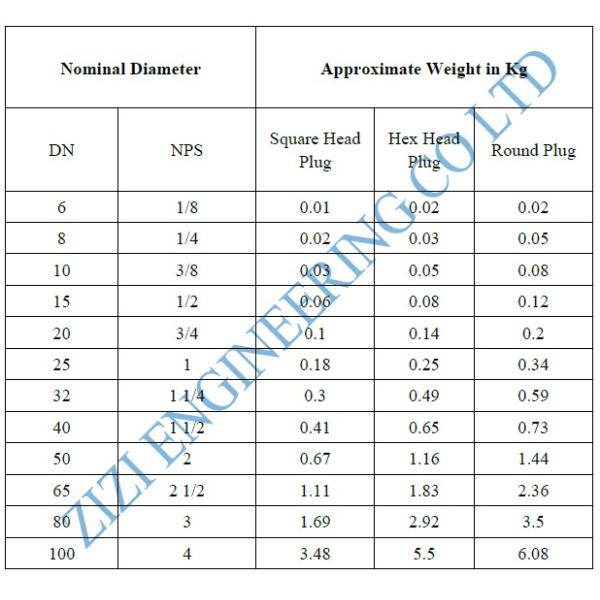

Threaded Plug Weight

The weight chart of threaded plug are covered three types that square head plug, hex head plug and round plug. Their dimensions are from 1/8" to 4".

Threaded Plug Hex Head NPT 1 / 2

1 / 2 NPT Hex Head Plug

Marking

Our workers marked " HP 1/2" NPT A105 168" on plug body, it covers type, size, thread and heat No only, becuase the size and space are tight.

Surface

Brush the anti-rust oil on all threaded plugs.

Wrap them with waterproof papers

Package

Pack 1/2' NPT Hex Head Plugs into cartons.

Put all cartons in wooden cases and bundle it with belts.

Shipping mark on the wooden case for easy indentification.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as type, size, material grade, thread, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the thread with go/no go gauge.

Advantanges

  • Cheap price
  • Safety package
  • One stop service
  • ISO quality certification
