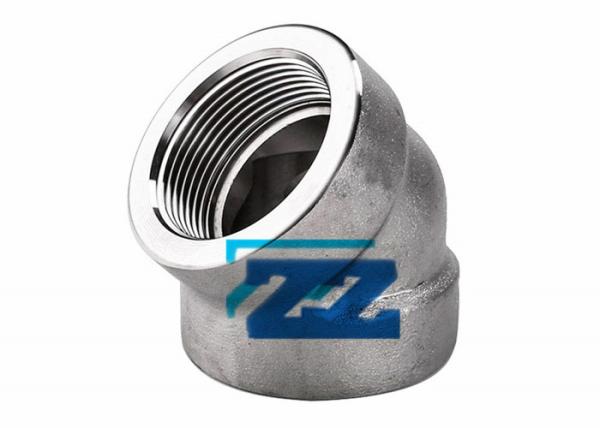

45 Degree 3 / 4 Class 3000 Npt Pipe Fittings , SS 316 Stainless Steel Street Elbow
45 Degree 3 / 4 Class 3000 Npt Pipe Fittings , SS 316 Stainless Steel Street Elbow
Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel 316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases
Standard :
ASME B16.11, BS3799
Material :
ASTM A182 F316
Products :
90 Degree Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
2000 LB, 3000 LB, 6000 LB
Surface :
Anti rust Oil, Galvanized
Packing :
Plastic Foam, Carton and Wooden Case. 20FT Container
Application :
Industry, Petroleum, Gas And Oil Pipes, Chemical
Description

NPT Elbow 45 Degree 3 / 4 " Class 3000 SS 316 Forged Pipe Fittings ASME B16 11

NPT Threaded Elbow

Forged Pipe Fittings manufacturer and supplier Zizi offers NPT Elbow 45 Degree made of best quality SS 316 in 3 / 4 " Class 3000 according to ASME B16.11, we also offer extensive dimension and material range for your selection.

We manufacture forged threaded pipe fittings as per ASME B16.11 and NPT threads conform to ASME B1.20.1 They are frequently used in pressurized applications and is available in various shapes. Stainless Steel Threaded Elbow has excellent quality, even in the corrosive environments, it is safe and durable.

45 Degree Threaded Elbow Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 2000, 3000, 6000
Standard ASME B16.11 and BS3799
Surface

Anti-rust Oil or Galvanized (Carbon Steel Elbow)
Type 90 Degree Threaded Elbow, 45 Degree Threaded Elbow
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

45 Degree 3 / 4

45 Degree Elbow Weight Chart

The diameter range of threaded elbow is from 1/8 inch to 4 inch and the pressure rating covers class 2000, 3000 and 6000. We offer the weight chart of 45 degree elbows covers whole diameter and pressure ranges.

45 Degree 3 / 4

Package of 3/4" NPT Elbow

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped SS 316 elbow with plastic foam
  • Packed NPT Threaded Elbow into cartons and wooden cases.

Inspection of Stainless Steel Threaded Elbow

  • Check the surface. Include hand touch and visual check.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test chemical composition of ASTM A182 F316.

45 Degree 3 / 4

ASTM A182 F316 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

ASTM A182 F316 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Advantage of Forged Steel Fittings

  • Fine Surface
  • High Quality
  • Durable
  • Godd Price
  • Fast Delivery
