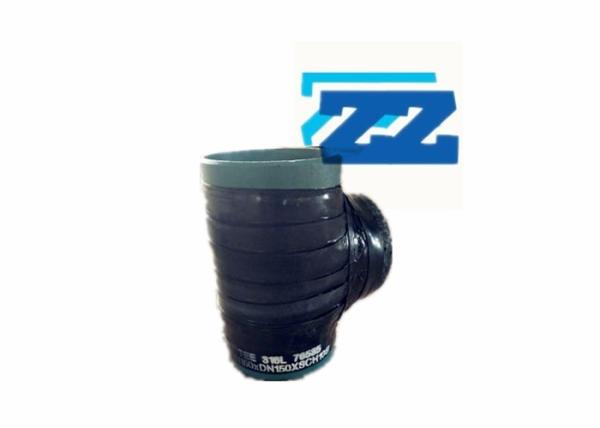

Stainless Steel Pipe Tee 1 1 / 4 Sch 20 ASTM A403 WP316 PE Coating ASME B36 19
Stainless Steel Pipe Tee 1 1 / 4 Sch 20 ASTM A403 WP316 PE Coating ASME B36 19
Specifications
Brand Name :
ZZ
Model Number :
ASTM A403 WP316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A403 WP316
Connection :
Butt Weld
Standard :
ANSI, ASME B36.19
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Surface :
Black Primer, PE Coating
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Stainless Steel Pipe Tee 1 1 / 4 " Sch 20 ASTM A403 WP316 PE Coating ASME B36.19

BW Equal Tee

Zizi supplies Stainless Steel Pipe Tee 1 1 / 4 " Sch 20 ASTM A403 WP316 ASME B36.19 with PE coating in accodance with the requirements of customers. We offer various coatings for the purpose of resistant to rust and prolong the service life.

Stainless steel tee has excellent resistance to corrosive, high pressure and temperature, generally speaking it doesn't need coatings to protect them. But some pipes may be in most corrosive envirenments, coated the pipe fittings can make them more durable.

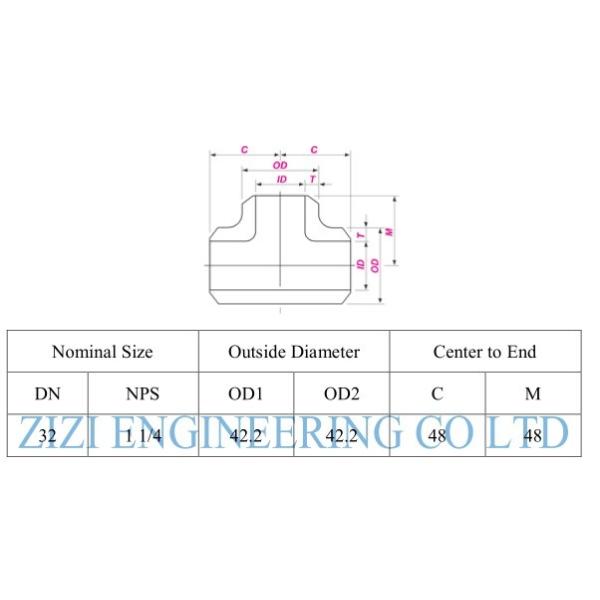

Stainless Steel Pipe Tee Dimensions

Size 1/2" - 60"
Wall Thickness Sch10S, 20S, 40S, STD, XS, 80S, 100, 120, 140, 160, XXS
Standard ASME B36.19
Types Seamless Tee, Welded Tee, Equal Tee, Reducing Tee

Stainless Steel Pipe Tee 1 1 / 4

Carbon Steel Seamless Tee

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, A420 WPL3, WPL6, WPL9

Alloy Steel Pipe Tee

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Stanless Steel Reducing Tee

ASTM A403 WP304/304L,WP304H,WP316/316L,WP310,WP317,WP321

Duplex Steel Buttweld Tee

ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760

Equal Tee Weight

This weight chart is only available for buttweld equal tees, diameter form 1/2" to 24", schedule form sch 10s to sch 160.

Stainless Steel Pipe Tee 1 1 / 4

How to Calculate Equal Tee Weight

  • Formula: 0.02466*(S+1.5)*[D-(S+1.5)]*(3C-D/2)/1000
  • S= wall thickness in mm
  • D= outside diameter in mm
  • C= length*[out diameter-(thickness+2)]*(thickness*2)*0.02466*length, the unit is mm, too.

Package of SS 316 Tee

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed Stainless Steel A403 WP316 Pipe Tee into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Stainless Steel Pipe Tee

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, end to end.
  • Test the chenical compositon of SS 316.

ASTM A403 WP316 Chemical Composition

C Mn P S Si Ni Cr Mo
0.035 2 0.045 0.03 1 10-14 16-18 2-3

ASTM A403 WP316 Mechanical Properties

Tensile Strength Yield Strength Elongation
520 (Mpa) 205 (Mpa) 30 (%)

Advantage of Stainless Steel Buttweld Fittings

  • Reasonable Price
  • Good Quality
  • Safe Package
  • Reliable Shipment
