Welded Steel Pipe Tee DN1200 x DN1000 Sch STD ASTM A234 WP5 Alloy Steel Material
Welded Steel Pipe Tee DN1200 x DN1000 Sch STD ASTM A234 WP5 Alloy Steel Material
Specifications
Brand Name :
ZZ
Model Number :
ASTM A234 WP5
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
Wooden Cases or Pallets, LCL, 20ft/40ft Container
Material :
Alloy Steel
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Standard :
ANSI, ASME B16.9
Type :
Seamless and Welded
Packing :
Plastic Foam, Wooden Cases, Pallets
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Welded Pipe Tee DN1200 x DN1000 Sch STD ASTM A234 WP5 ASME B16.9 Steel Fittings

Reducer Tee

ISO certified company Zizi manufactures and exports high quality, low cost Welded Pipe Tee DN1200 x DN1000 Sch STD ASTM A234 WP5 ASME B16.9 Stee Pipe Fittings.

As customers trusted manufacturer, we produce buttweld tees in strict accordance with standards and customer needs, and control every aspect of production. Those high quality pipe tees offered in the most competitive price.

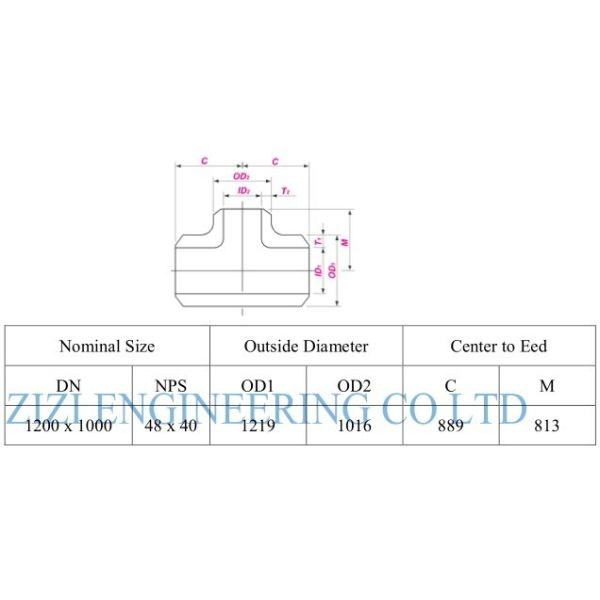

B16.9 Tee Dimensions

Size NPS 1/2" - 60"
Wall Thickness Sch10S, 20S, 40S, STD, XS, 80S, 100, 120, 140, 160, XXS
Standard ASME B36.19
Types Seamless Tee, Welded Tee, Equal Tee, Reducing Tee

Welded Steel Pipe Tee DN1200 x DN1000 Sch STD ASTM A234 WP5 Alloy Steel Material

Carbon Steel Weld Tee

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, A420 WPL3, WPL6, WPL9

Alloy Steel Pipe Tee

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Stanless Steel Reducing Tee

ASTM A403 WP304/304L,WP304H,WP316/316L,WP310,WP317,WP321

Duplex Steel Buttweld Tee

ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760

ASTM A234 WP5 Chemical Composition

C Mn P S Si Cr Mo
0.15 3-6 0.04 0.03 0.5 16-18 0.44-0.65

ASTM A234 WP5 Mechanical Properties

Tensile Strength Yield Strength Elongation
415-585 (Mpa) 205 (Mpa) 20 (%)

Weight of Steel Pipe Tee

There are two ways to get the weight of steel pipe tee. The first one is the weight tee chart, and the second is using calculation formula. Based on the equal tee weight, you can get the weight of reducing tee.

Welded Steel Pipe Tee DN1200 x DN1000 Sch STD ASTM A234 WP5 Alloy Steel Material

How to Calculate Reducing Tee Weight

Equal Tee Weight

  • 0.02466*(S+1.5)*[D-(S+1.5)]*(3C-D/2)/1000
  • S= wall thickness in mm
  • D= outside diameter in mm
  • C= length*[out diameter-(thickness+2)]*(thickness*2)*0.02466*length, the unit is mm, too

Reducing Tee

  • Diameter difference is 1 class: x0.94
  • Diameter difference is 2 class: x0.91
  • Diameter difference is 3 class: x0.89

Package of Welded Pipe Tee

  • The marking at surface.
  • Plastic Foam first.
  • Packed all Reducing Tee into wooden pallets.
  • Tagged labers on the outside of the package.

Inspection of Large Diameter Pipe Tee

  1. Visual and touch the surface. Avoid dents, die marks, porosity, undercuts.
  2. Check the marking. Such as clear size, material grade, pressure, heat no.
  3. Measure the size of diameter, thickness, end to end, ensure them are all in tolerance.

Welded Steel Pipe Tee DN1200 x DN1000 Sch STD ASTM A234 WP5 Alloy Steel Material

Advantage of Welded Pipe Fittings

  • Low Cost
  • High Quality
  • Fast Delivery
  • Good Service
