8 Inch Equal Steel Pipe Tee Schedule 80S Stainless Steel ASTM A403 WP304 ASME B36 19
8 Inch Equal Steel Pipe Tee Schedule 80S Stainless Steel ASTM A403 WP304 ASME B36 19
Specifications
Brand Name :
ZZ
Model Number :
ASTM A403 WP304
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A403 WP304
Connection :
Butt Weld
Shape :
Round
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Standard :
ANSI, ASME B36.19
Technics :
Rolled
Packing :
Plastic Foam, Wooden Cases, Pallets
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

8 inch Equal Tee Schedule 80S Stainless Steel ASTM A403 WP304 ASME B36.19

Stainless Steel Equal Tee

High quality Stainless Steel 304 Pipe Tee is supplied without restriction of dimensions and quantities, both seamless and welded forms for your selection.

Butt Weld Equal Tee provides a branch with the same diameter as the main pipe. As a essential and common used pipe fittings, it has advantages of large apply range, high strenth and sealed conncetions. We stocks a number of butt weld tee in different sizes such as Sch 40 and Sch 80.

8 inch Pipe Tee Dimensions

Wall Thickness Sch10S, 20S, 40S, STD, XS, 80S, 100, 120, 140, 160, XXS
Standard ASME B36.19
Types Seamless Tee, Welded Tee, Equal Tee, Reducing Tee
Stainless Steel ASTM A403 WP304/304L/304H, WP316/316L, WP310, WP317, WP321, WP347
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
LTCS ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

How to Calculate Equal Tee Weight

  • Weight Formula: 0.02466*(S+1.5)*[D-(S+1.5)]*(3C-D/2)/1000
  • S= wall thickness in mm
  • D= outside diameter in mm
  • C= length*[out diameter-(thickness+2)]*(thickness*2)*0.02466*length, the unit is mm, too.

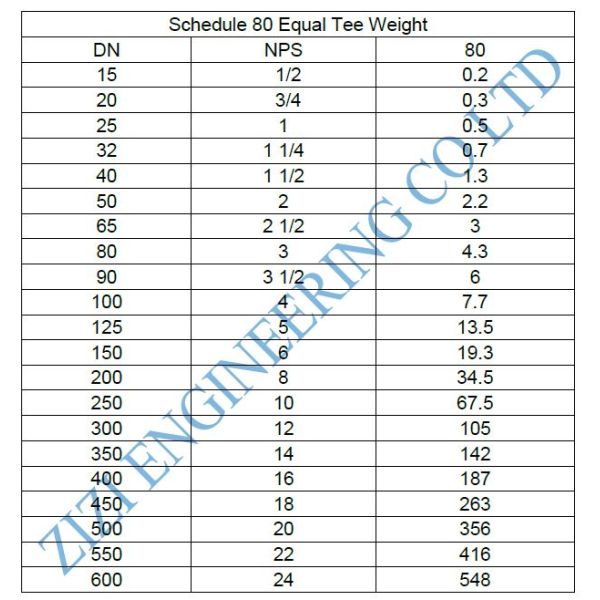

Equal Tee Sch 80 Weight

8 Inch Equal Steel Pipe Tee Schedule 80S Stainless Steel ASTM A403 WP304 ASME B36 19

Package of Stainless Steel Pipe Tee

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed Stainless Steel A403 WP304 Pipe Tee into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Buttweld Tee

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat no.
  • Measure the size. Such as diameter, thickness, end to end.
  • Test the chenical compositon of SS 304.

ASTM A403 WP304 Chemical Composition

C Mn P S Si Ni Cr
0.08 2 0.045 0.03 1 8-11

18-20

ASTM A403 WP304 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Advantage of Stainless Steel Buttweld Fittings

  • Reasonable Price
  • Good Quality
  • Fast Delivery
  • Safe Package
  • Reliable Shipment
