Specifications
Brand Name :
ZZ
Model Number :
ASTM A694 F52
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A694 F52
Standard :
ASME B16.11, BS3799
End Type :
Threaded, Socket Weld
Surface :
Anti rust Oil, Galvanized
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Type :
Threaded Half Coupling, Threaded Full Coupling, Threaded Reducing Coupling
Pressure :
3000 LB, 6000 LB
Packing :
Plastic bag, Carton and Wooden Case.
Description

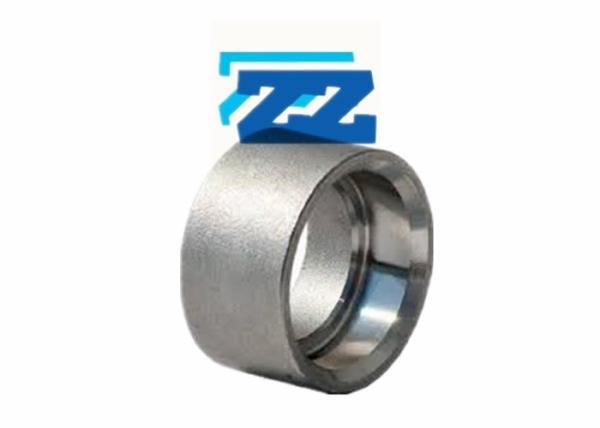

Carbon Steel Half Coupling ASTM A694 F52 2 " 3000 # BS 3799 Steel Pipe Coupling

Forged Couplings

High quality manufacturer and supplier of Steel Pipe Couplings Zizi exports Carbon Steel Half Coupling ASTM A694 F52 2 " 3000 # BS 3799 to many countries.

Carbon steel couplings are forged couplings with two types ends, one type is socket weld, the other is threaded end. The different end types suit different applications. They are both used in small diameter pipe systems within 4 inches.

Half Coupling Dimensions

Size NPS 1/8" to 4" / DN6 to DN100
Pressure Rating Class 3000, 6000, 9000
Standard ASME B16.11 and BS3799
Surface Anti-rust Oil or Galvanized
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

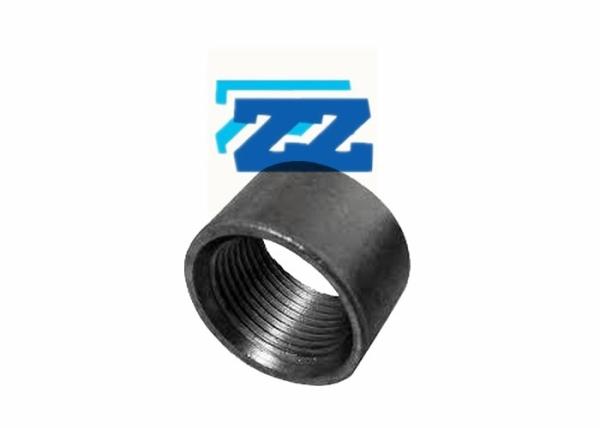

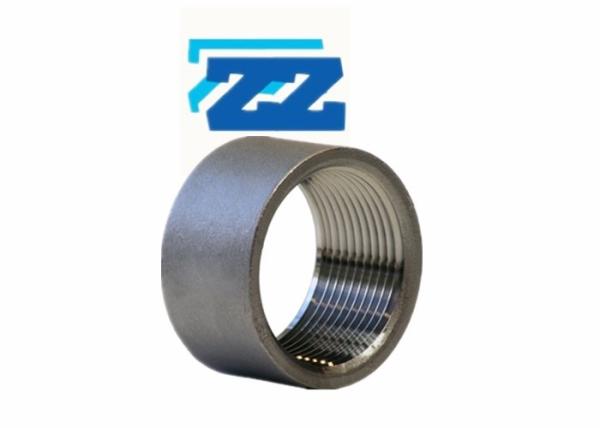

Threaded Hal Coupling Dimensions

ASTM A694 F52 Steel Pipe Coupling 2

ASTM A694 F52 Chemical Composition

C Si Mn S P Cr Ni Mo
0.3 0.15-0.37 1.5 0.03 0.03 / / /

ASTM A694 F52 Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 315 (Mpa) 20 (%)

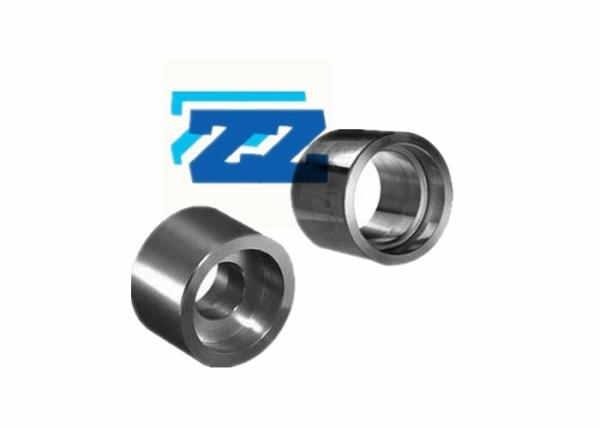

Socket Weld Half Coupling Dimensions

ASTM A694 F52 Steel Pipe Coupling 2

Class 3000 Couplings

Package

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed carbon steel half coupling into cartons and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

  • Check the surface. Such as visual and touch to avoid dents, die marks, porosity, undercuts.
  • Ensure the marking is clear. The marking includes size, material grade, pressure, heat no.
  • Confirm that the size is within tolerance.
  • Test the threads if it is threaded ends.

Advantages

  • Easy Usage
  • High Quality
  • Best Price
  • Durable
