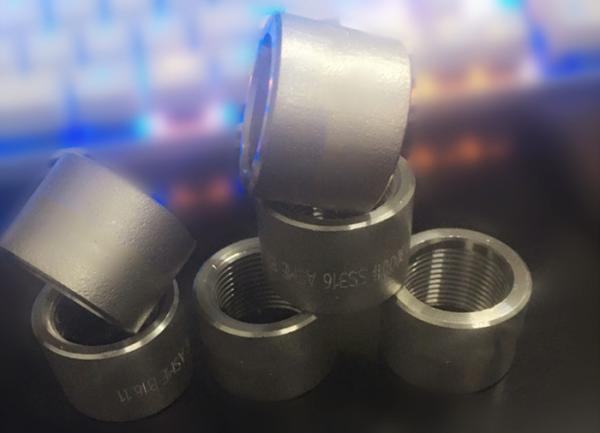

Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum
Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel ASTM A182 F316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Type :
Threaded Half Coupling, Threaded Full Coupling, Threaded Reducing Coupling
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Thread :
NPT, PT, PF, BSPT, BSPP
Surface :
Anti rust Oil, Galvanized
Packing :
Plastic bag, Carton and Wooden Case. 20FT Container
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Stainless Steel Half Coupling NPT ASTM A182 F316 1 1/2" 3000 # ASME B16.11

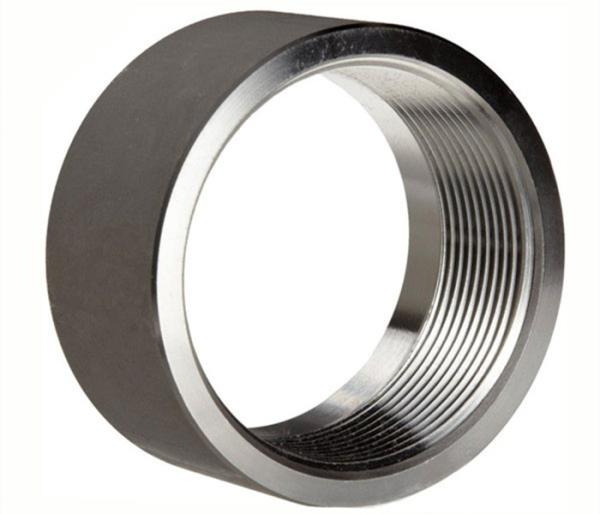

Stainless Steel Half Coupling

China Leading Stainless Steel Forged Fittings Manufacturer offers A182 F316 Half Coupling Threaded NPT 3000# ASME B16.11 for Greece. They are carefully packed to ensurue the good condition.

It is a common and important Forged Fittings in pipeline system. ASME B16.11 Screwed fittings is easy to install and leak proof, usually used in engineering industries. They are under 100% quality control during manufacturing and have rigorous inspection before shipping.

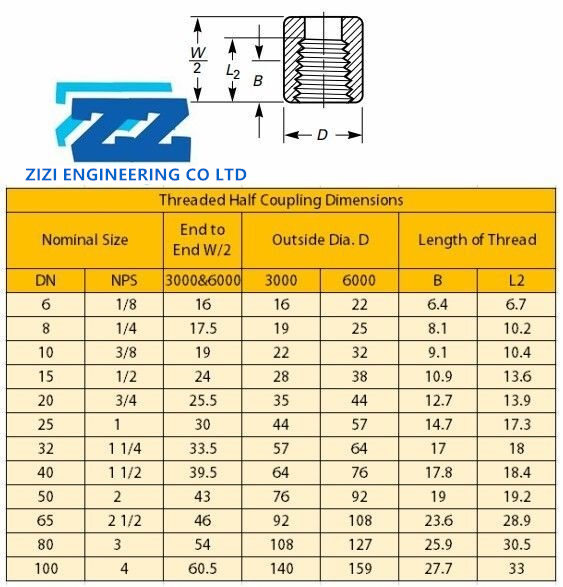

Threaded Half Coupling Dimensions

Size NPS 1/8" to 4" / DN6 to DN100
Pressure Rating Class 3000, 6000
Standard ASME B16.11 and BS3799
Surface Anti-rust Oil or Galvanized
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum

Half Coupling Weight Chart

Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum

Package of Class 3000 Threaded Coupling

Stainless Steel NPT Half Coupling , Anti Rust Oil Half Inch Coupling For Petroleum

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed ASTM A105 Half Coupling into cartons and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of SS 316 Threaded Coupling

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material grade, pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Go/no Go Gauge to test the threads.
  • Test the chemical compositon of ASTM A182 F316.

ASTM A182 F316 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

ASTM A182 F316 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Advantage of NPT Coupling

  • Reasonable Price
  • ISO Certified Quality
  • Fast Delivery
  • Safe Package
  • Reliable Shipment
